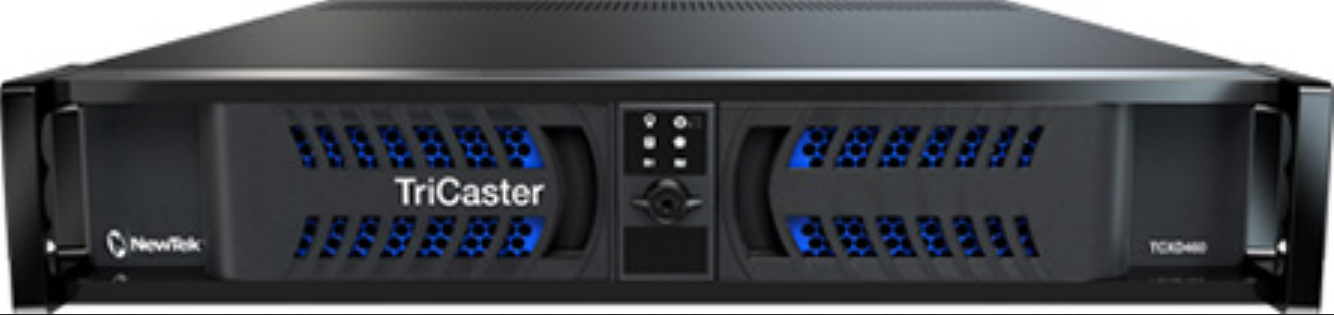

NewTek TC410ALA
TriCaster 410 Without Control Surface

OUR PART #:  TC410ALA

The NewTek TC410ALA Tricaster 410 is an all-purpose, 4-camera video production systems scaled for smaller racks and mobile units.
Learn More

Call for price! Not available online.
List Price: $9,995.00

Similar Products

The NewTek TC410ALA Tricaster 410 is an all-purpose, 4-camera video production systems scaled for smaller racks and mobile units. From live and on-demand programs that look infinitely bigger to engaging social and second-screen experiences, create multi-platform productions to open up more revenue opportunities and extend your brand.

NewTek TC410ALA Features:

  • 4-camera, 4-M/E 16-channel video switcher
  • Integrated audio mixer, media players, titles, graphics, and DVE effects
  • Versatile 2U rackmount frame
  • Either all-digital SDI I/O, or mix-and-match analog and digital SD/HD

NewTek TC410ALA Specifications:

  • Switcher Channels: 16 – 6 external, 6 internal, 4 M/E buses
  • Video Input: Four simultaneous live video sources over SDI, in any combination of supported resolutions and frame rates (including PsF selections)
    • Per-input format configuration, scaler (including 3:2 intelligent pull-down) and frame synchronizer enabling intermixing of formats
    • Per-input color correction, crop and LiveMatte keyer controls
    • Support for Key + Fill input pairing
  • Media: Five integrated digital media sources for video, graphics and sounds (2 DDRs, 2 GFX and Sound) + 15 buffers
  • Video Output:
    • Two SDI
    • HDMI output
    • Two supplemental display ports (1 x VGA and 1 x video-only HDMI) for additional displays or projectors
    • Network output for live streaming
    • A/V output to network-connected TriCaster over local network
  • Audio Inputs:
    • Four SDI Embedded
    • Two Balanced XLR (Line)
    • Two Balanced 1/4” (Line)
  • Audio Outputs:
    • Two SDI Embedded
    • Two Balanced XLR
    • Two Balanced 1/4” (AUX)
    • Stereo 1/4” (phones)
  • A/V Standards:
    • HD-SDI video conforms to SMPTE 292M
    • SD video conforms to SMPTE 259M and ITU-R BT.656
    • Analog audio levels conform to SMPTE RP-155
  • Playback Media Formats: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG (1, 2, all profiles, program or transport streams), MP4, WMV, WebM, PSD, PNG, TGA, BMP, JPEG, EXR, RAW, TIF, AIFF, MP3, WAV, and more, with Import Media application for batch import with optional transcoding of files (including Apple ProRes)
  • MIDI Control: Support for standard MIDI protocol enabling third-party MIDI device control of TriCaster operations via macros
  • Dimensions: 19.0" x 3.5" x 21.5" (48.3 x 8.9 x 54.6 cm)
  • Electrical:
    • Voltage (volts): 100/240
    • Current (amps): 8/4(11.8 kg)
    • Frequency (Hz): 47/63
    • Power (watts): 430 MAX
