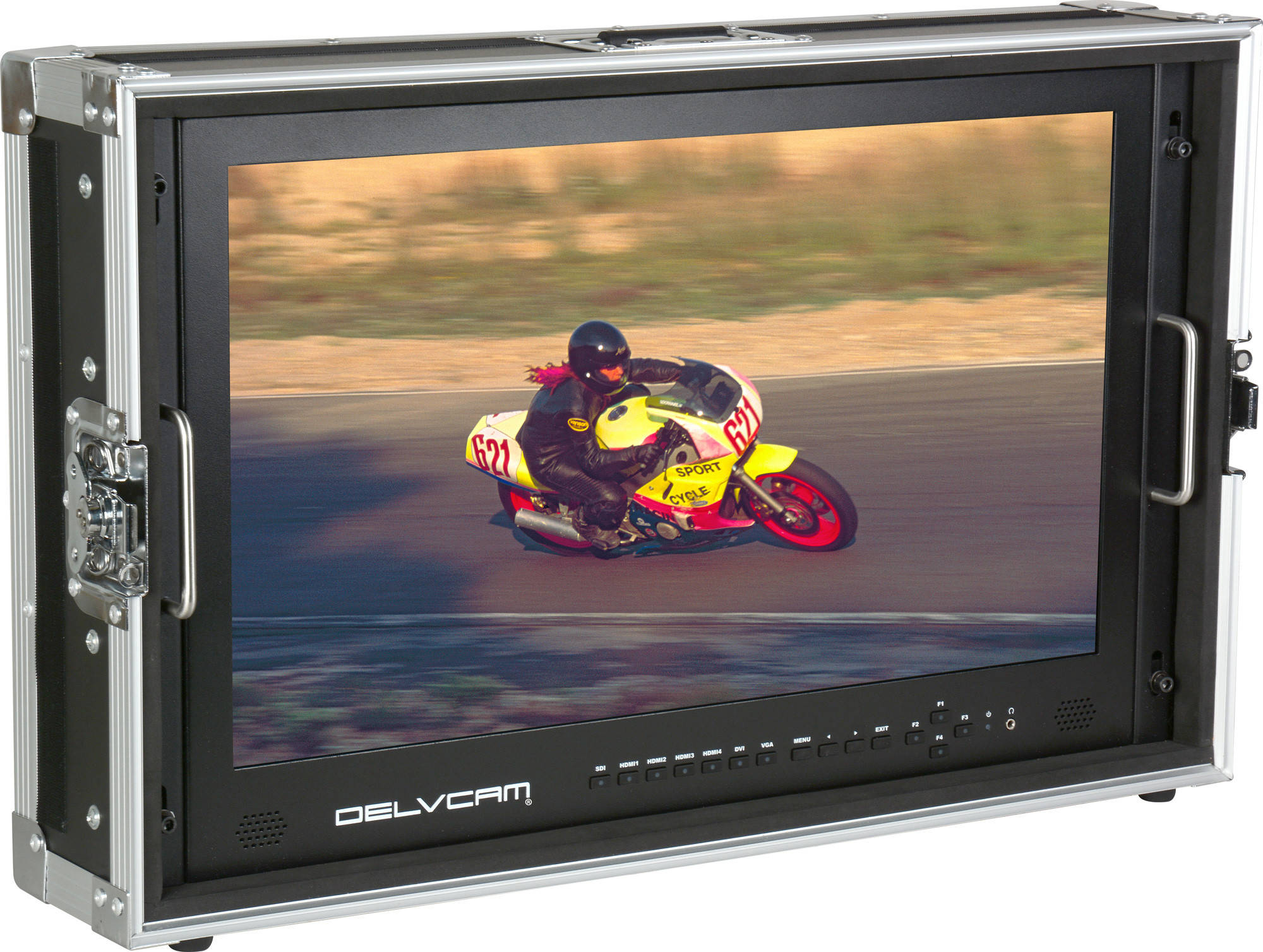

Delvcam DELV-4KSDI24 4K UHD HDMI Multi-Format Quad, LED Broadcast Monitor

The Delvcam DELV-4KSDI24 4K UHD LED broadcast monitor features a 24-inch screen with multiple viewing options, including built-in quad and multiview, as well as a high contrast display for the ultimate cinematic experience. With multiple interfaces including 3G-SDI, HDMI, VGA, DVI and audio, this monitor is ideal for ENG news crews, TV stations, production studios, and directors in live and post production applications.

The 3840x2160 resolution supports 4K UHD signals with a 16:9 LED display and 170° wide viewing angles for consistent images from any perspective. The high contrast display creates rich colors and sharp, detailed images. The monitor is mounted in a removable reinforced case that features a hinged, lockable door for access to the back of the monitor.

Delvcam DELV-4KDI24 Includes:

• Collapsible Sunshade
• Carrying Case
• 15V 4-Pin XLR Power Adapter
• Battery Plate Bracket
• V-mount with Power Cable
• TALLY Connector Kit

Delvcam DELV-4KDI24 Features:

• 24" Viewing Screen
• Multiple Viewing Options - Full Screen, Split, Quad
• Multiple Interfaces
• 3G-SDI Input
• Four HDMI Inputs: 1-4K, 3-1080P
• High Contrast
• Removable carrying case for 100x100 & 75x75 VESA mount

Delvcam DELV-4KDI24 Specifications:

• Aspect Ratio: 16:9
• Brightness: 450/cd/m²
• Contrast: 1000:1
• Viewing Angle: 170°/160°(H/V)
• Native Resolution: 4K, 3840x2160
• Special Functions: Tally Interface, Check Field, Image Flip, Overscan, Underscan, Image Freeze, Color Temperature, User
• Definable Function Buttons
• Image Control: Peaking, Split Screen, Quad View, User Adjustable Markers
• Input:
  • 3G-SDI
  • HDMI 2.0 (4K)
  • Three HDMI 1080P
  • DVI
  • VGA
  • Audio
• Loop Out: 1 3G-SDI
• Screen/Size: 28" LED
• Audio: Two Speakers (L/R), Earphone Jack
• Mount: 100x100 & 75x75 VESA Mount
• Power Consumption: 48W
• Input Current; 2800mA
• Input Voltage: DC 12/24V(XLR)
• Dimensions: 22.4" x 14.82" x 1.77"
  • 26.2" x 16.38" x 6.8" with case
• Weight: 18.96lbs
  • 37.7lbs with case
