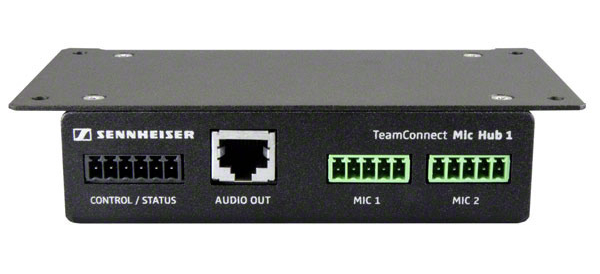

Sennheiser SL-MIC-HUB-1
Microphone Hub For (4) Microphones


The Sennheiser SL Mic Hub 1 simplifies the cabling for integrated audio conference systems.
Learn More
Our Price: $279.95
List Price: $349.95
You save 20%!
Write the first review.
Sennheiser SL-MIC-HUB-1
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Sennheiser SL Mic Hub 1 simplifies the cabling for integrated audio conference systems. It reduces the amount of cables that have to be integrated by a significant amount by bundling up the audio signals into a single Cat 5 cable.

Sennheiser SL Mic Hub 1 Includes:

  • (1) SL Mic Hub 1
  • (1) Control cable 3 m, 6-pin / 6-pin Terminalconnector
  • (1) Adapter cable 30 cm, RJ 45 / 12-pin Terminalconnector
  • Leaflet

Sennheiser SL Mic Hub 1 Features:

  • Can connect up to 4 microphones
  • Can connect mute and hook switch
  • Plug & play connection
  • Bundles up 4 audio signals into a standard Cat5 cable
  • Distributes logic signals to TeamConnect Combox
  • Can be cascaded

Sennheiser SL Mic Hub 1 Specifications:

  • Dimensions: 14.4 x 7.63 x 3.15 cm (5.67 x 3 x 1.24")
  • Power Supply:
    • The SL Mic Hub 1 ist connected to the TeamConnect Combox CB1 via a 6-pin terminal connector cable. The Combox delivers the necessary power supply to operate the bi-color status LEDs of the mute button MAS 1 TC and the hook button MAS 2 TC. The Combox supplies sufficient power for up to 5 MAS 1/2 buttons. If you want to use more than 5 buttons in your setup, you need to connect an external power supply (5 V, >100 mA, recommended Sennheiser Power supply Art.-No. 534480) to pin 6 and 7 of the MUTE socket.
  • Housing: metal
  • Ports:
    • (4) Mic: 5-pol Terminal connector
    • (2) Connect/Status: 6-pol Terminal connector
    • (1) Mute: 7-pol Terminal connector
    • (1) Audio: RJ45
