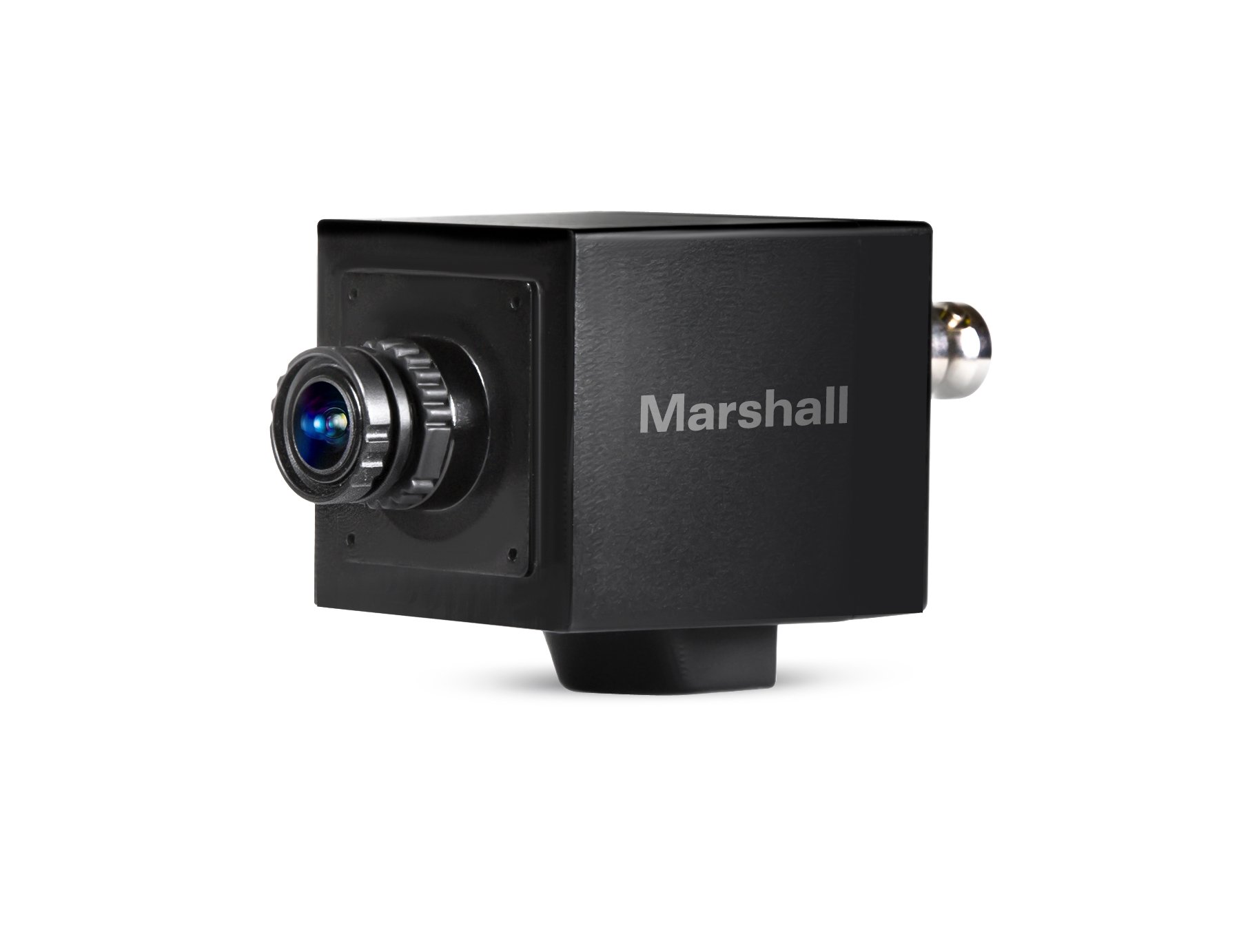

Marshall Electronics CV505-MB
2.5MP Mini Broadcast POV Camera with Stereo TRS Audio Input

OUR PART #:  CV505-MB

The CV505-MB, from Marshall Electronics, is a full-HD (3G/HD-SDI, HDMI) 2.5MP mini-broadcast POV camera with 3.7mm lens and interchangeable lens mount.
Learn More
Our Price: $499.00
List Price: $699.00
You save 29%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics CV505-MB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The CV505-MB, from Marshall Electronics, is a full-HD (3G/HD-SDI, HDMI) 2.5MP mini-broadcast POV camera with 3.7mm lens and interchangeable lens mount. Marshall's next-generation Miniature CV505 Cameras add the convenience of a 3.5mm TRS Mic Input (2.5V) (audio embedding) with 2.5V power to microphone and broadcast convenient HDSDI/3GSDI (BNC) & HDMI (v1.3) simultaneous outputs. Built around next generation chip sets and a state-of-the-art 1/3" megapixel sensor improves every aspect of previous models. Capturing broadcast quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p at frame-rates of 59.94/29.97fps.

Marshall Electronics CV505-MB Features:

  • 2.5 Megapixel 1/3" CMOS Sensor
  • 3.7mm Megapixel M12 Prime Lens installed (interchangeable - additional lenses sold separately)
  • Resolution: 1920x1080p59.94/29.97, 1920x1080i59.94,1280x720p59.94/29.97fps
  • 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel
  • Lemo-style (I/O) connector contains: RS-485(+/-), 12V power connector and TRS microphone input with 2.5V power
  • Captures sharp and vivid color images at 0.2 lux (low light sensitive)
  • WDR function supports high speed and high sensitivity to various light sources
  • Audio Mic Input (TRS) embedding with 2.5V power supplied (embeds 3G/HDSDI & HDMI)
  • OSD Menu Joystick, RS-485 connectable (Pelco/Visca)
  • Free Downloadable Software Control
  • Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust

Marshall Electronics CV505-MB Specifications:

  • Sensor:
    • Image Sensor: 1/3" Progressive CMOS (Approx. 2.1 mega)
    • Scanning System: 16:9 Progressive
    • Sync. System: Internal
    • Effective Pixel: 1920 (H) x 1080 (V)
    • Min. Illumination: 0.2 Lux (Day), 0.1 Lux (Night), 0.005 Lux (DSS on)
    • Horizontal Resolution: 1000TVL
  • Lens: 3.7mm (M12 mount) - interchangeable (additional lenses sold separately)
  • Back Light Compensation: WDR (Wide Dynamic Range) /BLC (Back Light Compensation), HLC (High Light Compensation)
  • Exposure: Auto / Manual
  • White Balance: Auto (3,000°K~8,000°K) /ATW(1,900°K~11,000°K) / Manual
  • Day & Night System: AGC (Auto Gain Control) /TDN(ICR)
  • Electronic Shutter:
    • NTSC: 1/30~1/30000
    • PAL: 1/25~1/30000, DSS (~X64)
  • Functions: Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W
  • Video Outputs:
    • 3G-SDI (+optional Audio), HD-SDI (+optional Audio):
      • SMPTE 424M (2.97Gbps):
        • 1920x1080p @ 59.94fps
      • SMPTE 292M (1.485Gbps):
        • 1920x1080p @ 29.97
        • 1920x1080i @ 59.94
        • 1280x720p @ 59.94/29.97fps
    • HDMI (+Audio) Output (HDMI type A female):
      • HDMI 1.3 compliant
        • 1920x1080p @ 59.94fps >1920x1080p @29.97 (-MB/-CSB) >1920x1080i @ 59.94 >1280x720p @ 59.94/29.97
  • MIC Input:
    • Microphone Level (1Vrms): 2.5V Microphone bias
    • 16-, 20-, 24-, 32-bits audio format. 48KHz sample rates
    • Gain: -12dB ~ 59.5dB
  • Control Interface:
    • RS-485:
      • PELCO-P/D, SONY-VISCA protocol
      • 8-bits data, 1 stop bit, no parity, 2400~115200bps
  • Operation Temperature: -10°C ~ 50°C
  • Power Input: 12VDC (7V to 15VDC), power supply included
  • Power consumption: Max 6W
  • Dimensions (WxHxD): 36 x 36 x 45mm
  • Weight (Net): Approx. 140g
  • Camera Control Software Interface Screen Capture:

The Marshall Electronics CV502-WPM is great for applications where weather becomes a factor; outdoor sporting events, nature observation, weather coverage, news coverage, reality TV, mobile broadcast, or any outdoor application where mother nature has an influence. Utilizing new state of the art 1/3" high speed sensor packing 2,476,296 pixels (2.5 Megapixels) of clear, crisp video capture through full sized 3G/HD-SDI (BNC) outputs at resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/50/30/25 fps. Its proprietary pixel technology offers the lowest noise ratio on the market today, capturing sharp, vivid color images in very low light conditions, as low as 0.05 lux. Industry-leading low power consumption draws very low power in full 1920x1080p60/50fps modes. The CV502-WPM Pro-Series POV Camera continues to offer Field-of-View flexibility with interchangeable lenses and convenience of HD-SDI outputs, plus its RS485 connect-ability offers remote camera control communication via SONY VISCA or PELCO protocols.

Applications:

  • Broadcast Television
  • Professional Sports
  • College Sports
  • OB Vans/Trucks
  • Concert & Studio Music Video
  • Reality TV
  • Performing Arts
  • Culinary Shows
  • Car TV Shows
  • Hidden Camera Shows
  • International Racing Circuits
  • Off-road Racing
  • Horse Racing
  • House of Worship
  • POV Video Shots

Marshall Electronics CV502-WPM Features:

  • 2.5 Megapixel 1/3" CMOS Sensor
  • Weatherproof IP67 rated Housing for outdoor applications
  • IP67: water protection submerged up to 1m (3.2") - total protection against dust, dirt, sand
  • Resolution: 1920x1080p60/50/30/25, 1920x1080i60/50, 1280x720p60/50/30/25fps
  • 3.7mm HD M12 Lens comes standard - 2.8mm (CV4702.8-3MP-IR) & 6.0mm (CV4706-3MP-IR) also available
  • 3G/HDSDI (BNC) & CVBS (BNC) connections at end of 10ft breakout cable
  • RS-485 (connector) & 12V Power (connector) at end of 10ft breakout cable
  • Captures sharp & vivid color HD images at 0.2 Lux (low-light sensitive)
  • New WDR function supports high speed & high sensitivity to multiple light sources
  • Stepped (Red/Blue) Gain Control, Gamma, Brightness, and Shutter adjust via RS485 (Visca/Pelco)
  • OSD Menu Joystick, RS-485 connectable (Pelco/Visca)
  • Free Downloadable Software Control

Marshall Electronics CV502-WPM Specifications:

  • Sensor:
    • Image Sensor: 1/3" Progressive CMOS (Approx. 2.1 mega)
    • Scanning System: 16:9 Progressive
    • Sync. System: Internal
    • Effective Pixel: 1920 (H) x 1080 (V)
    • Min. Illumination: 0.2 Lux (Color), 0.1 Lux (Black/White), 0.005 Lux (DSS on)
    • Horizontal Resolution: 1000TVL
  • Optics:
    • Lens: CV502 comes with 3.7mm (M12 mount) - interchangeable (other lenses sold separately)
  • Functions:
    • Back Light Compensation: WDR (Wide Dynamic Range)/BLC (Back Light Compensation), HLC (High Light Compensation)
    • Exposure: Auto / Manual
    • White Balance: Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / Manual
    • Day & Night System: AGC (Automatic Gain Control) / True Day/Night auto switch based on light environment (auto/manual) (ICR)
    • Electronic Shutter:
      • NTSC: 1/30~1/30000,
      • PAL: 1/25~1/30000, DSS( ~X64)
    • Functions: Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W
  • Video Outputs:
    • 3G-SDI (+optional Audio) and HD-SDI (+optional Audio):
      • SMPTE 424M (2.97Gbps):
        • 1920x1080p @ 50/60fps
      • SMPTE 292M (1.485Gbps):
        • 1920x1080p @ 25/30
        • 1920x1080i @ 50/60fps
        • 1280x720p @ 60
    • CVBS (BNC): Composite-CVBS (BNC): 700TVL NTSC/PAL
  • Audio Input:
    • MIC Input:
      • Mic Level (1Vrms). 2.5V Microphone bias
      • 16-, 20-, 24-, 32-bits audio format. 48KHz sample rates
      • Gain: -12dB ~ 59.5dB
  • Control Interface:
    • RS-485:
      • PELCO-P/D, SONY-VISCA protocol
      • 8-bits data, 1 stop bit, no parity, 2400~115200bps
  • General:
    • Operation Temperature: -10°C ~ 50°C
    • Power Input: 12VDC (7V to 15VDC) - power supply included
    • Power consumption: Max 6W
    • Dimensions (WxHxD): 37 x 37 x 35 mm
    • Weight (Net): Approx. 140g
  • Camera Control Software Screen Capture:

Free POV Camera Control Application
