Roland M-5000 FREE Pair Of Digital Snakes Offer.
Through June 30th When You Purchase Your Roland MC-5000 From Full Compass You Will Receive Two S2416 Digital Snakes FREE From Roland.... read more

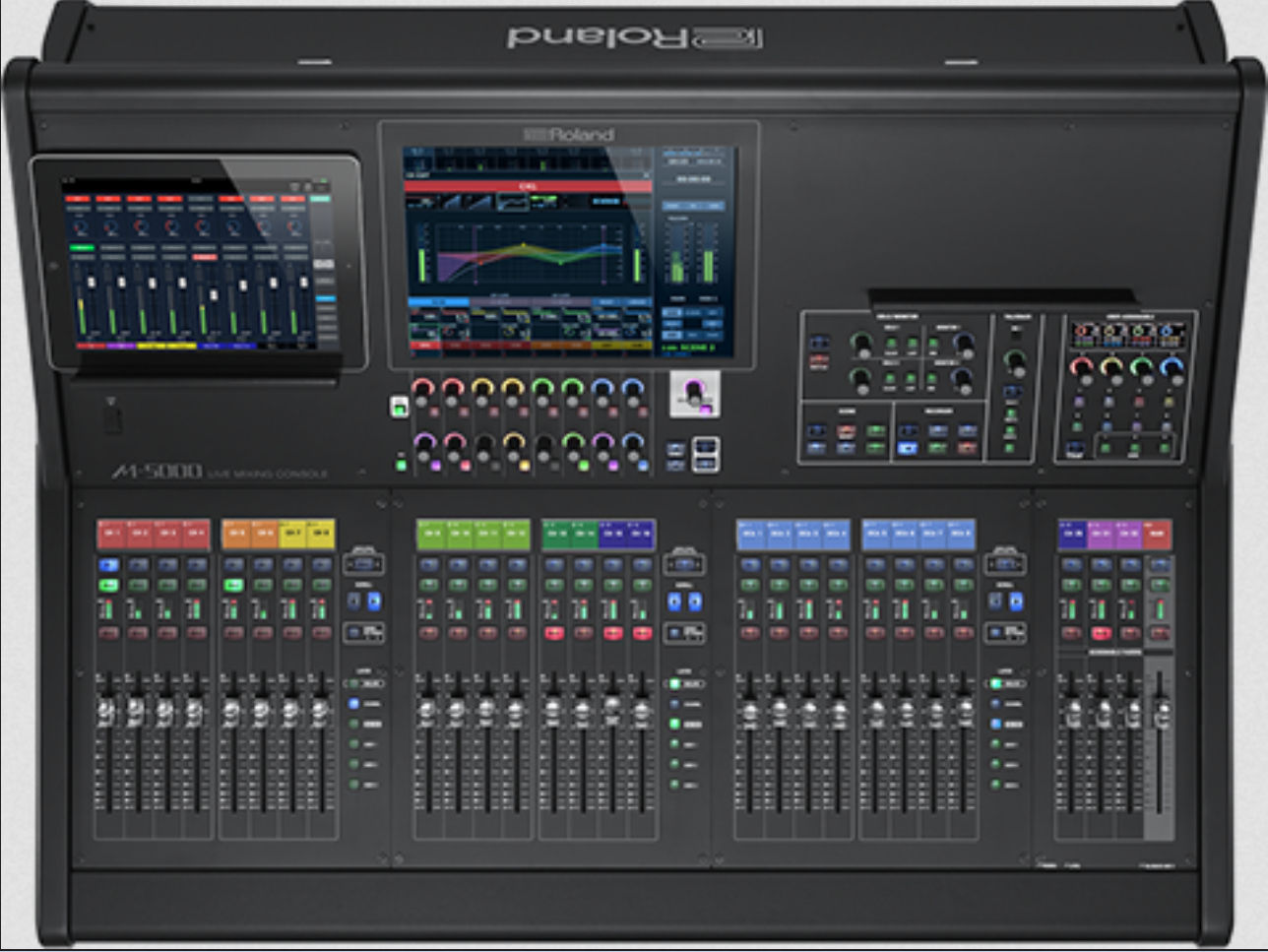

Roland System Group M-5000-PROMO
Live Mixing Console and 2 free S-2416 digital snakes

OUR PART #  M-5000-PROMO

Call for price! Not available online.


The Roland M-5000 console's internal mix architecture is not fixed and can be freely defined within a range of up to 128 input/output channels/busses. This allows you to "build" a console structure based on the immediate needs of the application. This makes for a console that accommodates high levels of flexibility for precise resonse to dynamically changing applications and venues.

Roland M-5000 Includes:

  • Owner's manual
  • Power cord
  • Dock cable
  • Three REAC connector covers
  • Six Ferrite cores
  • Cover
  • Two tablet sheets

Roland M-5000 Features:

  • Set three inputs per channel with full backup support
  • Mono/stereo-settable input/output channels
  • Dynamics and EQ sections that permit reordering
  • Dynamics, Equalizer, and signal delay for both inputs and outputs
  • A Channel Link function that allows up to 12 Group settings
  • Main Out supports 5.1 surround, LCR, and LR. Built-in surround panning and stereo down mix
  • Monitor output supporting 5.1-channel surround
  • Built-in Sub-Group bus
  • 24 DCAs
  • Mix-Minus function
  • Eight MUTE groups
  • Eight stereo multi-effects
  • Two selectable Solo systems
  • Solo In Place function
  • 32 graphic and parametric equalizers
  • Two audio analyzers
  • System layout using the built-in REAC master/slave modes
  • Talkback settings for up to three locations

Roland M-5000 Specifications:

  • Mixing Channels: Up to 128 CH (combination of INPUT CHANNEL, MAIN, SUBGROUP, AUX, MIX-MINUS, MATRIX, MONITOR, COMM, OSC, HEADPHONES)
  • Inputs:
    • Max 300 ports (96 kHz), Max 460 ports (48 kHz / 44.1 kHz)
    • CONSOLE: 16  .AES/EBU: 4 .REAC: 40 x 2
    • EXPANSION SLOT: 80 x 2 (96 kHz), 160 x 2 (48 kHz / 44.1 kHz)
    • USB AUDIO: 16 .DOCK: 2 .USB RECORDER: 2
    • FX 1L-8R: 16 .TALKBACK: 2 .OSC: 2
  • Outputs:
    • AES/EBU: 4
    • Two REAC: 40
    • USB AUDIO: 16
    • EXPANSION SLOT: Two 80 (96 kHz), two 160 (48 kHz / 44.1 kHz)
    • USB AUDIO: 16
    • DOCK: 2
    • USB RECORDER: 2
    • FX 1L-8R: 16
    • Max 296 ports (96 kHz), Max 456 ports (48 kHz / 44.1 kHz)
    • CONNSOLE: 16
  • Internal Processing: 72 bits (fixed point, bus summing)
  • Signal Processing:
    • AD/DA Conversion: 24 bit
    • Sampling Rate: 96 kHz, 48 kHz, 44.1 kHz
  • Console Latency:
    • Network Latency: 1.6 ms (typ.)
    • Console Latency: 1.1 ms (typ.)
  • Connectors:
    • INPUT jacks (1 - 16): XLR-3-31 type (balanced, phantom power)
    • TALKBACK MIC 2 jack: XLR-3-31 type (balanced, phantom power)
    • AES/EBU IN jacks (1/2, 3/4): XLR-3-31 type
    • PHONES 1 jack: Stereo 1/4" phone type
    • PHONES 2 jack: Stereo miniature phone type
    • AES/EBU OUT jacks (1/2, 3/4): XLR-3-32 type
    • REAC ports (A, B, SPLIT/BACKUP): RJ-45 EtherCon type, REAC SPLIT/BACKUP port supports REAC EMBEDDED POWER
    • WORD CLOCK connector (IN, OUT): BNC type
    • RS-232C connector: DB-9 type
    • MIDI connector (OUT/THRU, IN)
    • USB port (MEMORY): USB type A
    • USB WLAN ADAPTOR port: USB type A
    • USB COMPUTER port: USB type B
    • LAN port: RJ45 type
    • DOCK CABLE port: 10-pin mini DIN type
    • GP I/O port: DB-25 type
    • FOOT SWITCH jacks (1, 2): 1/4-inch TRS phone type V/500 mA
    • EXT.POWER DC IN jack: XLR-4-32 type
    • OUTPUT jacks (1 - 16) : XLR-3-32type (balanced)
    • LAMP jacks: XLR-4-31 type × 2, LAMP power DC+12 V/500 mA
  • Frequency Response:
    • PHONES jacks (1, 2): -2 dB / +0 dB (32 ohms load, 150 mW, 20 Hz to 40 kHz)
    • OUTPUT jacks (1 - 16): -2 dB / +0 dB (20k ohms load, +4 dBu, 20 Hz to 40 kHz)
  • Display:
    • Graphic color LCD 800 x 600 dots (touch screen)
    • Graphic organic light emitting display 256 x 64 dots:
      • Seven Fader Bank Display
      • User Assignable Display
  • Power Consumption: 180 W
  • Dimensions (WxDxH): 36-13/16" x 28-9/16" x 13-5/8"(934 x 725 x 346 mm)
  • Weight: 79 lbs 6 oz (36 kg)
  • Operation Temperature: 41° - 104°F (5°-40°C)

Roland M-5000 FREE Pair Of Digital Snakes Offer.

Through June 30th When You Purchase Your Roland MC-5000 From Full Compass You Will Receive Two S2416 Digital Snakes FREE From Roland.

That's a $5990 Value!

For information on the S2416 check out the product page.

For more information on this offer and other Roland products please contact your Sale Pro at 800-356-5844.

Roland M-5000 FREE Pair Of Digital Snakes Offer.
Offer good between 07/13/2016 and 06/30/2017 Leran More About the M-5000!

Roland System Group M-5000-PROMO
Live Mixing Console and 2 free S-2416 digital snakes

OUR PART #  M-5000-PROMO

Product Information:

The Roland M-5000 console's internal mix architecture is not fixed and can be freely defined within a range of up to 128 input/output channels/busses. This allows you to "build" a console structure based on the immediate needs of the application. This makes for a console that accommodates high levels of flexibility for precise resonse to dynamically changing applications and venues.

Roland M-5000 Includes:

  • Owner's manual
  • Power cord
  • Dock cable
  • Three REAC connector covers
  • Six Ferrite cores
  • Cover
  • Two tablet sheets

Roland M-5000 Features:

  • Set three inputs per channel with full backup support
  • Mono/stereo-settable input/output channels
  • Dynamics and EQ sections that permit reordering
  • Dynamics, Equalizer, and signal delay for both inputs and outputs
  • A Channel Link function that allows up to 12 Group settings
  • Main Out supports 5.1 surround, LCR, and LR. Built-in surround panning and stereo down mix
  • Monitor output supporting 5.1-channel surround
  • Built-in Sub-Group bus
  • 24 DCAs
  • Mix-Minus function
  • Eight MUTE groups
  • Eight stereo multi-effects
  • Two selectable Solo systems
  • Solo In Place function
  • 32 graphic and parametric equalizers
  • Two audio analyzers
  • System layout using the built-in REAC master/slave modes
  • Talkback settings for up to three locations

Roland M-5000 Specifications:

  • Mixing Channels: Up to 128 CH (combination of INPUT CHANNEL, MAIN, SUBGROUP, AUX, MIX-MINUS, MATRIX, MONITOR, COMM, OSC, HEADPHONES)
  • Inputs:
    • Max 300 ports (96 kHz), Max 460 ports (48 kHz / 44.1 kHz)
    • CONSOLE: 16  .AES/EBU: 4 .REAC: 40 x 2
    • EXPANSION SLOT: 80 x 2 (96 kHz), 160 x 2 (48 kHz / 44.1 kHz)
    • USB AUDIO: 16 .DOCK: 2 .USB RECORDER: 2
    • FX 1L-8R: 16 .TALKBACK: 2 .OSC: 2
  • Outputs:
    • AES/EBU: 4
    • Two REAC: 40
    • USB AUDIO: 16
    • EXPANSION SLOT: Two 80 (96 kHz), two 160 (48 kHz / 44.1 kHz)
    • USB AUDIO: 16
    • DOCK: 2
    • USB RECORDER: 2
    • FX 1L-8R: 16
    • Max 296 ports (96 kHz), Max 456 ports (48 kHz / 44.1 kHz)
    • CONNSOLE: 16
  • Internal Processing: 72 bits (fixed point, bus summing)
  • Signal Processing:
    • AD/DA Conversion: 24 bit
    • Sampling Rate: 96 kHz, 48 kHz, 44.1 kHz
  • Console Latency:
    • Network Latency: 1.6 ms (typ.)
    • Console Latency: 1.1 ms (typ.)
  • Connectors:
    • INPUT jacks (1 - 16): XLR-3-31 type (balanced, phantom power)
    • TALKBACK MIC 2 jack: XLR-3-31 type (balanced, phantom power)
    • AES/EBU IN jacks (1/2, 3/4): XLR-3-31 type
    • PHONES 1 jack: Stereo 1/4" phone type
    • PHONES 2 jack: Stereo miniature phone type
    • AES/EBU OUT jacks (1/2, 3/4): XLR-3-32 type
    • REAC ports (A, B, SPLIT/BACKUP): RJ-45 EtherCon type, REAC SPLIT/BACKUP port supports REAC EMBEDDED POWER
    • WORD CLOCK connector (IN, OUT): BNC type
    • RS-232C connector: DB-9 type
    • MIDI connector (OUT/THRU, IN)
    • USB port (MEMORY): USB type A
    • USB WLAN ADAPTOR port: USB type A
    • USB COMPUTER port: USB type B
    • LAN port: RJ45 type
    • DOCK CABLE port: 10-pin mini DIN type
    • GP I/O port: DB-25 type
    • FOOT SWITCH jacks (1, 2): 1/4-inch TRS phone type V/500 mA
    • EXT.POWER DC IN jack: XLR-4-32 type
    • OUTPUT jacks (1 - 16) : XLR-3-32type (balanced)
    • LAMP jacks: XLR-4-31 type × 2, LAMP power DC+12 V/500 mA
  • Frequency Response:
    • PHONES jacks (1, 2): -2 dB / +0 dB (32 ohms load, 150 mW, 20 Hz to 40 kHz)
    • OUTPUT jacks (1 - 16): -2 dB / +0 dB (20k ohms load, +4 dBu, 20 Hz to 40 kHz)
  • Display:
    • Graphic color LCD 800 x 600 dots (touch screen)
    • Graphic organic light emitting display 256 x 64 dots:
      • Seven Fader Bank Display
      • User Assignable Display
  • Power Consumption: 180 W
  • Dimensions (WxDxH): 36-13/16" x 28-9/16" x 13-5/8"(934 x 725 x 346 mm)
  • Weight: 79 lbs 6 oz (36 kg)
  • Operation Temperature: 41° - 104°F (5°-40°C)

Roland M-5000 FREE Pair Of Digital Snakes Offer.

Through June 30th When You Purchase Your Roland MC-5000 From Full Compass You Will Receive Two S2416 Digital Snakes FREE From Roland.

That's a $5990 Value!

For information on the S2416 check out the product page.

For more information on this offer and other Roland products please contact your Sale Pro at 800-356-5844.

Roland M-5000 FREE Pair Of Digital Snakes Offer.
Offer good between 07/13/2016 and 06/30/2017 Leran More About the M-5000!
