Juice Goose CQ1515 CQ-1515

OUR PART #: CQ1515 MFR #: CQ1515

Copied to clipboard

The CQ-1515 from Juice Goose is a single space rack mount device featuring (7) AC power outputs on the rear of the chassis with a combined rating of 15 amps. ...Read more

Juice Goose CQ1515 CQ-1515 Image 1
Juice Goose CQ1515 CQ-1515 Image 2
Juice Goose CQ1515 CQ-1515
Our Price: $520.00
List Price: $578.00
You save 10%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The CQ-1515 from Juice Goose is a single space rack mount device featuring (7) AC power outputs on the rear of the chassis with a combined rating of 15 amps. One output is unswitched. The remaining (6) outputs are grouped into (3) Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have Juice Goose quality surge and spike protection and line noise filtration.

Because the CQ-1515 has a self contained sequencing circuit, it can be the primary or secondary in a power sequencing system. Eight wire RJ-45 cable can be connected to this unit's Signal Input and/or Signal Output connectors to link it's operations with other CQ or control devices.

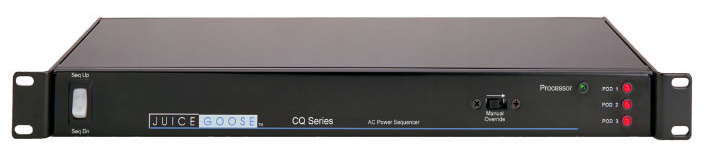

This product features LEDs on the front of the chassis for real time monitoring of the processor and sequencing functions. A green flashing LED indicates the continuing operation of the processor that controls and drives the sequencer. Individual red LEDs are tied to the output of each of the relays. Each LED lights when its relay latches. The LED can only be on when the relay is latched.

Great for "front of house" applications or anywhere AC power protection is needed for low current equipment, the CQ-1515 provides AC line protection across hot, neutral and ground with a multi-stage line filter and a three way surge protection matrix.

Note

NOTE: For technical specifications, please view the data sheet located on the Documentation tab.
