Neutrik NE8FDV-B

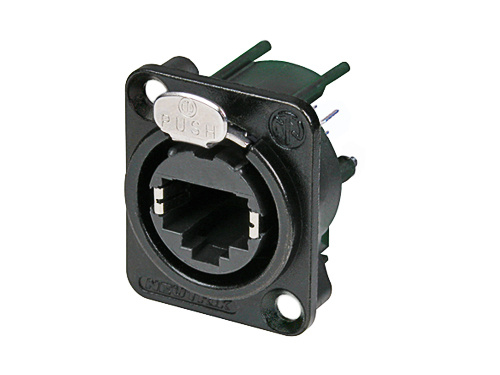

Vertical PCB Panel Mount etherCON D-Series RJ45 Receptacle, Black


Neutrik's NE8FDV-B is vertical PCB panel mount RJ45 connector, featuring a black D-shape metal flange with latch lock.
Learn More
Sale Price: $4.17
List Price: $5.20
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Neutrik NE8FDV-B
Similar Products

Neutrik's NE8FDV-B is vertical PCB panel mount RJ45 connector, featuring a black D-shape metal flange with latch lock.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is well-suited for panel mount and installer market applications.

Neutrik NE8FDV-B Panel Mount RJ45 Connector Features:

  • Accommodates NE8MC or any standard RJ45 plug
  • Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Ground-panel connection
  • Max. panel thickness of 4mm
  • Mounting screws not included

Neutrik NE8FDV-B Panel Mount RJ45 Connector Specifications:

Electrical Specifications:

  • Frequency bandwidth: 1 - 100 MHz
  • Rated current per contact: 1.5 A
  • Rated voltage: < 50V
  • Dielectric strength: 1 kVdc
  • Contact resistance: < 10 mOhms
  • Insulation resistance: > 0.5 GOhms
  • Transmission performance: Class D

Mechanical Specifications:

  • Insertion force: < 20N
  • Withdrawal force: < 20N
  • Lifetime: > 1000 mating cycles
  • Retention method: Latch lock
  • Panel thickness: max. 4 mm
  • Wiring: Vertical PCB mount
  • Chassis shape: D

Material Specifications:

  • Insert: PBTP 15% GR
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
  • Contacts: Bronze (CuSn8)
  • Contact plating: 0.2 µm Au over Ni plating
  • Temperature range: -30°C to +80°C
