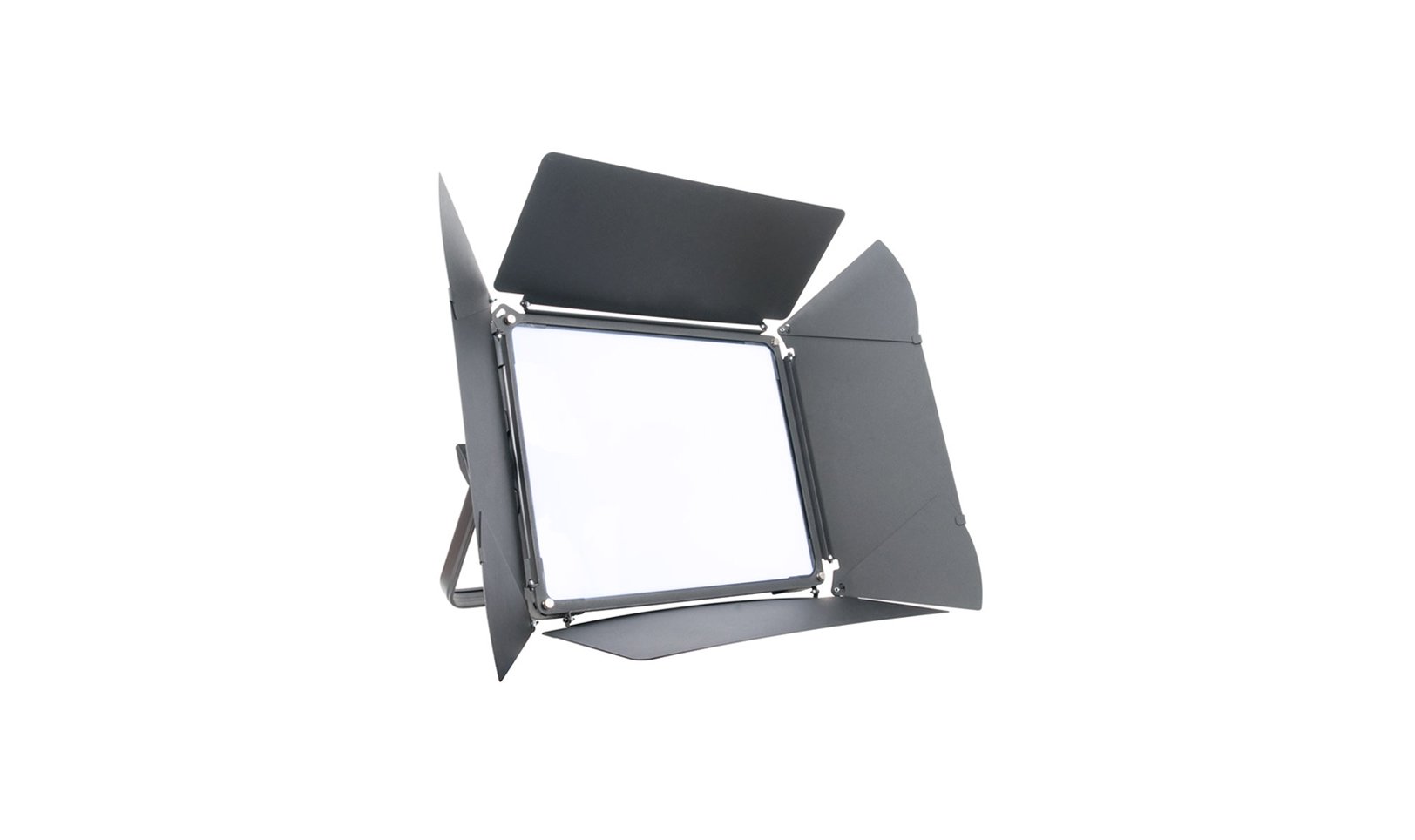

Elation Pro Lighting TVL-PANEL-DW
100W Dynamic White Softlight, 3K-6K with Barndoors

OUR PART #:  TVL-PANEL-DW

The Elation Professional TVL Panel DW™ is a soft light luminaire featuring 480 cool white and 480 warm white LEDs,  =95CRI, 150° beam angle...
Learn More
Our Price: $1,520.00
List Price: $1,900.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elation Pro Lighting TVL-PANEL-DW
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Elation Professional TVL Panel DW™ is a soft light luminaire featuring 480 cool white and 480 warm white LEDs,  =95CRI, 150° beam angle, 8-leaf adjustable / removable barn doors, linear white color temperature range (3000K - 5400K), smooth 16bit dimming and dimming curve effects, 5pin DMX and powerCON TRUE 1 connections, four button menu control panel, dimmer and color temperature rotary control dials, 180° reversible LCD menu display, multiple unit power linking, a multi-voltage universal auto switching power supply (100-240v), and an optional DC24v external battery is available.

NOTE: This product is currently available for pre-order ONLY. Placing a pre-order ensures that you will receive your unit as soon as it's available. Please contact your Sales Pro for more information.

Elation Pro Lighting TVL-PANEL-DW Features:

  • Dynamic White 150° Beam TVL Panel Soft Light
  • Linear White Color Temp Range (3000K - 5400K)
  • Smooth 16bit Dimming and Dimming Curve Effects
  • Dimmer and Color Temperature Rotary Control Dials
  • Flicker Free Operation for TV and FILM
  • 8-Leaf Adjustable / Removable Barn Doors Included
  • Optional DC24v External Battery Available

Elation Pro Lighting TVL-PANEL-DW Specifications:

  • SKU: TVL481
  • Source: 480 Cool White and 480 Warm White LEDs =95CRI
  • Photometric Date: pending
  • Effects:
    • Selectable Dimming Curves and Electronic Strobe
    • Linear Variable White Color Temp Presets
  • Color:
    • Cool White / Warm White
    • Linear Variable Color Temperature (3,000 - 5400K)
  • Control/Connections:
    • Multiple DMX Channel Modes
    • Four Button Control Panel
    • Two Rotary Control Dials (Dimmer and Color Temperature)
    • 180° Reversible LCD Menu Display
    • 5pin DMX In/Out
    • powerCON TRUE 1 Power In
    • 24VDC Input (optional external battery - sold separately)
  • Electrical/Thermal:
    • AC 100-240V - 50/60Hz
    • Max Power Consumption: pending
    • 5°F to 113°F (-15°C to 45°C)
  • Approvals/Ratings: CE | RoHs | IP20
