Cables To Go Trulink USB 2.0 Over Cat5 Superbooster

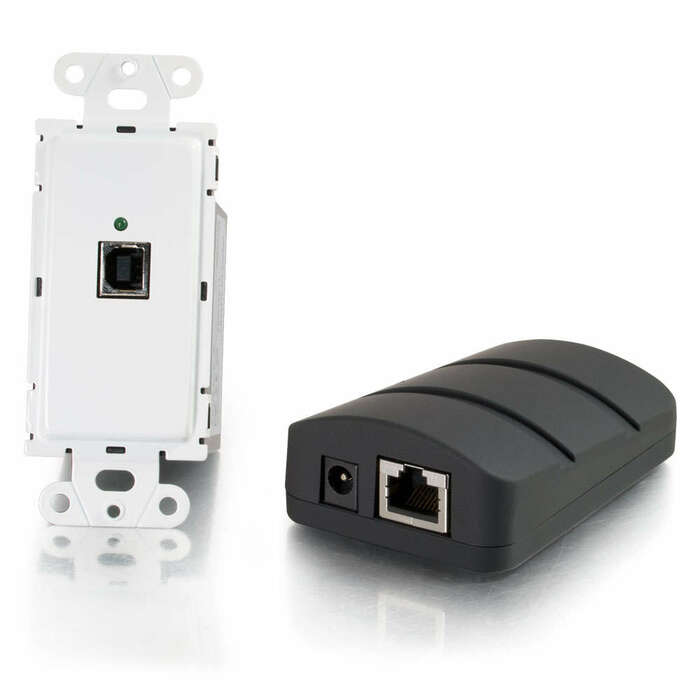

Wall Plate Transmitter to Dongle Receiver Kit

OUR PART #:  53878

The Trulink® USB 2.0 Superbooster from Cables To Go was designed for systems integrators...
Learn More
Our Price: $396.84
List Price: $519.99
You save 24%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Cables To Go Trulink USB 2.0 Over Cat5 Superbooster
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Trulink® USB 2.0 Superbooster from Cables To Go was designed for systems integrators, installers and other end users seeking an innovatively simple yet powerful solution for extending USB signals beyond their native 16.4 ft length limitation. Specifically for use in commercial environments, the Trulink USB 2.0 Superbooster is the only USB 2.0 solution on the market that is available in both a dongle and wall plate version. The wall plate and dongle can be interchanged to fit the needs of any installation requiring high performance and maximum flexibility.

Using true USB 2.0 speed and power, this solution provides increased bandwidth and faster data transfer speeds over standard Cat5 cabling at lengths up to 328 ft. Integrated UTP power inserter technology provides 500 milliamps of power when the power adapter is connected through the transmitter end or receiver end, depending on the desired configuration. This provides enough power to operate most new USB devices and allows for flexibility in equipment placement.

The single gang decora style wall plates provide the clean look of a professional installation. The small form factor of both the dongle and wall plate versions allows for easy installation in tight spaces. The dongle end is uniquely designed to allow it to be securely tethered to other equipment. Installation is quick and easy with no software or driver installation required.

The Trulink USB 2.0 Superbooster utilizes TruChoice™ power providing the flexibility to power at either the transmitter or receiver end.

C2G Trulink USB 2.0 Superbooster Includes:

  • (1) Wall Plate Transmitter
  • (1) Dongle Receiver
  • (1) Power Supply
  • (1) Quick Start Guide
  • (1) Phoenix Power Connection
  • (1) 1 ft USB A/B Cable
  • (2) 14" Cable Ties

C2G Trulink USB 2.0 Superbooster Features:

  • Extends USB 2.0 signals up to 328 feet
  • Uses a single standard network patch cable
  • Supplies 500 milliamps of power at the receiver
  • Powered with a single power supply at the transmitter or receiver
  • Kit includes both the transmitter and receiver units

C2G Trulink USB 2.0 Superbooster Specifications:

General Specifications:

  • Product Number: 53878
  • Color: Black
  • Jacket Rating: Standard
  • Warranty: 1 Year
  • Weight: 1.940 lbs
  • Input: (1) USB-B Female, (1) RJ-45 Female
  • Output: (1) RJ-45 Female, (1) USB-A Female
  • USB Specification: USB 2.0
  • USB Data Bandwidth: Up to 480 Mbps
  • Maximum Cable Distance: 328 ft (100m)

Power Specifications:

  • Power Adapter Input: 100 - 240V~50/60Hz
  • Power Adapter Output: 24.0VDC, 1000mA
  • Power Adapter Pin Diameter: 5.5 mm
  • Power Adapter Center Pin Polarity: Positive
  • Power Adapter Cable Length: 12 ft
  • USB Power Output: 5V, 500mA

Physical Specifications:

  • Transmitter Connectors: USB B Female, DC Power Female, RJ45 Female
  • Receiver Connectors: USB A Female, DC Power Female, RJ45 Female
  • Wall Plate Insert Dimensions: 2.6" x 1.18" (66.5 x 30.0 mm)
  • Wall Plate Dimensions: 4.08" x 1.57" x 1.7" (103.6 x 40 x 44 mm)
  • Dongle Dimensions: 3.4" x 2.24" x 1.18" (86 x 57 x 30 mm)
