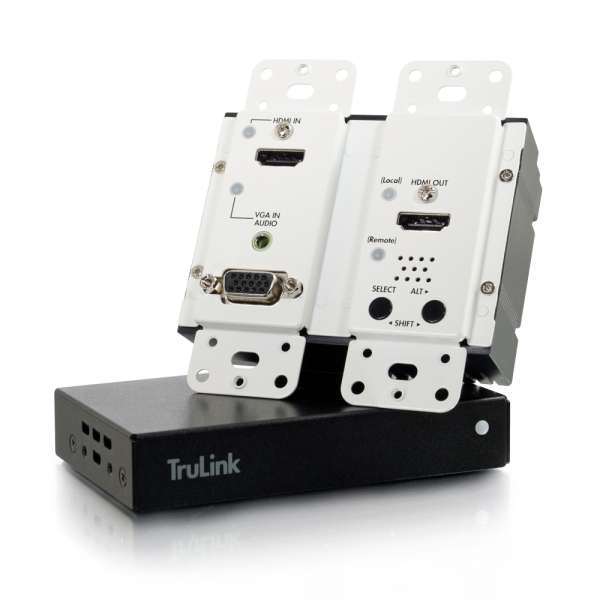

Cables To Go 29218 HDMI and VGA/Stereo Audio to HDMI HDBaseT Extender Kit

The Cables To Go HDMI® and VGA + Stereo Audio to HDMI HDBaseT over Cat5 Extender Kit is a complete solution for extending audio/video signals from a Blu-ray™ player and a laptop to the HDMI input of a projector. This kit extends HDMI, VGA and Stereo Audio signals over a single Cat5/Cat5e/Cat6 unshielded twisted pair network patch cable up to 230 feet at a 1080p resolution. The rear cable connections for the Cat5 cable and the optional serial cable are set at 90°, making connections in a wall box easy. The local HDMI output of the front of the wall plate allows an additional HDMI display to be supported via an HDMI cable. Switching between HDMI and VGA inputs is made easy with three options available. Automatic switching displays the last connected device, manual switching via the button on the front of the wall plate, or Serial RS232 switching which accepts serial commands from a control device, like our TruLink® A/V Controller This solution is compatible with any operating system and is truly plug and play with no drivers or software required. This solution utilizes TruChoice™ power, which allows power to be supplied over the Cat5 cable to both the transmitter and receiver from a single power adapter placed at either the transmitter or the receiver end of the solution. HDBaseT technology supports HDCP and allows the Extended Display Identification Data (EDID) signals, i.e. communication of the display’s capabilities, to pass through the extension solution ensuring that the content from the source is sent at the optimal resolution for the display. Built-in power surge protection and high ground loop immunity ensure high performance signal extension.

Cables to Go 29218 Includes:

• HDMI, VGA, and Stereo Audio Transmitter
• HDMI Receiver
• Face Plate - White
• Terminal Block to DC Jack Adapter
• Power Adapter
• Screw Pack
• 4ft RJ11 Cable
• 4ft RS232 DB9 Cable
• RJ11 to RS232 DB9 Adapter
• HDMI Cable Tie
• User Manual

Cables to Go 29218 Features:

• Perfect for extending audio/video signals from a Blu-ray™ player and a laptop to a projector
• Three methods for input switching: Auto, Manual, and Serial RS232
• TruChoice™ power allows for power at the transmitter or receiver end
• Compatible with any HDBaseT receiver from C2G
• Designed for easy connections in a wall box
• Kit includes both the transmitter and receiver units

Cables to Go 29218 Specifications:

• Color: black
• UPC: 757120292180
• Weight: 3.413 lbs
