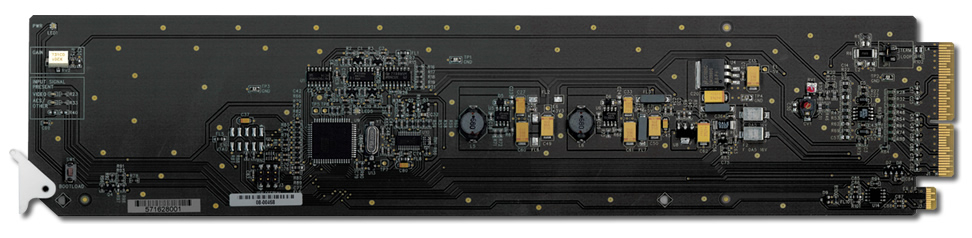

Ross Video Ltd UDA-8705A-R2
1x4 Analog Utility Distribution Amplifier

OUR PART #  UDA-8705A-R2

Our Price: $296.64
List Price: $309.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

The UDA-8705A Analog Utility Distribution Amplifier is a very useful device in HD/SD digital systems where there is a requirement for analog signal distribution. The UDA-8705A is an analog general purpose distribution amplifier in the openGear® platform. Use of this amplifier will avoid the need to purchase a separate analog frame and power supply in digital installations. This amplifier may be used in any application where equalization and a differential input is not required - an excellent device for composite and tri-level sync distribution. The use of new generation integrated circuits and innovative engineering has resulted in excellent performance combined with economy. The -R2S high density split rear module can accommodate up to 2x UDA-8705A cards, each configured as a 1x4 DA. The -R2L offers a 1x8 DA with a passive looping input.

Ross Video Ltd UDA-8705A-R2 Features:

  • 1x4 or analog distribution amplifier
  • DC coupled
  • Wide adjustable gain range of ±3dB
  • Low distortion
  • Excellent isolation between outputs
  • Power to each card is individually fused
  • 20 DAs in OG3-FR
  • 5-year transferable warranty
  • Power: 1.5 watts

Ross Video Ltd UDA-8705A-R2
1x4 Analog Utility Distribution Amplifier

OUR PART #  UDA-8705A-R2

Product Information:

The UDA-8705A Analog Utility Distribution Amplifier is a very useful device in HD/SD digital systems where there is a requirement for analog signal distribution. The UDA-8705A is an analog general purpose distribution amplifier in the openGear® platform. Use of this amplifier will avoid the need to purchase a separate analog frame and power supply in digital installations. This amplifier may be used in any application where equalization and a differential input is not required - an excellent device for composite and tri-level sync distribution. The use of new generation integrated circuits and innovative engineering has resulted in excellent performance combined with economy. The -R2S high density split rear module can accommodate up to 2x UDA-8705A cards, each configured as a 1x4 DA. The -R2L offers a 1x8 DA with a passive looping input.

Ross Video Ltd UDA-8705A-R2 Features:

  • 1x4 or analog distribution amplifier
  • DC coupled
  • Wide adjustable gain range of ±3dB
  • Low distortion
  • Excellent isolation between outputs
  • Power to each card is individually fused
  • 20 DAs in OG3-FR
  • 5-year transferable warranty
  • Power: 1.5 watts
