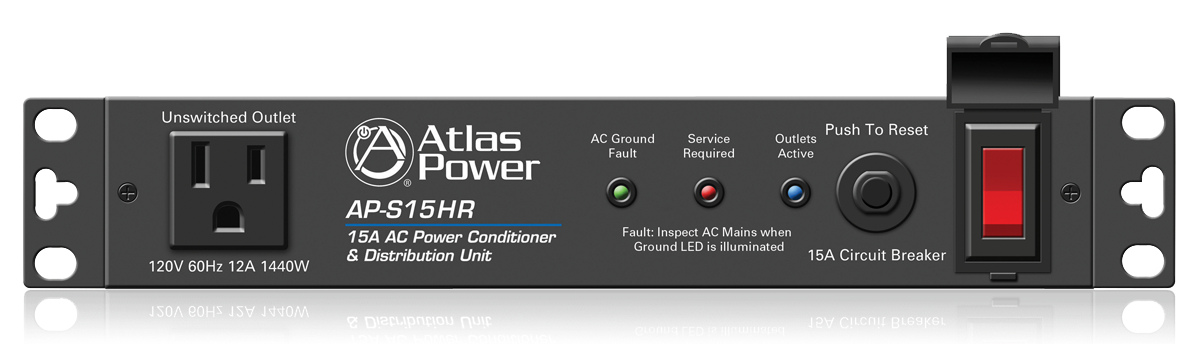

Atlas Sound AP-S15HR
15A Half Width Rack Power Conditioner


Designed to fit into Atlas half width rack equipment racks, the AP-S15HR offers power management control, scalable power cord length...
Learn More
Our Price: $84.99
List Price: $106.99
You save 21%!
Write the first review.
Atlas Sound AP-S15HR
In Stock
Related Products

Designed to fit into Atlas half width rack equipment racks, the AP-S15HR offers power management control, scalable power cord length, noise filtering, spike/surge protection, six AC outlets, and meets or exceeds most installation requirements for AC power distribution and equipment power protection.

The AP-S15HR features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. The benefit of the RF Filter can be seen on video products and heard audibly by reduced static pops and external signal interference.

The AP-S15HR is designed to be mounted in a half width rack design but can also be rack mounted into 19" equipment racks by using the optional PA702-RMK kit (sold separately). This kit allows you to mount an AP-S15HR by itself or in conjunction with another Atlas half width rack product in a 19" 1RU space.

Atlas AP-S15HR Power Conditioner Features:

  • Half width rack design - 8.5" wide with removable rack ears
  • (6) total outlets
  • Earth ground fault connection indicator
  • RFI noise filtering to reduce radio frequency interference
  • Removable 12 ft IEC power cord with a retainer bracket
  • Power switch cover
  • Circuit breaker protection @ 15A

Atlas AP-S15HR Power Conditioner Specifications:

  • Max AC Mains Current: 15 Amps
  • Temperature Range: 5° - 35°C
  • Operating Voltage: 102VAC - 132VAC
  • Power Consumption: 8 Watts
  • Noise Attenuation RFI: 10dB @ 10kHz, 40dB @ 100kHz, 100dB @ 10MHz
  • Height: 1.75" (1RU, 44.5 mm)
  • Width: 8.5" (215.9 mm)
  • Width (Body with Rack Ears): 10.5" (266.7 mm)
  • Depth: 8" (203 mm)
  • Weight: 5.5 lbs (2.49 kg)
