OCEAN MATRIX OMX-HDMI-HDB1X8 1x8 HDMI HDbitT Distribution Amplifier

OUR PART #: OMX-HDMI-HDB1X8 MFR #: OMX-HDMI-HDB1X8

Copied to clipboard

The Ocean Matrix OMX-HDMI-HDB1X8 is a 1080p 1x8 HDbitT HDMI splitter and CAT6 extender kit with IR control 8 receivers. ...Read more

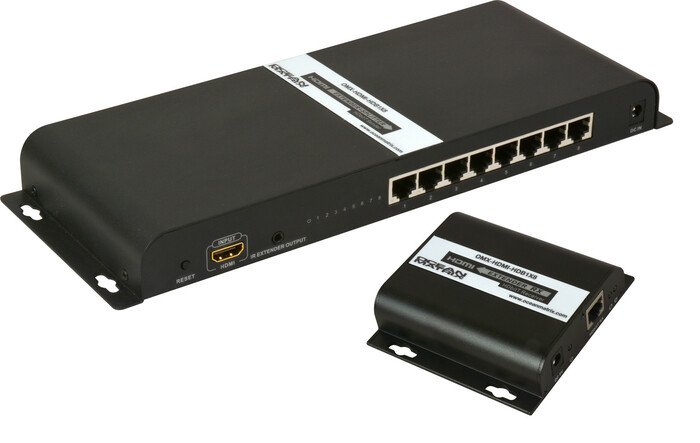

OCEAN MATRIX OMX-HDMI-HDB1X8 1x8 HDMI HDbitT Distribution Amplifier Image 1
OCEAN MATRIX OMX-HDMI-HDB1X8 1x8 HDMI HDbitT Distribution Amplifier
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Ocean Matrix OMX-HDMI-HDB1X8 is a 1080p 1x8 HDbitT HDMI splitter and CAT6 extender kit with IR control 8 receivers. The OMX-HDMI-HDB1X8 delivers a full 1080p 60Hz HDMI signal up to 394 feet over a single Cat6 network cable. This Video and Audio Splitter/Extender System incorporates HDbitT (High Definition Digital bit Transmission Technology) protocol that gives you high performance over long distances without the use of a convertor. The HDbitT technology allows the rack mountable OMX-HDMI-HDB1X8 to distribute the signal through switches and routers to multiple receivers and displays without any loss in image quality. An IR signal transmission even provides remote control of the source from a secondary location with the included IR extension cables. This HDCP compatible Extender/Splitter also has the flexibility to use existing Cat5e and Cat5 networks and supports multiple resolutions. Whether your setting up a high end CCTV/Security System or linking up the HD Displays across your home the Ocean Matrix OMX-HDMI-HDB1X8 HDMI Splitter/Extender System is the perfect choice to get the job done.

Ocean Matrix OMX-HDMI-HDB1X8 Includes:

  • One Splitter Extender
  • Eight Receivers, with 1 IR receiver extension cable & 1-5V/1A power adapter each
  • One IR blaster extension cable, connects to transmitter
  • 12VDC/3A power adapter

Ocean Matrix OMX-HDMI-HDB1X8 Features:

  • One HDMI to 8 RJ45 output transmitter
  • Eight individual RJ45 to HDMI receivers
  • Transmits over a single Cat6a up to 500 ft/Cat6 394 ft/Cat5e 328 ft/Cat5 240 ft
  • Supports IR signal transmission
  • HDbitT technology
  • Excellent image clarity
  • Mountable Robust metal housing

Ocean Matrix OMX-HDMI-HDB1X8 Specifications:

  • Input Power: 12V 3A
  • Max Cable Extension: 394 ft Cat6
  • Supported Resolutions: 480i/60, 480p/60, 576i/50, 576p/50, 720P/50, 720{/60, 1080i/50, 1080i/60, 1080P/50 1080P/60
  • Operating Frequency: Up to 225MHz
  • HDCP compatible
  • Extender Dimension (WxDxH): 11.8" x 4.4" x 1.17" (299 x 110.7 x 29.6mm)
  • Extender Weight: 0.95 lb/430g
  • RX Dimensions (WxDxH): 3.74" x 3.67" x 0.09" (9.5 x 9.3 x 2.3cm)
  • RX Weight: 0.31 lb. (142g)
  • IR signal: 20-60kHz IR
