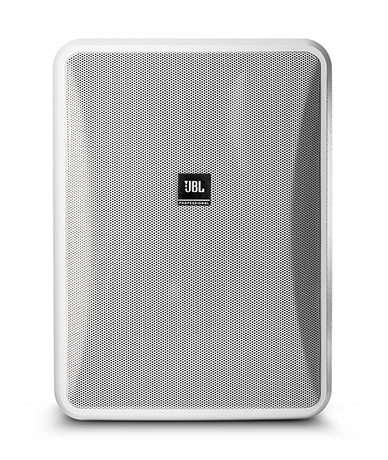

JBL CONTROL-28-1L
High Output Indoor/Outdoor, Background/Foreground Low Impedance Speaker, White, Sold In Pairs

OUR PART #:  CONTROL-28-1L-WHT

The JBL The Control® 28-1 is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage...
Learn More
Our Price: $236.00
List Price: $295.00
You save 20%!
Write the first review.

This product must be purchased in multiples of 2

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL CONTROL-28-1L
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The JBL The Control® 28-1 is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high design look that fits into a wide range of decors, This makes Control 28-1 a great choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

The unique InvisiBall mounting hardware is included in with each system, making short work of permanent installation. The InvisiBall mounting method provides a high degree of both vertical and horizontal rotation, and because InvisiBall adjustments are made through a hidden access behind the logo badge, the grille never needs to be removed and there exists a high degree of theft deterrence as well. Integrated M6 mounting points for an optional U-bracket adds to the installation versatility.

JBL Control 28-1 Features:

  • Components:
    • 8” woofer with woven fiberglass cone
    • 1” PEI diaphragm tweeter with fluid cooling
  • Contemporary, high-design appearance
  • Built-in InvisiBall® mounting hardware, plus available U-bracket
  • Weather resistant enclosure and transducers
  • Wide 100° x 100° coverage
  • 120 Watt power handling (240 Watt program) in direct8O setting
  • High fidelity sound character with broad frequency response of 45 Hz – 20kHz.

JBL Control 28-1 Specifications:

  • Frequency Range (-10 dB): 45 Hz to 20 kHz
  • Frequency Response (+/-3 dB): 62 Hz - 16 kHz
  • Power Rating:
    • 240 W Continuous Program (2 hrs)
    • 120 W (480W peak), Continuous Pink Noise (2 hrs)
    • 90 W (360W peak) Continuous Pink Noise (100 hrs)
  • Maximum Input Voltage: 27.5 V RMS (2 hrs), 55.0 V peak
  • Maximum SPL: 112 dB ave. Continuous Pink Noise (118 dBpeak)
  • Sensitivity: 91 dB, 1W/1m (ave. 100 Hz – 10 kHz)
  • Coverage Angle: 100° x 100°
  • Directivity Factor (Q): 7.3 (averaged 1 kHz – 16 kHz)
  • Directivity Index (DI): 8.3 dB (averaged 1 kHz – 16kHz)
  • Nominal Impedance: 8 ohms (THRU setting)
  • Crossover Type: 2nd order low-pass, 1storderhigh-pass, plus conjugate shaping
  • Recommended Protective High-Pass: 45 Hz high-pass (24dB/oct) for 8 Ohms operation plus 15W and 7.5W taps; 55 Hz for 30W tap; 65 Hzfor 60W tap.
  • Colors: Black (RAL9004) or white (-WH, RAL9016)
  • Dimensions (H x W x D): 386 x 282 x 219 mm (15.2 x11.1 x 8.6 in); 277 mm (10.9 in) deep total when mounted on InvisiBallwall-mount bracket.
  • Net Weight: 6.8 kg (15.0 lbs)
  • Shipping Weight: 15.4 kg (34 lbs) pair-packed (for 2speakers)
  • Included Accessories: InvisiBall™ (wall-mounting system), 6 mm x 180 mmhex key
U-Bracket for Control 28-1/1L, White
JBL MTC28UB-1 U-Bracket for Control 28-1/1L, White
The JBL MTC28UB-1 is a U-bracket for Control 28-1, White.
