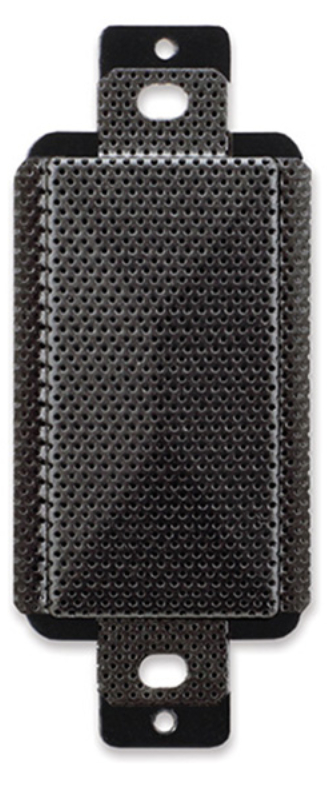

Radio Design Labs DB-SP1A
2-Watt Decora-Style 8 Ohm Loudspeaker, Black

OUR PART #  DB-SP1A

Our Price: $69.52
List Price: $99.64
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The D SERIES-SP1A is a compact 8 ohm loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.

The input is connected through a 2-position detachable terminal block on the rear panel. The D SERIES-SP1A operates with a continuous audio input up to 2 watts, making it suited to be driven by speech or music content from amplifiers with a maximum rated power of up to 10 W. Models are available with grills in black (DB-SP1A), white (D-SP1A), gray (DG-SP1A) or stainless steel (DS-SP1A).

Radio Design Labs  DB-SP1A Features:

  • Acoustically Optimized Decora Enclosure
  • Fidelity Comparable to Larger Drivers
  • Exceptional Audio Quality for Ultra-Compact Size
  • Rich Presence and Detailed Clarity
  • Hemispherical Dispersion Mounted In Wall or Flat Surface
  • Convex Aluminum Cone with Rubber Surround
  • Neodymium Motor

Radio Design Labs  DB-SP1A Specifications:

  • Input Power: 2 W RMS (modulation peaks limited to 10W)
  • Input Connection: Detachable terminal block (14 to 24AWG)
  • Impedance: 8 Ohms (nominal)
  • Frequency Range: 150 Hz to 20 kHz, nominal
  • Sensitivity: 78 dB (1 W, 1m nominal)
  • Enclosure: Powdercoated steel
  • Grill: Formed perforated steel
  • Dimensions (H x D x W): 4.1 x 2.07 x 1.72 in (10.4 x5.26 x 4.37 cm)
  • Shipping Weight: 0.525 lbs

Radio Design Labs DB-SP1A
2-Watt Decora-Style 8 Ohm Loudspeaker, Black

OUR PART #  DB-SP1A

Product Information:

The D SERIES-SP1A is a compact 8 ohm loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.

The input is connected through a 2-position detachable terminal block on the rear panel. The D SERIES-SP1A operates with a continuous audio input up to 2 watts, making it suited to be driven by speech or music content from amplifiers with a maximum rated power of up to 10 W. Models are available with grills in black (DB-SP1A), white (D-SP1A), gray (DG-SP1A) or stainless steel (DS-SP1A).

Radio Design Labs  DB-SP1A Features:

  • Acoustically Optimized Decora Enclosure
  • Fidelity Comparable to Larger Drivers
  • Exceptional Audio Quality for Ultra-Compact Size
  • Rich Presence and Detailed Clarity
  • Hemispherical Dispersion Mounted In Wall or Flat Surface
  • Convex Aluminum Cone with Rubber Surround
  • Neodymium Motor

Radio Design Labs  DB-SP1A Specifications:

  • Input Power: 2 W RMS (modulation peaks limited to 10W)
  • Input Connection: Detachable terminal block (14 to 24AWG)
  • Impedance: 8 Ohms (nominal)
  • Frequency Range: 150 Hz to 20 kHz, nominal
  • Sensitivity: 78 dB (1 W, 1m nominal)
  • Enclosure: Powdercoated steel
  • Grill: Formed perforated steel
  • Dimensions (H x D x W): 4.1 x 2.07 x 1.72 in (10.4 x5.26 x 4.37 cm)
  • Shipping Weight: 0.525 lbs
