Doug Fleenor Designs DMX12ANL-TB
12 Channel DMX to Analog Converter with Terminal Block

OUR PART #:  DMX12ANL-TB

The Doug Fleenor Design DMX12ANL is a 12 channel DMX512 to analog 0-10V interface with pluggable terminal blocks for the DMX512 in and thru connections.
Learn More
Our Price: $625.32
List Price: $772.00
You save 19%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Doug Fleenor Designs DMX12ANL-TB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

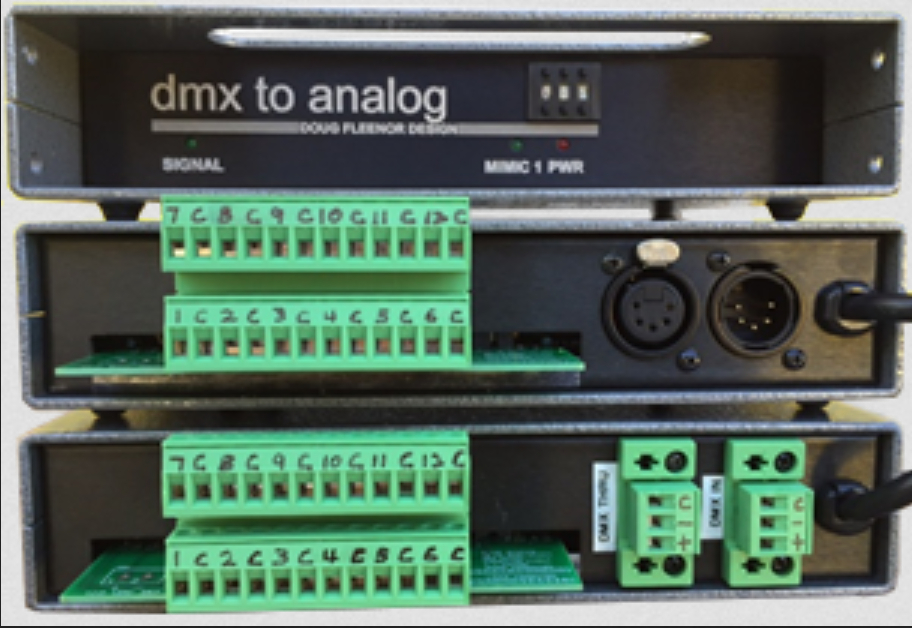

The Doug Fleenor Design DMX12ANL is a 12 channel DMX512 to analog 0-10V interface with pluggable terminal blocks for the DMX512 in and thru connections. The analog outputs appear on the pluggable terminal blocks. Each analog output is capable of sourcing or sinking up to 15mA. No user adjustments or modifications are needed to select sourcing or sinking modes. Each output channel has a dedicated common terminal to ease field wiring. The DMX512 input is optically isolated from the analog outputs.

Doug Fleenor Design DMX12ANL-TB Specifications:

  • Input circuit: Protected EIA-485 receiver (LT1785)
  • Input protection: Undamaged by up to 60 Volts continuous, 15KV transients
  • Input signal: 0.2 volts minimum, 12 volts maximum, DMX512, DMX512/1990, or DMX512-A
  • Isolation: DMX512 input is optically isolated to 600 Volts
  • Input/thru connector: DMX12ANL-TB: 3 position pluggable terminal blocks
  • DMX12ANL-5: 5 pin gold plated Neutrik male (input) and female (thru) XLR connectors
  • Termination: None. Unused pass through connections must be externally terminated
  • Power input: 120 VAC 60 Hz 0.5 Amps
  • Output connectors: Two 12 position pluggable terminal blocks. Each terminal block has 6 outputs and 6 commons
  • DMX footprint: Twelve consecutive DMX slots beginning with the selected DMX starting address
  • DMX starting address: Three digit front panel thumbwheel switch. Address changes are immediate (no power cycling required)
  • Local control: Address switch setting of 601 turns on output 1, 602 turns on output 2, etc.
  • Switch setting of 697 turns on all outputs if any DMX level is above zero
  • Switch setting of 698 turns on all outputs if DMX is present
  • Switch setting of 699 turns on all outputs
  • Status indicators: Red POWER indicator
  • Green MIMIC 1 indicator mimics the level of output 1 (useful in troubleshooting)
  • Green SIGNAL indicator illuminates when DMX512 is present; flashes when local control is active (address switch settings of 601 thru 624 and 697 thru 699).
  • Cooling: Convection cooling, no fan required
  • Color:
    • Top, bottom and sides: Silver hammer tone
    • Front and rear: black
  • Size and weight: 6.5" deep x 1.7” high x 8.25" wide, 5 pounds. (19” rack adapter available)
  • Warranty: Five years parts and labor. Interface must be returned to Doug Fleenor Design for warranty repair. Shipping to Doug Fleenor Design is to be paid by the customer. Return ground freight is paid by Doug Fleenor Design. Warranty covers manufacturing defects
