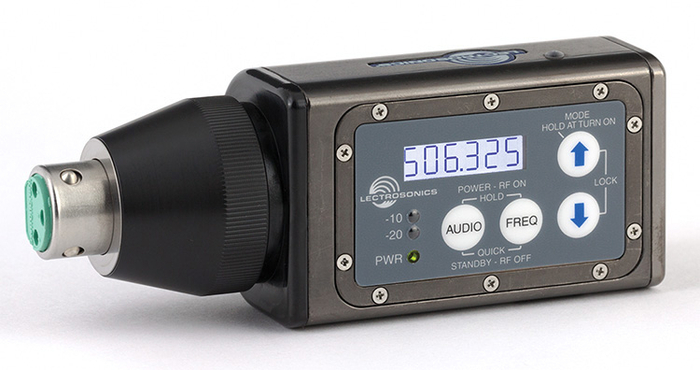

Lectrosonics HMa
Digital Hybrid Wireless UHF Plug-On Transmitter

OUR PART #:  HMA

The Lectrosonics HMa plug-on transmitter design will match any microphone or line level source with a standard XLR connector.
Learn More
Selected Model Price: $1,179.00
List Price: $1,625.00
Save up to 27%!
Write the first review.
Lectrosonics HMa
Select a Model: (shipping times are approximate)

Related Products

The Lectrosonics HMa plug-on transmitter design will match any microphone or line level source with a standard XLR connector. Phantom power is selectable at 5, 15 and 48 volts, or can be turned off for use with dynamic microphones and line level signal sources.

The design includes a wide tuning range of up to 76 MHz, with tuning steps in increments of 100 kHz or 25 kHz for up to 3072 frequencies. The tuning range covers three standard 25.6 MHz Lectrosonics frequency blocks. Each of the standard blocks includes 256 different pilot tone frequencies for compatibility with all Digital Hybrid Wireless receivers.

DSP compatibility modes are also included to work with legacy Lectrosonics analog wireless microphone receivers and IFB receivers, as well as some receivers from other manufacturers.

Lectrosonics HMa Includes:

  • Two AA Alkaline Batteries
  • HM Pouch (Part #PHTRAN3)
  • Quickstart Guide

Lectrosonics HMa Features:

  • Accepts microphone or line level signals
  • Selectable 5, 15, 48 volt phantom power
  • 76 MHz tuning range in 100 kHz or 25 kHz steps for up to 3072 frequencies
  • Selectable 50/100 mW output power
  • Adjustable low frequency roll-off
  • Powered by two AA batteries
  • USB port for firmware updates
  • IR (infrared) port for fast setup
  • Solid machined aluminum housing

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
