Atomos Shogun Flame
7" 4K HDMI/12G-SDI Recording Monitor

OUR PART #:  ATO-SHOGUN-FLAME

The Atomos Shogun Flame is a 7" 10-bit AtomHDR 1500nit Field Monitor that features 4K/HD 10-bit ProRes/DNxHR recording, Sony & Canon Raw to ProRes/DNxHR recording...
Learn More
Our Price: $995.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Atomos Shogun Flame
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

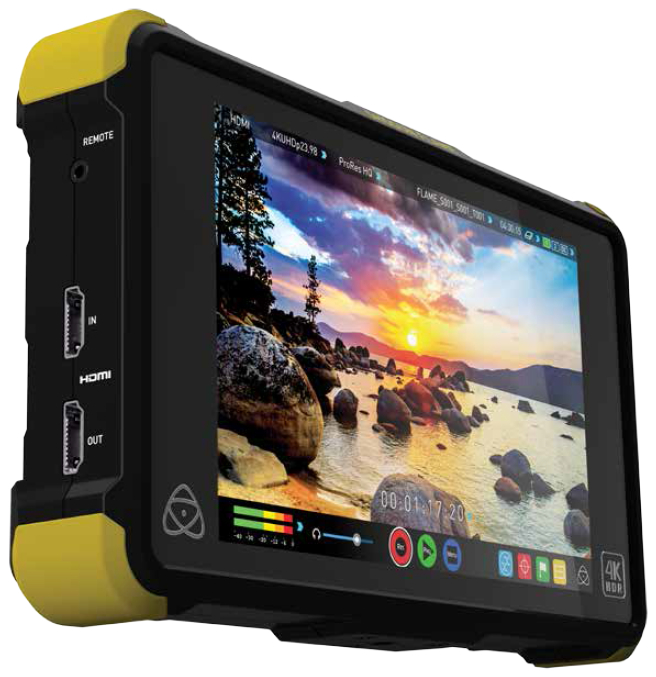

The Atomos Shogun Flame is a 7" 10-bit AtomHDR 1500nit Field Monitor that features 4K/HD 10-bit ProRes/DNxHR recording, Sony & Canon Raw to ProRes/DNxHR recording, professional HDMI, SDI, and XLR connections, along with LTC/Genlock & bidirectional SDI/HDMI conversion for use on-set and in-broadcast. AtomHDR allows you to get the brightness and dynamic range of HDR Log with natural, vibrant colors, letting you simply shoot the way you see.

Get ahead of the Log curve:
Cameras with Log output (S-Log2, S-Log3, C-Log, V-Log etc) already feature the 10+ stops of dynamic range required for High Dynamic Range (HDR). Now you can be at the forefront of the HDR revolution sweeping the industry by using a field monitor capable of resolving HDR in the field as you see it in Post Production, and record the original Log image directly from the sensor for HDR post production grading.

Atomos Shogun Flame Features:

  • Scenes ignite with 1500nits of light
  • Widest camera capability
  • Unlock the raw from Sony & Canon
  • Record professional 4K & HD
  • Simple OS, sophisticated shots
  • Continuous power with fast charging
  • Monitor & record XLR audio

Atomos Shogun Flame Specifications:

  • Physical:
    • Weight:
      • (without batteries & media) 22.9 oz (650g)
      • (With batteries & media) 38.6 oz (1094g)
    • Dimensions: 8.4" W x 5" H x 1.8" D (214 x 127 x 45mm)
  • Construction:
    • High-quality lightweight ABS Polycarbonate for durability & portability
    • Onboard armor protection
  • Operating power: 10 - 24W
  • Compatible batteries: NP series and supporting accessories
  • Input voltage (battery): 6.2V to 16.8V
  • Battery time (based on 7.4V): -
    • 5200mAh - up to 1.5hrs (monitor & record 4K 30p)
    • 7800mAh - up to 2.2hrs (monitor & record 4K 30p)
  • DC In: 1 x DC In (6.2 - 16.8V)
  • Continuous power:
    • Primary-secondary battery system
    • Change batteries without losing power
    • Loop batteries continuously
  • Size: 7.1"
  • Resolution: 1920 x 1200
  • PPI: 325
  • Aspect ratio: 16:9 native
  • Color Gamut: REC709 HDTV
  • Look up table (LUT) support: 3D LUT (.cube le format)
  • Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
  • Technology: SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional Atomos Spyder (sold separately
  • AtomHDR: Yes
  • Supported Log formats:
    • Sony SLog2
    • SLog3, Canon CLog
    • CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm
  • Supported Gamuts:
    • Sony SGamut
    • SGamut3
    • SGamut3.cine
    • Canon Cinema
    • BT2020
    • DCI P3
    • DCI P3+
  • Panasonic V Gamut
  • Arri Alexa Wide Gamut
  • Bit depth: 10-bit (8+2 FRC)
  • Brightness: 1500nit (+/- 10%)
  • PQ in/out:
    • In = Post: Yes
    • Out = Monitor: Yes
  • Supported Loop out Formats:
    • HDMI to HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/120, 2160p 24/25/30
    • SDI to SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60/120, 2160p 24/25/30
