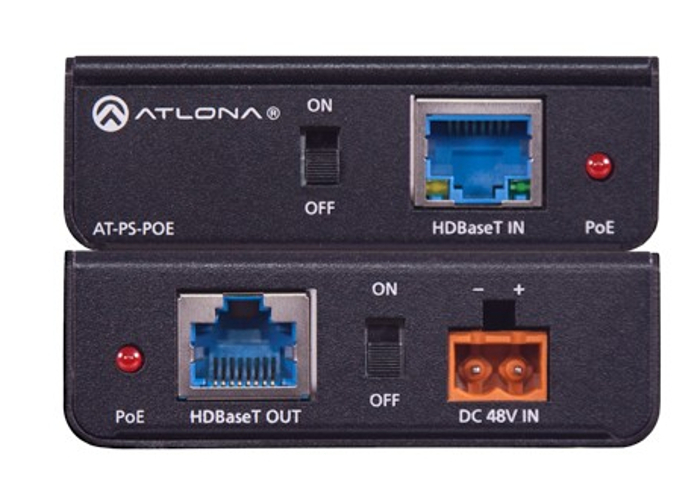

Atlona Technologies AT-PS-POE
Power Over Ethernet Mid-Span Power Supply

OUR PART #:  AT-PSPOE

The AT-PS-POE is a 48 VDC mid-span power injector designed to send remote power to HDBaseT™ products that operate on IEEE 802.03af Power over Ethernet.
Learn More

Call for price! Not available online.

Similar Products

The AT-PS-POE is a 48 VDC mid-span power injector designed to send remote power to HDBaseT™ products that operate on IEEE 802.03af Power over Ethernet. When placed within an HDBaseT transmission line, it allows two PoE-powered products to work together. The power supply features two power switches to selectively send power up- or down-stream. Both power streams can operate simultaneously. With a bandwidth of 10.2 Gbps, the power supply supports 4K/UHD resolutions, multi-channel audio formats, and offers full 3-D pass-through and passes all HDCP signals. The AT-PS-POE is housed in a compact enclosure and can be conveniently placed anywhere between the transmitter and receiver to provide power for PoE-powered devices.

Atlona Technologies AT-PS-POE Features:

  • Power supply for remote powering for powered devices on HDBaseT transmission lines
    • Supplies 48 VDC to products using IEEE 802.03af Power over Ethernet
    • Industry standard powering scheme for HDBaseT products
  • Mid-span power supply
    • Routes powers to up- and down-stream lines simultaneously
    • Saves cost by eliminating duplicate devices
  • Power switches for incoming and outgoing line
    • Power can be turned off in the direction of a non-PoE device
    • Sends power only in the required direction
  • Supports 4K/UHD signals
    • 10.2 Gbps bandwidth power supply supports 4K/UHD resolutions, multi-channel audio formats,
    • HDCP 2.2, and offers full 3-D pass-through
    • Ideal for ultra-high resolution signals
  • Upgrade for PoCc systems
    • Allows UHD-EX Series receivers to be used with PRO2HD Series or HD-CAT Series systems
    • Maintains ROI on legacy systems that need an additional signal extension or receiver upgrade/replacement
  • Low-profile, discreet enclosure
    • Easy insertion anywhere into HDBaseT transmission line including confined spaces
    • Keeps devices out-of-sight when placed in public spaces
  • Included accessories
    • User guide, 48 VDC power supply, and mounting brackets
  • Award-winning 10 year limited product warranty
    • Ensures long-term product reliability and performance in residential and commercial systems
    • Specify, purchase, and install withconfidence

Atlona Technologies AT-PS-POE Specifications:

  • Resolution
    • Video: 4096×2160@ 24/25/30/50*/60Hz*, 3840×2160@ 24/25/30/50*/60Hz*, 2048x1080p, 1080p@ 23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@ 50/59.94/60Hz, 720p@ 50/59.94/60Hz, 576p, 576i, 480p, 480i
    • VESA: 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0*
    • Color Depth: 8-bit, 10-bit, 12-bit
  • Audio
    • HDBaseT OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit
  • Distance
    • Per Product: Reduces HDBaseT cable distance by 10%
  • Signal
    • Bandwidth: 10.2 Gbps
    • CEC: Compliant
    • HDCP: Compliant 2.2
  • Temperature
    • Operating: 32°F to 122°F (0°C to 50°C)
    • Storage: -4°F to 140°F (-20°C to 60°C)
    • Humidity: 20 to 90% non-condensing
  • Power
    • Consumption: 15.2W
    • Supply
      • Input: AC100-240V ~ 50/60Hz
      • Output: 48V/0.83A
  • Dimensions (HxWxD): 0.96" x 2.87" x 2.77" (24.4 x 73.37x 70.47 mm)
  • Weight: 0.09 lbs (0.19 kg)
  • Certification
    • Unit  CE, FCC
    • Power Supply  CE, FCC, Level VI, RoHS, cULus, RCM, CCC

(*4096×2160@ 50/60Hz & 3840×2160@ 50/60Hz supported @ chroma subsampling 4:2:0 8-bit only)
