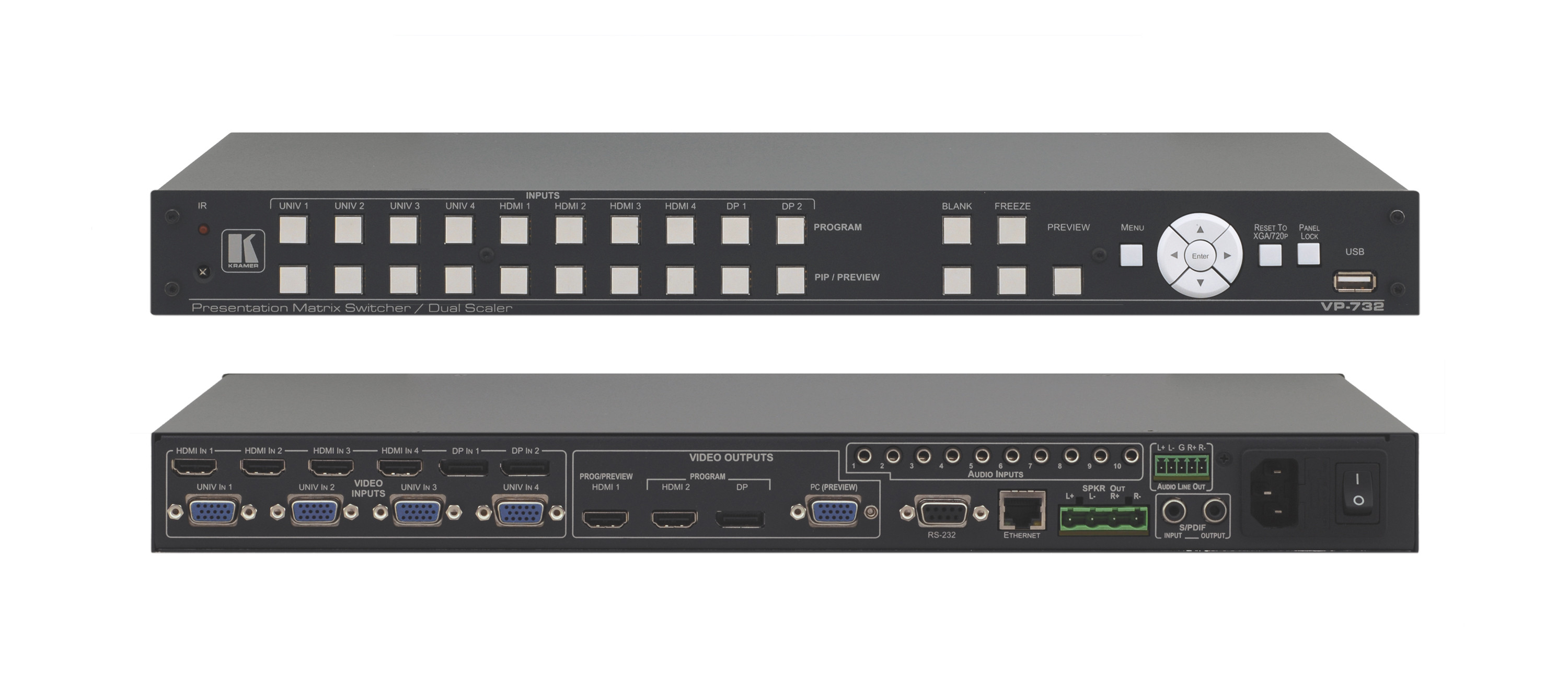

Kramer VP-732
1RU 10 Input ProScale Presentation Switcher with Preview & Pro

OUR PART #:  VP-732

The Kramer VP-732 is a 10-input presentation switcher/dual scaler with four HDMI, two DisplayPort and four user-definable analog video inputs.
Learn More
Our Price: $2,940.00
List Price: $3,675.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP-732
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer VP-732 is a 10-input presentation switcher/dual scaler with four HDMI, two DisplayPort and four user-definable analog video inputs. The VP-732 scaled to selectable graphics or HDTV output resolutions to preview outputs.

Applications:

  • Conference rooms
  • Boardrooms
  • Auditoriums
  • Hotels
  • Churches
  • Production studios
  • Rental
  • Staging

Kramer VP-732 Includes:

  • Rack “ears”
  • IR remote control
  • Power cord

Kramer VP-732 Features:

  • Fade-Thru-Black (FTB™) Switching
  • Auto-input Switching
  • Dual Scalers with Independent Outputs
  • Output Resolutions - Up to 4K UHD (720P on Preview Output)
  • Selectable Audio Delay
  • Stereo Speaker Output
  • Built-in Video Proc-Amp
  • Control Options - IR RS-232, Ethernet with Web browser
  • Size - Standard 19" (1U). Rack "ears" included.
  • Audio - B/D/E
  • HDCP Compliant
  • HDTV Compatible
  • Dual Scalers with Independent Outputs
  • 10 Program & 10 Preview/PIP Input Select Buttons - For quick selection of the program/preview/PIP source
  • Audio Inputs - 10 3.5mm
  • Selectable Audio Delay
  • Output Resolutions - With selectable refresh rates: up to 4K UHD on the program output, 720p on the preview output
  • Scaled Video Outputs - On 2 HDMI, 1 DP and 1 15-pin HD computer graphics connectors
  • Multiple Aspect Ratio Selections

Kramer VP-732 Specifications:

  • Inputs:
    • Four HDMI connectors
    • Four universal (composite s-Video computer graphics and component) on 15-pin HD connectors
    • Two DP connectors
    • USB connector
    • S/PDIF on an RCA connector
    • Ten unbalanced stereo audio on 3.5mm mini jacks
  • Outputs:
    • Two HDMI connectors
    • DP connector
    • PC (computer graphics) on a 15-pin HD connector
    • Balanced audio stereo output on a 5-pin terminal block (+4dBu nominal)
    • Stereo speaker output (10W per channel into 8?) on a 4-pin terminal block connector
    • Digital S/PDIF output on an RCA connector
  • Supports HDMI and HDCP
  • Control:
    • Front panel buttons/OSD
    • IR remote control
    • RS-232 on a 9-pin D-sub connector
    • Ethernet
    • Picture-In-Picture, Picture-and-Picture or Split Screen (two images side-by-side)
    • Separate program/preview freeze and zoom, different selectable vertical refresh rates, Video and Audio ProcAmp control, output image scaling and aspect ratio change, EDID capture
  • Power Source:
    • 100-240V AC
    • 50/60Hz
    • 49VA
  • Operating Temperature: 32°-104°F (0°-40°C)
  • Humidity:
    • 10% to 90%
    • RHL non-condensing
  • Dimensions (WxDxH):
    • Product dimensions: 19" x 9.34" x 1" (43.6cm x 23.72cm 4.36cm)
    • Shipping dimensions: 20.67" x 12.99" x 4.21" (52.50cm x 33.00cm x 10.70cm)
  • Weight:
    • Product weight: 5.4lbs (2.5kg) approx
    • Shipping weight: 7.5lbs (3.4kg) approx
