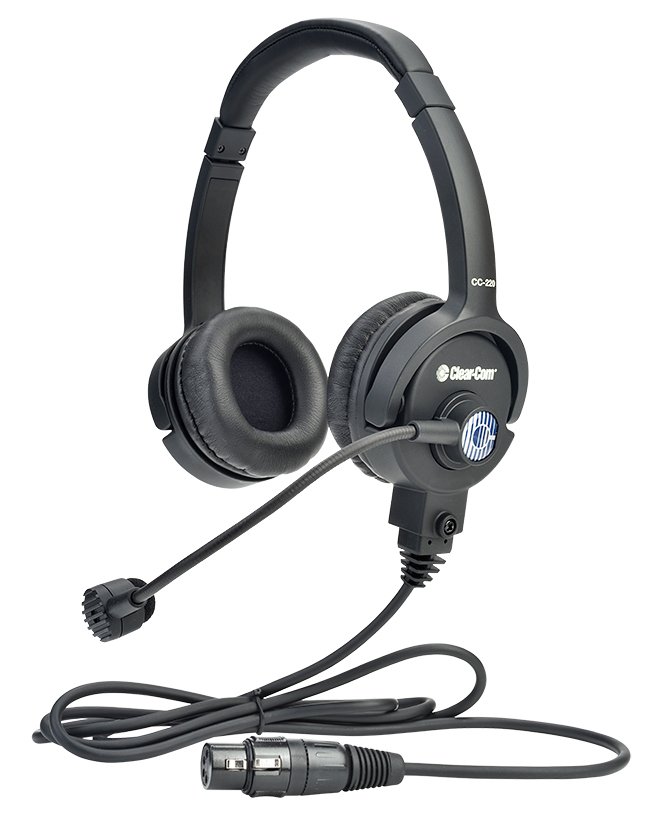

Clear-Com CC-220-X4 Lightweight Double-Ear Standard HS XLR-4F

The Clear-Com CC-220-X4 is a lightweight double-ear headset with a 4-pin Female XLR connector. The CC-220 features high ambient-noise attenuation and uses a hyper-cardioid dynamic microphone that provides high quality audio.

The CC-220 headsets can be easily adjusted to accommodate the preference of any user. The microphone boom has a 300° rotation to allow the microphone to be worn on the left or right side of the head. Users can make the headset larger or smaller by using the slide adjusts on either side of the headband. Cushioned with super-soft leatherette or foam padding, the headphones sit on the ear to provide a comfortable fit for users. A rotating, flexible gooseneck is included for optimal positioning.

Features

• High-quality dynamic cardioid microphone
• 20 Hz - 20 KHz frequency response
• Choice of earpads: leatherette or soft foam
• Flexible gooseneck microphone positioning
• Boom rotataion ON/OFF switch for quick microphone muting
• Interchangeable cabling for easy connector changing and repair
• Fully serviceable headset
• Storage bag included

Specifications

• Headphone
  • Type: Closed-back
  • Driver: 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
  • Frequency Response: 20Hz v- 20kHz
• Microphone
  • Element: Dynamic
  • Driver: 15mm, neodymium magnet
  • Polar Pattern: Cardioid
  • Frequency Response: 250 Hz - 20 kHz
  • Sensitivity: 96 dB +/- 3 dB (SPL); at 1 kHz typical
• Power
  • Maximum: 500 mW
• Impedance:
  • Headphone: 200 Ohms +/- 30%; at 1 kHz typical
  • Microphone: 200 ohms +/- 30%; at 1 kHz typical
• Connector
  • Cable: 5ft (1.55m) long with 8-pin connector at headset end; 4-pin Female XLR
• Package Dimensions (W x H x D): 6.8 x 8 x 3.5 in (170x205 x 90 mm)
• Weight: 6.8 oz (195g) without 8-pin cable assembly and M3*18 mm SCREW
