Product Overview

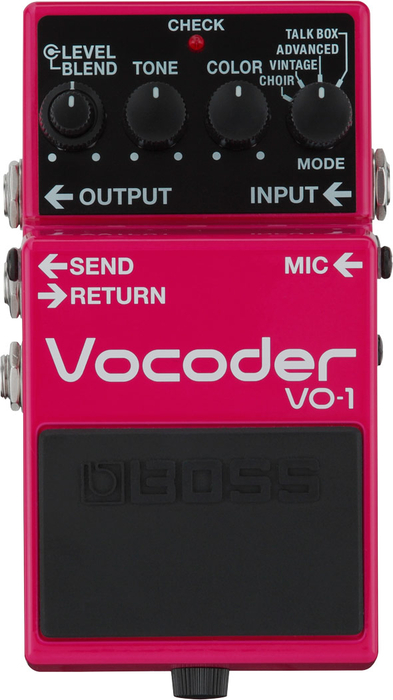

The Boss VO-1 Vocoder transforms your tone with electronic voices, classic talk box sounds, and more.
Boss VO-1 Includes:
- Owner's Manual
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
- Alkaline battery (9V, 6LR61)
Boss VO-1 Features:
- Innovative, easy-to-use vocoder pedal powered by BOSS’ famous guitar synth technology
- Use your voice to dramatically extend the expressive range of your instrument in countless ways
- Vintage mode for classic electronic synth-voice sounds and Advanced mode for all-new vocoder tones with enhanced clarity
- Talk Box mode enables “talking lead guitar” tones without the hassles of a traditional talk box setup
- Choir mode for achieving rich vocal sounds with nomic connected
- Effect loop for sound enhancement and easy integration with existing pedals
- Works with guitar, bass, or any instrument with a 1/4" output
- BOSS five-year warranty
Boss VO-1 Specifications:
- Modes
- Advanced
- Vintage
- Talk Box
- Choir
- Nominal Input Level
- Input, Return: -20 dBu
- Mic: -40 dBu (Mic Sens: Low)
- Input Impedance
- Input, Return: 1 MOhm
- Mic: 4 kOhms
- Nominal Output Level: Output, Send: -20 dBu
- Output Impedance: Output, Send: 1 kOhm
- Recommended Load Impedance: 10 kOhms or greater
- Bypass: Buffered bypass
- Controls
- Pedal switch
- MIC SENS switch
- MODE knob
- COLOR knob
- TONE knob
- BLEND knob
- LEVEL knob
- Indicator: CHECK indicator (serves also as battery check indicator)
- Connectors
- INPUT jack
- MIC jack (XLR type)
- RETURN jack
- OUTPUT jack
- SEND jack
- DC IN jack
- Power Supply
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
- AC Adapter (sold separately)
- Current Draw: 65 mA
- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use):
- Alkaline: Approximately 5 hours
- Options: AC adapter: PSA series
- Size (WxDxH): 2-7/8" x 5-1/8" x 2-3/8" (73 x 129 x 59mm)
- Weight: 1 lb (450 g)
