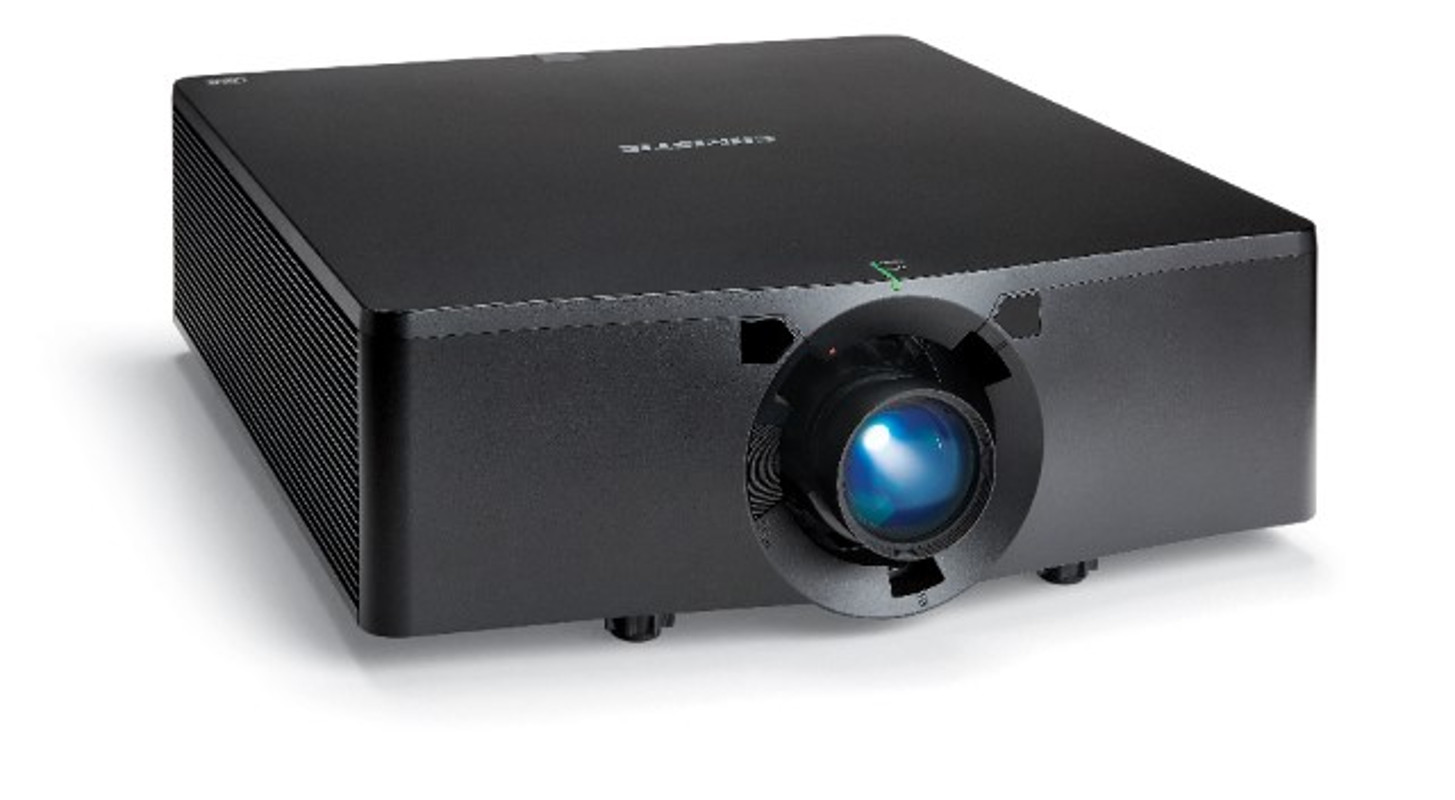

Christie Digital D13WU-HS
13000 Lumen 1-DLP Solid State WU Black Projector Without Lens

OUR PART #:  D13WU-HS

The Christie Digital D13WU-HS allows the user to achieve high-precision 2D and 3D images with a compact and quiet projection system.
Learn More
Similar Products

The Christie Digital D13WU-HS allows the user to achieve high-precision 2D and 3D images with a compact and quiet projection system. Christie® D13WU-HS offers the world’s brightest 1DLP® laser phosphor projector boasting up to 13,500 lumens in WUXGA resolution, with Christie BoldColor Technology.

For ultimate satisfaction in laser phosphor projected content, Christie BoldColor Technology offers a premium viewing experience, taking color accuracy and image quality to the next level. Images are bold and realistic at high brightness levels, resulting in richer, more appealing visual content and meeting the Rec. 709 standard for high-definition color reproduction.

NOTE: Lens NOT Included

Christie Digital D13WU-HS Includes:

  • IR remote with wired remote jack (wire not included)
  • AC line cords for projector head
  • User manual

Christie Digital D13WU-HS Features:

  • High-quality, brighter images
  • Smooth, seamless content
  • Unparalleled color reproduction
  • Quick, easy warping and blending
  • Stable, consistent performance – 24/7
  • Long life
  • Easy to handle and install with a lightweight, compact design
  • Loop through capability
  • Backed by industry-leading warranties and service

Christie Digital D13WU-HS Specifications:

  • Lens is NOT included
  • Part Number: 140-015107-XX
  • Image:
    • Brightness
      • 13,500 ISO lumens
      • 12,500 center lumens
      • 12,000 ANSI lumens
    • ?Color wheel: Four segment (RGBY) - 2X or 3X speed
    • Contrast (nominal):
      • 750,000:1 full on/off (Christie RealBlack enabled)
      • Dynamic contrast 7,500:1
      • 1200:1 full on/off (Christie RealBlack disabled)
      • 250:1 ANSI
  • Display:
    • Type: 0.96” DMD
    • Native resolution: 1920 x 1200 (2,304,000 pixels) 16:10
  • Signal inputs:
    • Standard:
      • Two HDMI (one on rear panel, one on bottom of projector, independently selectable)
      • 3GSDI (BNC)
      • DVI-D (digital only)
      • HD15
      • USB (type B mini) - display over USB
      • USB (type A) - image viewer or WiFi dongle (optional)
      • HDBaseT (RJ45 x 1)
      • RJ45 (ChristiePresenter over wired network connection)
    • 3D:
      • HDMI 1.4, HDBaseT - frame packed, top/bottom, side-by-side
      • Up to 120Hz output
      • 3D Sync In (BNC) - for genlocking projectors
      • 3D Sync Out (BNC) - for genlocking projectors or controlling emitter or polarizer
    • Signals:
      • HDTV formats VGA through to WUXGA (1920 x 1200)
      • Horizontal and vertical scaling while maintaining aspect ratio, all inputs
    • Pixel clock: 162 MHz
    • Scan rates:
      • Horizontal: 15 kHz to 91 kHz
      • Vertical: 24 Hz to 85 Hz
  • Signal outputs:
    • Monitor out (loop through):
      • 3GSDI (BNC)
      • DVI-D (digital only)
  • Control and networking:
    • RS232 In
    • Control via HDBaseT
    • Ethernet (10/100) RJ45 with ChristieNET connectivity
    • Built-in backlit keypad
    • Wired remote control (3.5mm stereo) - Loop out available for daisy chaining
  • Lens mount:
    • Boresight adjustable
    • Motorized horizontal and vertical lens offset (memory available)
    • Motorized zoom and focus adjustment (memory available for full ILS lenses)
  • Lens options:
    • Lenses:
      • 0.84-1.02:1 zoom lens (no zoom/focus memory) - adapted 1.2-1.5:1 E Series lens
      • 1.02-1.36:1 zoom lens (no zoom/focus memory) - adapted 1.5-2.0:1 E Series lens
      • 1.2-1.5:1 zoom lens (full ILS)
      • 1.5-2.0:1 zoom lens (full ILS)
    • Offsets (Full ILS lenses):
      • +/- 120% Vertical (+/- 720 pixels)
      • +/- 50% Horizontal (+/- 480 pixels)
    • Offsets 0.84-1.02:1:
      • +37 / -60% vertical (+222/-363 pixels)
      • +15 / -44% horizontal (+152/-426 pixels)
    • Offsets 1.02-1.36:1:
      • +51 /-53% vertical (+307/-318 pixels)
      • ?+11 / -50% horizontal (+107/-480 pixels)
  • Power requirements:
    • Operating voltage: Normal: 100-120VAC / 200-240VAC @ 60/50 Hz
    • Power consumption:
      • Normal mode: 1220W +/-15% (220V),  1300W +/-15% (100V)
      • ECO1 mode: 1000W +/-15% (220V), 1050W +/-15%(100V)
      • ECO2 mode: 660W +/-15% (220V), 700W +/-15%(100V)
    • Operating current: Normal mode: 7A (200-240VAC), 14A (100-120VAC)
    • Dissipation:
      • Normal mode: 4435 BTU/hr
      • ECO1 mode: 3580 BTU/hr
      • ECO2 mode: 2390 BTU/hr
    • Audible noise:
      • Typical: 39dB(A)
      • Eco mode: 37dB(A)
  • Physical specs:
    • Dimensions (LxWxH): 26.65 x 23.46 x 7.99" (677 x 596 x 203mm) without feet
    • Weight (without lens): 93.7 lb (42.5 kg)
    • Shipping dimensions (LxWxH): 36.34 x 33.19 x 20.20" (923 x 843 x 513mm)
    • Shipping weight: 119 lb (54 kg)
  • Operating environment:
    • Temp: 32°-104° F (0°-40° C)
    • Humidity: 0 - 85% non-condensing
  • Regualtory:
    • TUV
    • UL/CSA/IEC 60950-1
    • FCC Class A
    • CE
    • FDA
    • CCC
    • KC
    • PSE
    • CU
    • SABS
    • BIS
    • VCCI
    • RCM
    • Ukr
    • TER
    • SASO
    • RoHS
    • REACH
    • WEEE
  • Limited Warranty:
    • Three years parts and labor on the projector
    • Three years or 15,000 hours parts and labor on the illumination system
    • Contact an authorized Christie representative for full details of our limited warranty
