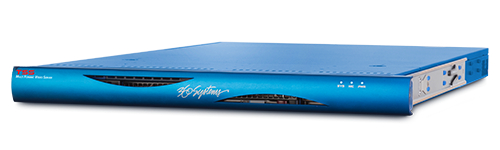

360 Systems TSS-3100
3 Channel HD / SD 4TB Video Server

OUR PART #:  TSS-3100

360 Systems' TSS-3100 is a Multi-Format 4TB Video Server that offers reliability, flexibility, and simplicity...at an affordable price.
Learn More

Call for price! Not available online.
List Price: $24,995.00

Similar Products

360 Systems' TSS-3100 is a Multi-Format 4TB Video Server that offers reliability, flexibility, and simplicity...at an affordable price.

360 Systems’ TSS Class Servers
360 Systems' TSS class servers are engineered and constructed with reliability as the primary focus. Broadcasters rely on their equipment to perform trouble free for years, so with this in mind, 360 Systems' servers are designed utilizing server-grade components, ensuring quality performance.

TSS servers provide an intuitive user interface that offers quick access to the most common day to day functions. Anyone familiar with previous generations of 360 Systems' servers will find the transition to the TSS very easy. Even with the added features offered by the TSS-3100, the ease of operation gives a smooth installation within the broadcast workflow.

Applications:

  • Program storage/Play-to-air
  • Satellite cache
  • File exchange with NLEs
  • Multi-screen projection displays
  • Corporate & Educational Displays
  • Theme parks and attractions
  • Remote workstations for ingest, trim, playlisting
  • More

360 Systems TSS-3100 Standard Features:

  • General:
    • 3 Channels, 1 Record/Playout and 2 Playout
    • 16 Channels Embedded Audio
    • H.264 and MPEG2 Encoding / Decoding
    • Automatic Up/Down/Cross Conversion of HD or SD content
    • Remote Control From PC's via Ethernet
    • Redundant Power / Cooling
    • 1U Form Factor
  • Video:
    • Record and play in 720p, 1080i or SD on any channel
    • Various standard codec and file formats are accepted for playout, such as H.264 or MPEG-2 in .mxf, .mp4, .mpg or .mov containers.
    • Independently configure each output to broadcast in 720p, 1080i or SD
    • Perform jog and shuttle for rapid movement within a clip
    • Smooth slow motion playout
    • 16 channels of embedded audio per video channel
    • Configurable for 29.97/59.94 or 25/50
    • High quality 10 bit video and 24 bit audio support
  • Reliability:
    • Redundant cooling and power
    • Redundant RAID 5 storage
    • Linux based operating system
  • Connectivity:
    • HD-SDI, SD-SDI compatibility
    • Gigabit Ethernet
    • Serial port control for each channel via the VDCP or Odetics protocols for use with automation or remote controls
    • Independent GPI inputs and outputs (12 each) for external triggering or control
  • Software:
    • Automatic conversion plays SD and HD files back-to-back
    • Local software GUI
    • Remote control from a PC
    • Record & playlisting

360 Systems TSS-3100 Specifications:

  • Video:
    • Video Input: 1 Channel
    • Video Outputs: 3 Channels
    • Simultaneous video streams: 3 (1 record, 2 playout, or 3 playout)
    • HD Input/Output: HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M)
    • Video Format: 1080i at 29.97 or 25 Hz; 720p at 59.94 or 50 fps; 525/60 NTSC; 625/50 PAL
    • Encoding Format: H.264 or MPEG2
    • HS/SD Scaling: Up, Down, and Cross Conversion of Any File Format to Selected Output
    • Jog/Shuttle: Zero to 128X, forward/reverse
    • Slow Motion Play with audio: Zero to +/- 2X, forward/reverse
    • Frame Accuracy: Frame accurate play, pause, and stop
    • Genlock Input: Blackburst or tri-level
  • Ancillary Data:
    • Ancillary Data: HD – 608/708 in VANC; SD – Line 21 VBI
    • Audio Inputs/Outputs (per video channel):
      • SDI Embedded Audio: 16 channels
    • Storage:
      • Disk Storage System: SAS array, four – 1 or 2 Terabyte drives, Hardware RAID 5 controller
      • Total Capacity: 4 Terabytes, standard model (8 Terabytes available separately. Contact your Sales Pro for more details.)
      • Drive Replacement: Hot Swappable, removable from behind front panel
  • Connectivity:
    • Networking: Gigabit Ethernet
    • Serial Control: 3, VDCP or Odetics protocols, 9-pin on CXP-5 module (optional-sold separately).
    • GPI Control: 12 Inputs, Outputs, Programmable on CXP-5 module (optional-sold separately)
  • Miscellaneous:
    • Fault Monitoring LEDs: Front Panel LEDs, power, system, network
    • Fault Monitoring Output: GPI output, open collector
    • Software Updates: USB
    • Power Supply: Dual Redundant, 100-250V – 50/60 Hz. 460W, rear panel plug-in
    • Cooling: Redundant fans
    • Chassis: 1-RU x 19" Rack, Weight: approx 48 lb. (22 kg)
  • Expansion Modules:
    • CXP-5: Serial and GPI control module. 1 RU (sold separately)
