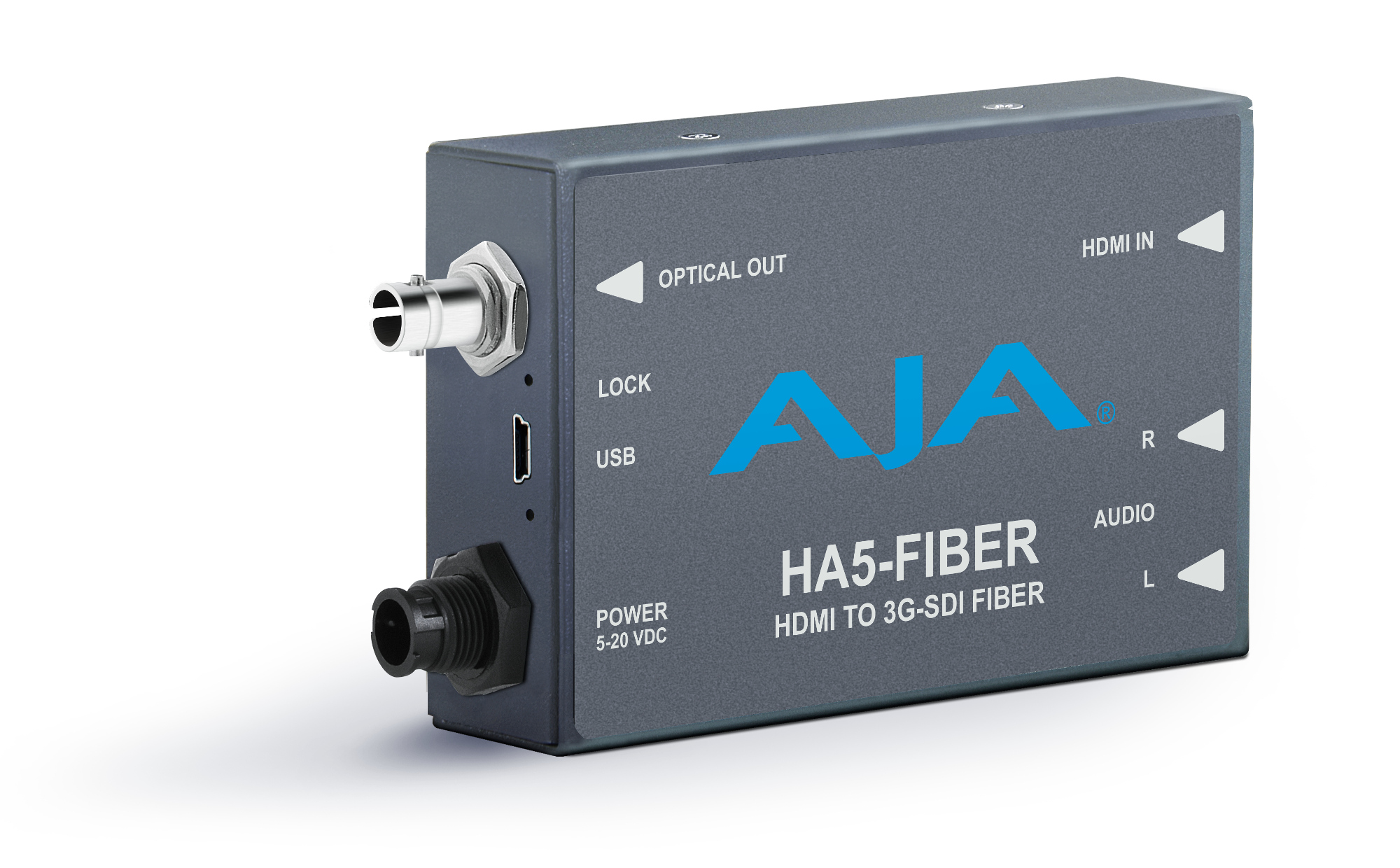

AJA Video Systems Inc HA5-Fiber
HDMI to 3G-SDI over Fiber Video and Audio Mini-Converter

OUR PART #:  HA5-FIBER

Our Price: $695.00
Write the first review.
AJA Video Systems Inc HA5-Fiber
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

AJA's HA5-Fiber converts an HDMI input to 3G-SDI over single mode 1310 nm fiber optic cable (ST-style fiber connector) for transporting HDMI sources over fiber with 1080p 60 support. The small form factor enables this Mini-Converter to easily fit onto the back of a camera or neatly behind an equipment rack. Embedded 8-Channel audio is supported in the fiber output allowing a convenient single cable audio/video connection up to 10 km. The HA5-Fiber also provides 2-Channel RCA style audio inputs for a stereo audio input when needed.

AJA HA5-Fiber Mini-Converter Features:

  • HDMI to 3G-SDI over fiber
  • Supports single mode 1310 nm fiber optic cable with ST transmitter
  • Full HDMI input support including embedded audio
  • Additional 2-Channel RCA style analog audio (-10dBu nominal) input
  • No configuration necessary
  • Includes 39.37" (1 meter) HDMI cable
  • Includes universal power supply with international plug connections
  • 5 year warranty

AJA HA5-Fiber Mini-Converter Specifications:

  • Input Formats:
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080i 50, 59.94, 60
    • (HD) 720p 50, 59.94, 60
    • (SD) 625i
    • (SD) 625p
    • (SD) 576p
    • (SD) 525i
    • (SD) 525p
    • (SD) 480p
  • Output Formats:
    • (HD) 1080i 25, 29.97, 30
    • (HD) 1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1080p 50, 59.94, 60 - SMPTE 425-1 Level A mapping structure 1 (1920 x 1080 4:2:2 10-bit YCbCr)
    • (HD) 720p 50, 59.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
  • Video Input: HDMI with embedded audio, up to eight channels
  • Video Output: Single mode optical fiber, ST connector supporting SMPTE-259/292/424 3G/HD/SD-SDI
  • Audio Input: 2-channel RCA style analog audio (-10dBu nominal)
  • Audio Output: SDI embedded audio
  • Optical Output:
    • Wavelength: 1310 nm
    • Output Power: -2dBm typical
  • Dimensions (WxDxH): 4.4" x 2.4" x 1" (112 x 61 x 25 mm)
  • Weight: 0.3 lb (0.2 kg)
  • Power:
    • Uses AJA power supply model DWP-U-R1, included with purchase
    • 100-240V, 50/60 Hz universal input
    • +5V DC regulated, 4.5 watts
  • Environment:
    • Safe Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)
    • Safe Storage Temperature (Power OFF): -40ºC to 60ºC (-40ºF to 140ºF)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
