Product Overview

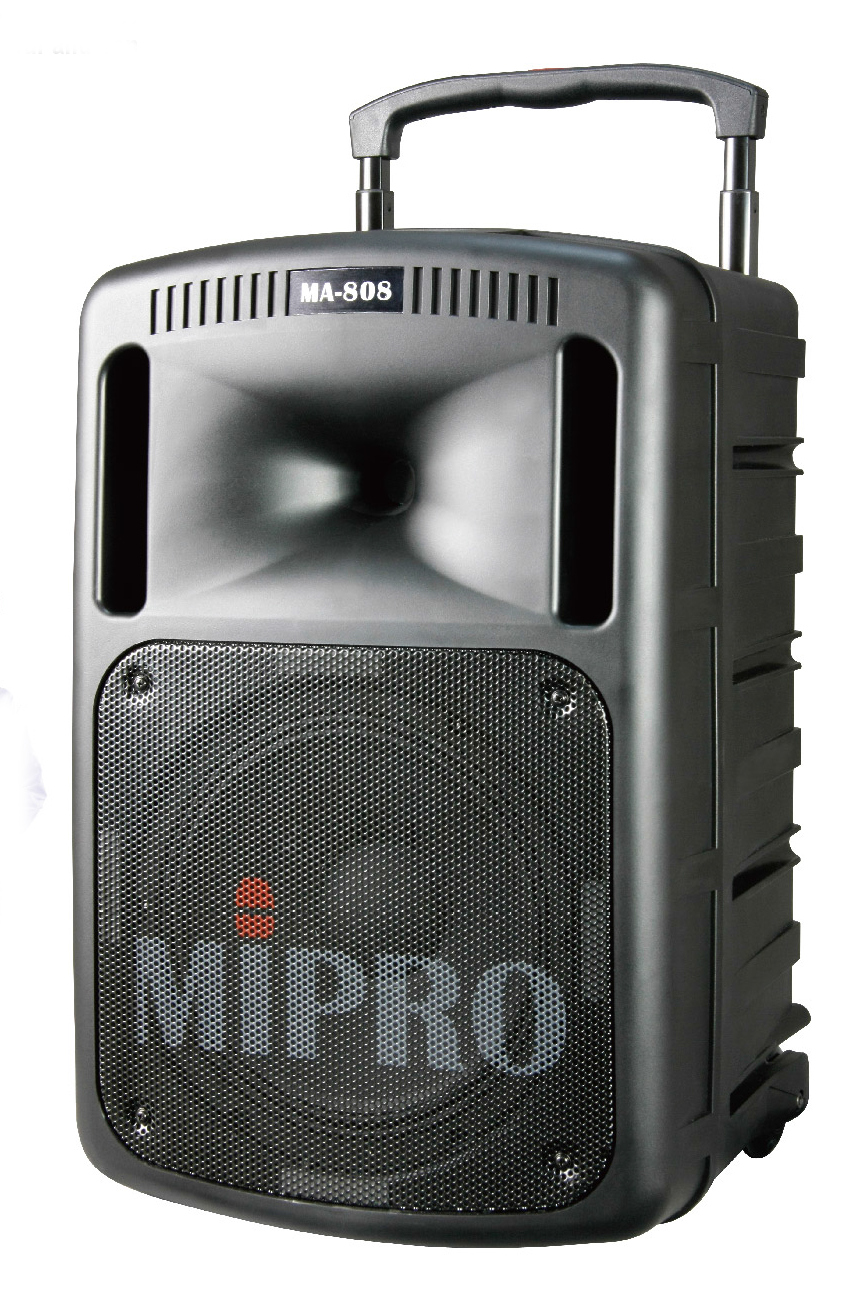

MIPRO's MA-808 is a portable wireless PA system that provides clear, powerful sound for large crowds. The one-piece speaker cabinet houses high-efficient class-D/AB amplifiers that drive high sensitivity two-way loudspeakers.
Ideal Applications:
- School sports events and marching bands
- Places of worship
- Large meetings and public gatherings
- Presentations, seminars and meetings
- Shopping center presentations and promotions
- Aerobic & fitness centers
- Parades & fetes
- Street performers
- Park and recreational facilities
- Eergency and rescue situations
- Weddings & funeral services
- Public auctions
MIPRO MA-808 Features:
- Lightweight Class-D amplifier produces 267-watt audio output.
- Industry’s only master level control enables volume be wirelessly controlled by an optional ACT-32HR transmitter microphone instead of a separate remote.
- Master volume with “Memory” and “Standard” mode options. “Memory” mode saves and recalls last volume level during next poweron. “Standard” mode resets to zero level.
- Up to 4 optional diversity receiver modules with 16 auto-scannable frequencies
- One-touch Scan & ACT sync button for fast and easy channel set-up.
- Built-in Bluetooth music player for wireless audio streaming.
- Retractable handle and sturdy wheels for easy transport.
- Built-in storage compartment for 2 HH or BP transmitters.
- A voice priority feature that mutes the music when wireless microphone is used.
- Built-in AC switching power supply for universal usage and fast battery charge.
- A smart 4-segment battery meter for accurate battery reading and charging status.
- Industry’s only MTM-92 transmitter option for interlinking multiple MA-808 portables wirelessly to extend transmission range& expand coverage.
- Optional lithium rechargeable battery pack for direct replacement of existing battery.
- Speakon extension speaker output (use with MA-808EXP).
- 3 power modes: AC, rechargeable battery and DC jack.
- Suitable for tripod, floor or desk mount.
MIPRO MA-808 Specifications:
- Max. Power Output 267 W: 190W (woofer)|77W (tweeter)
- Amplifier Class D & Class AB
- Sensitivity Typical: 96 dB | Maximum: 111 dB
- T.H.D.< 1%
- Frequency Response 50 Hz – 18 kHz
- Speaker Tweeter: 1.5" Compression Driver; Woofer: 10" Neodyium
- Audio Inputs:
- Wired: XLR×1 & 6.3mm (1/4")×1
- Wireless: UP to 4 wireless microphones
- Line-In: Unbalanced RCA jack
- Bluetooth Connectivity: Yes
- Audio Output: Unbalanced line RCA jack
- Extension Speaker: Speakon output
- Master Volume Control: Manually or Wirelessly via ACT-32HR
- Controls: Tone, Voice Priority & Echo on wireless mics
- Storage: 2 handheld or bodypack transmitters
- Installation: Speaker stand, flat surface or retractable handle & wheels
- Power Supply
- AC: Built-in 100 – 240 V AC switching power supply (Max. Power Consumption: 352 W)
- DC & Battery: 24 – 32 V DC, 12V/4.5AH rechargeable gel cell battery (MB-70× 2) or optional MB-80×2
- Charge Time: Up to 8 hours (automatic charging management)
- Stand-by Time: Up to 6 hours
- Battery Indicator: 4-level Indicator (25 | 50 | 75 | 100%)
- Color: Black
- Dimensions: 14.2" W x 22" H x 13.8" D (360 × 560 × 350 mm)
- Weight Approx. 45 lbs (20.5 kg) | (MB-70 batteriesincluded)
