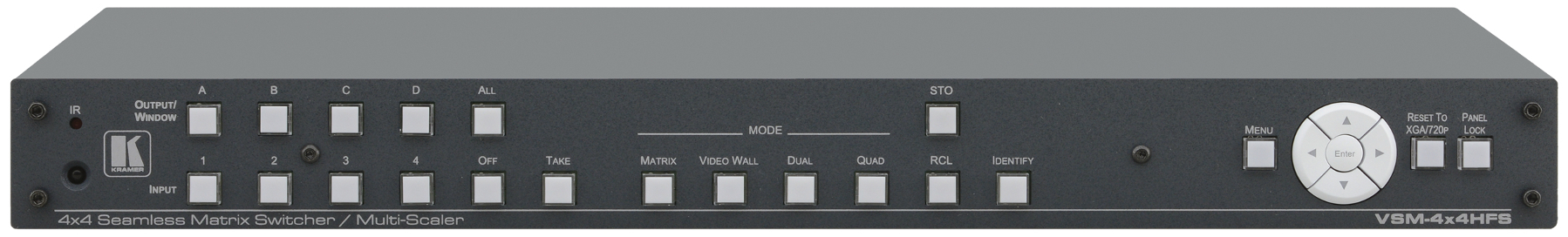

Kramer VSM-4X4HFS
4x4 Seamless Matrix Switcher/Multi-Scaler


A 4x4 HDMI seamless matrix switcher that can also be used as a 2x2 video wall driver or dual and quad multi-viewers...
Learn More
Our Price: $2,236.00
List Price: $2,795.00
You save 20%!
Write the first review.
Kramer VSM-4X4HFS
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

A 4x4 HDMI seamless matrix switcher that can also be used as a 2x2 video wall driver or dual and quad multi-viewers, the Kramer VSM-4x4HFS provides switching between inputs with a clean video cut (frame-to-frame switching with no glitches). The VSM-4x4HFS also offers support for HDMI resolutions with deep color, up to 8 channels of audio, and includes per-port HDCP and EDID settings.

Kramer VSM-4x4HFS Includes:

  • VSM-4x4HFS unit
  • Power cord
  • Rack "ears"
  • IR remote control

Kramer VSM-4x4HFS Features:

  • PixPerfect™ Scaling Technology - Kramer’s precision pixel mapping and high quality scaling technology
  • HDTV Compatible
  • HDCP Compliant
  • 4 HDMI Inputs and 4 Scaled HDMI Outputs
  • Selectable Operation Modes - Matrix switcher, video wall, dual display (PIP/P&P) and quad display
  • Bezel Correction Options - In video wall mode
  • Seamless Switching - Frame-to-frame video cuts (zero transition time)
  • HDMI Support - Deep Color
  • HDCP and EDID Settings per Port
  • Resolution - VGA to WUXGA and 480i to 1080p input, 480p to 1080p output
  • Embedded Audio - Supports Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD®, LPCM 2CH/6CH/8CH, AC3
  • Multiple Output Aspect Ratios
  • Built-in ProcAmp - Color, hue, sharpness, noise, contrast and brightness
  • Flexible Control Options - Front panel buttons, IR remote control with OSD (On-Screen Display), RS-232, Ethernet with built-in Web browser
  • 4 Preset Memory Locations - Quick access to common IN-OUT configurations and non-volatile memory settings in each operation mode
  • Mini USB Connector - For upgrading firmware

Kramer VSM-4x4HFS Specifications:

  • Inputs: (4) HDMI connectors (HDMI, HDCP version 1.1)
  • Outputs: (4) HDMI connectors (HDMI, HDCP version 1.1)
  • Output Resolutions:
    • Native: 480p, 576p, 720p50, 720p60, 1080p24, 1080p50, 1080p60, 1024x768, 1280x800, 1280x1024, 1366x768, 1440x900, 1600x900, 1600x1200, 1680x1050, or 1920x1200
  • Video Latency: Progressive input: 30ms (typical)
  • Controls:
    • Front panel buttons
    • USB port for programming
  • Power Source:
    • 100-240V AC
    • 27VA max
  • Environmental:
    • Operating Temperature: 32° to 104°F (0° to +40°C)
    • Storage Temperature: -40° to 158°F (-40° to +70°C)
    • Humidity:
      • 10% to 90%
      • RHL non-condensing
  • Physical:
    • Product Dimensions: 19" W x 9.34 D x 1U H (43.6 x 23.72 x 4.36 cm)
    • Product Weight: approx. 4.0 lbs (1.8 kg)
    • Shipping Dimensions: 20.67" W x 12.99" D x 4.21" H (52.50 x 33.00 x 10.70 cm)
    • Shipping Weight: approx. 6.0 lbs (2.7 kg)
