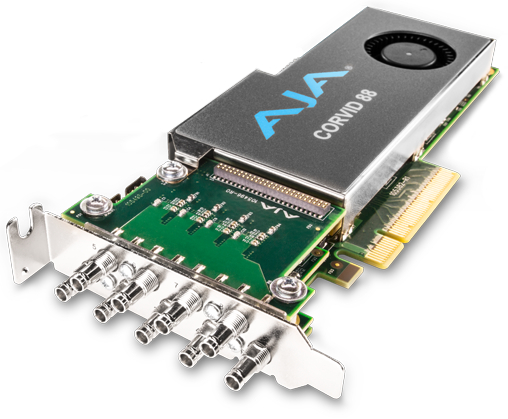

AJA Video Systems Inc Corvid 88-T
Standard-Profile High-density I/O Card


You can maximize your video and audio I/O capacity with AJA's Corvid 88.
Learn More
Our Price: $2,795.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


AJA Video Systems Inc Corvid 88-T
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

You can maximize your video and audio I/O capacity with AJA's Corvid 88. Corvid 88 lets you configure each SDI connection individually as input or output and mix formats for up to 8 HD or SD channels, all on a single card. As demand rises for higher resolutions, it lets you combine SDI connections for multiple 4K/UHD channels, giving incredible flexibility and futureproofing with playout and ingest servers or channel-in-a-box systems. This particular model is the Corvid 88-T which is the Standard-profile I/O card.

Multi-stream, Multi-format PCIe I/O Card
Corvid 88 gives AJA Developer Partner applications access to up to 8 simultaneous input and output streams on a single PCIe card, so it's ideal for ingest and playout servers as well as channel-in-a-box setups.

High-Density Ingest and Output
Each of the Corvid 88 BNC connections can be set programmatically as either an input or output, with each able to support a different video format, as long as all formats use the same clock timing. Connections can also be linked together to Dual Link or 4K/UHD format compatibility.

High Frame Rate support
Corvid 88 offers support for 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. Working at frame rates of 48p, 50p and 60p, all help ensure smooth motion for even the most demanding 4K and UHD applications.

High frame rates are not limited to 4K and UHD with Corvid 88; there's also support for multiple 720p and 1080p HD inputs and outputs at frame rates up to 50p and 60p, making Corvid 88 extremely versatile for both your current and future needs.

LTC and Reference input
Corvid 88 features one external, switchable LTC/Reference input connection on the back of the card. Additionally, a second LTC input is available on an internal header to provide additional reference to Corvid 88.

An onboard RS-422 connection is available as either an external connection on the full-sized Corvid 88 or as an internal connection on the low-profile Corvid 88. RS-422 allows control of external devices for frame accurate ingest and layoffs.

Note: Corvid 88 is also available in a Fanless version for use in sound sensitive environments. Contact your Sales Pro for more information.

AJA Corvid 88-T Features:

  • PCIe Express Gen 2.0 8-lane
  • Up to 8 independent* channels 3G, HD, SD-SDI I/O
    *Note: Channels mustuse the same master clock. Eg, 29.97 and 59.94
  • All SD/HD/2Kx1080/4K video formats
  • 3G input/output for High Frame Rate (HFR) support
  • 8/10-bit YCbCr and 12-bit RGB frame buffer formats
  • 4 independent Mixer/Keyer widgets
  • 8 independent 16-ch 48kHz SDI embedded audio I/O engines
  • Analog Color Black or HD Tri-Level Sync
  • 3-year warranty

AJA Corvid 88-T Specifications:

  • Video Formats
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (HD) 1080i 25, 29.97, 30
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
    • (HD) 720p 50, 50.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
  • Video Input and or Output Digital: 8 x 3G-SDI BNC
  • Audio Input Digital: 16-Channel 24-bit SDI embedded, 48 kHz synchronous
  • Audio Output Digital: 16-Channel 24-bit SDI embedded, 48 kHz synchronous
  • Physical:
    • Dimensions (w x d x h): 0.875" x 7.25" x 4.875" (22.23 × 184.15 × 123.83mm)
    • Weight:  0.4 lb (0.2 kg)
  • Power: 17 watts typical, 19 watts max
  • Operating Environment:
    • Airflow across the board for fanless models
    • 100LFM @25deg C or lower, computer chassis must have vented opening to exterior, immediately adjacent to PCIe shield (heatsink side), to permit 100LFM across heatsink
    • Operating Altitude: <3,000 meters (<10,000 feet)
