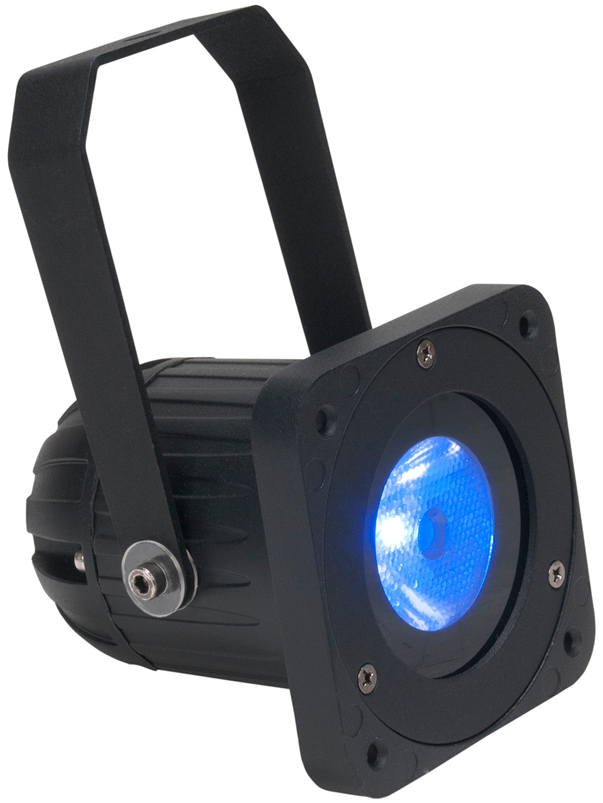

Elation Pro Lighting ELAR Q1
18W RGBW IP65 LED PAR Type Fixture

OUR PART #:  ELAR-Q1

The Elation Pro Lighting ELAR Q1™, part of Elation's Elar Series, is IP65 rated and features a single 18W RGBW Quad LED...
Learn More
Our Price: $200.00
List Price: $250.00
You save 20%!
Write the first review.
Elation Pro Lighting ELAR Q1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Elation Pro Lighting ELAR Q1™, part of Elation's Elar Series, is IP65 rated and features a single 18W RGBW Quad LED, a 7° beam/14° field angles, four DMX channels, RDM (remote device management) with direct DMX auto addressing option, as well as flicker-free operation for broadcast TV and FILM, 24VDC, 18W max power consumption, and an integrated adjustable yoke or flush mounting options.

Elation Pro Lighting ELAR Q1 Features:

  • IP65 Rated
  • 7° Beam/14° Field Angles
  • RDM (Remote Device Management)
  • Direct DMX Auto Addressing Option
  • 100,000 Average Hour LED Life

Elation Pro Lighting ELAR Q1 Specifications:

  • Source:
    • 18W RGBW Quad LED
    • 100,000 Average Hour LED Life
  • Photometric Data: 9,310 LUX (865 FC) @3.3 ft. (1m) 7° Full ON
  • Color: 16.7 Million Colors / 8 Bits Per Color
  • Control / Connections:
    • Four DMX Channels
    • 8-in Data/Power Combo IP Cables In/Out
    • Multiple Unit Linkable (Max 15 units per ELAR Q1 PSU™-sold separately)
  • Physical:
    • Dimensions (LxWxH): 3.8" x 2.9" x 2.9" (96 x 73 x 73mm)
    • Weight: 1.1 lbs. (0.5kg)
  • Electrical / Thermal:
    • 24VAC
    • 18W Max Power Consumption
    • 14°F to 113°F (-10°C to 45°C)
  • Approvals / Ratings:
    • CE
    • cETLus
    • IP65
Elation Pro Lighting ELAR Q1 PSU Power Supply Unit for ELAR Q1, model EAR925
Elation Pro Lighting ELAR Q1 PSU Power Supply Unit for ELAR Q1, model EAR925
The IP65 rated ELAR Q1 PSU™ power supply unit from Elation Pro Lighting, designed for use with their ELAR Q1, part of the ELAR series, features 24VDC output which can support (15) max linked ELAR Q1™ units (sold separately) each, 8-pin ...
437.40 486.00 10

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
Elation Pro Lighting 60413010144  Starter Y Cable for Q1
Elation Pro Lighting 60413010144 Starter Y Cable for Q1
Starter Y cable for Elation Q1 light fixture.
69.95

Usually ships in 7-14 business days.
Need it sooner? Call us!
Free Shipping Available
Elation Pro Lighting 60413990038  9.8' Cable for ELAR Q1
Elation Pro Lighting 60413990038 9.8' Cable for ELAR Q1
9.8' cable for the Elation ELAR Q1 LED PAR fixture.
64.95

In Stock
Free Shipping Available
