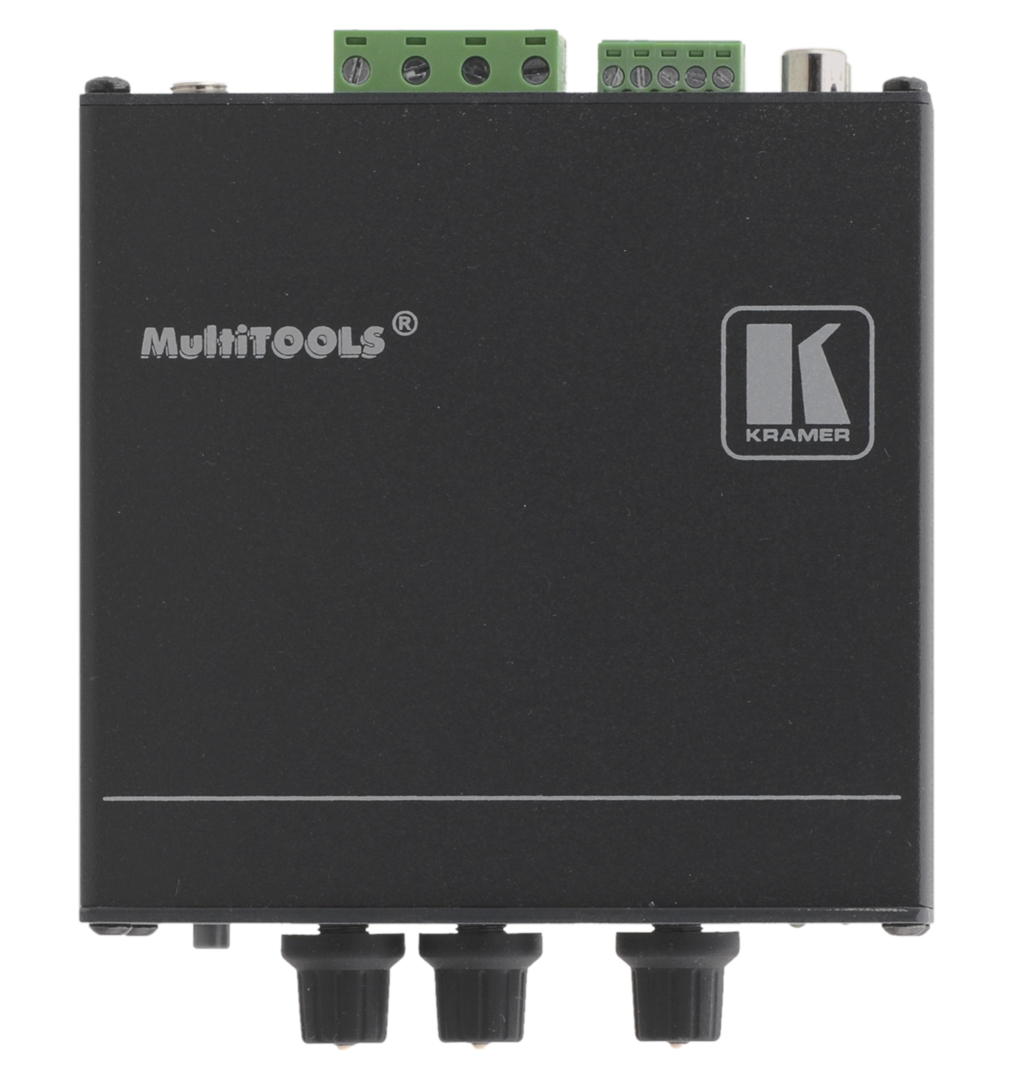

Kramer 907XL
Stereo Power Amplifier/Mixer, 40W

OUR PART #:  907XL

The Kramer 907xl is a high-performance power amplifier for line-level stereo audio signals.
Learn More
Sale Price: $245.03
List Price: $450.00
You save 46%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Kramer 907XL
Qty:
In Stock
Similar Products

The Kramer 907xl is a high-performance power amplifier for line-level stereo audio signals. It accepts a balanced stereo audio signal on a terminal block connector and an unbalanced stereo signal on RCA connectors. It delivers 40 watts per channel into an 8 Ohm load.

Kramer 907xl Features:

  • Controls - 1 volume control knob for each input & mute button.
  • Gain Control DIP-Switches.
  • High Efficiency - Class D operation.
  • Mute and On Indicator LEDs.
  • Compact MultiTOOLS® - Up to 4 units can be rack mounted side-by-side in a1U rack space with the optional RK-1 universal rack adapter.

Kramer 907xl Specifications:

  • Inputs
    • 1 balanced stereo audio on a terminal block connector
    • 1 unbalanced stereo audio on RCA connectors
  • Output: Speaker output on a terminal block connector
  • Output Power: 40W per channel into 8 Ohm
  • Output Music Power: 150W per channel into 8 Ohm
  • Input Sensitivity: 1.2Vrms
  • Amplifier Type: Class D
  • Voltage Gain: 36 dB (x10)
  • Bandwidth (-3 dB): 25 kHz
  • S/N Ratio: 66 dB
  • Coupling:
    • Inputs: AC
    • Outputs: DC
  • Audio THD + Noise: 1.2%
  • Audio 2nd Harmonic: 1%
  • Power Consumption:
    • 24V DC
    • 2.2 A
  • Controls:
    • 2 gain DIP - switches
    • mute button
    • 2 input level knobs
    • 1 volume knob
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -40° to +70°C (-40° to 158°F)
  • Humidity:
    • 10% to 90%
    • RHL non-condensing
  • Included Accessories: Power supply
  • Product Dimensions (W x D x H): 10.68 x 10.35 x 4.36cm (4.20 x 4.07 x 1.72")
  • Product Weight: 0.4 kg (0.8 lbs) approx
  • Shipping Dimension (W x D x H): 35.10 x 21.20 x 7.20cm (13.82 x 8.35 x 2.83" )
  • Shipping Weight: 1.3kg (2.9lbs) approx
