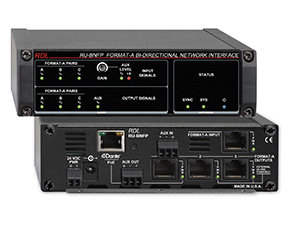

Radio Design Labs RU-BNFP
Format-A Bi-Directional Network Interface, With PoE

OUR PART #  RU-BNFP

Our Price: $586.44
List Price: $840.52
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The RU-BNF is an RDL Format-A sender/receiver that connects to a Dante-enabled network, providing all the features of an RDL RU-FN Format A to Network Interface and an RU-NFD Network to Format-A Interface/Distributor. The RU-BNF converts three Dante audio channels to RDL Format-A. Each network channel corresponds to Pair A, B or C of the Format-A outputs. The unit converts a fourth Dante audio channel to a balanced line-level AUX output.

The RU-BNF is powered from an external 24 Vdc power supply, available separately. The external supply powers the RU-BNF, Format-A senders connected to the Format-A input jack and Format-A receivers connected to all three Format-A outputs. The RU-BNFP is equipped for PoE which powers the RU-BNF, Format-A senders connected to the Format-A input, and Format-A receivers connected to the primary Format-A output jack. Audio is also distributed to the other two output jacks. Remote Format-A receivers connected to those other two output jacks are only powered from the RU-BNFP if an external 24 Vdc power supply is connected. If PoE power and an external 24 Vdc supply are both feeding an RU-BNFP, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external 24 V supply. The power feeding each Format-A RJ45 connector is separately protected by an automatically resetting fuse. A power LED is associated with each connector, facilitating identification of wiring faults.

Radio Design Labs RU-BNF Features:

  • Converts RDL Format-A and Aux Source to Four DanteNetwork Channels
  • Easy Installation with Format-A Connections on RJ45through CATx Cable
  • Format-A Audio Sources from Pairs A, B and CConverted to Dante
  • Fourth Dante Audio Channel Fed from Unbalanced orBalanced Aux Line Input
  • Front-Panel Gain Adjustment with Dual-LED VU Meterfor Aux Input
  • Signal LEDs Indicate Audio for Each of the ThreeAudio Source Format-A Pairs
  • Converts Four Dante Network Audio Signals to RDLFormat-A and Aux
  • Three Dante Audio Signals Feed Format-A Output PairsA, B and C
  • Fourth Dante Audio Signal Feeds Auxiliary Balanced +4dBu Line Output
  • Format-A Pairs are Distributed to Three SeparateFormat-A Output Jacks
  • Signal LEDs Indicate Audio for Each of the FourReceived Dante Audio Signals
  • External 24 Vdc Supply Powers All Connected Format-AModules through RJ45 Jacks
  • PoE (RU-BNFP) Powers Format-A Input and PrimaryFormat-A Output RJ45 Jacks
  • High Resolution 24 Bit Analog to Digital and Digitalto Analog Conversion
  • Legendary RDL Analog Filtering Enhances Superb AudioPerformance
  • LED Indicators Show Network Sync Status
  • Normal or Hot-Standby Operation from PoE (ModelRU-BNFP)'
  • Compatible with Wide Array of RDL Format-A Active andPassive Senders and Receivers
  • Equipped for Rack Mounting or Surface Mounting

Radio Design Labs RU-BNF Specifications:

  • Network Connector: RJ45 with Link and Speed indicators
  • Digital Audio Ethernet Protocol: Dante
  • Transmission Rate: 100 Mbps
  • Sample Rates Supported: 44.1 kHz, 48 kHz (default)
  • Bit Depth Supported: 24 bits
  • Audio Operating Levels: -18 dBFS = +4 dBu
  • Indicators (18): Power In (1); Power Out (4); Audio Signal LEDs (7); AUX Dual-LED VU Meter (2); Network Sys and Sync (2), Ethernet Link and Speed (2)
  • Power Connections (2): Power Jack; Detachable Terminal Block
  • Ambient Operating Environment: 0° C to 40° C
  • Power Requirement: 24 Vdc @ 150 mA plus connected loads, or PoE (RU-BNFP)
  • PoE (RU-BNFP): Class 0, IEEE 802.3af
  • Dimensions: 5.8" (15 cm) W; 1.7" (4.3 cm) H; 5.2" (13.2 cm) D
  • Package Type: Cardboard Box
  • Package Dimensions: 6 x 6 x 2.625 in.
  • Shipping Weight: 1.745 lbs

Radio Design Labs RU-BNFP
Format-A Bi-Directional Network Interface, With PoE

OUR PART #  RU-BNFP

Product Information:

The RU-BNF is an RDL Format-A sender/receiver that connects to a Dante-enabled network, providing all the features of an RDL RU-FN Format A to Network Interface and an RU-NFD Network to Format-A Interface/Distributor. The RU-BNF converts three Dante audio channels to RDL Format-A. Each network channel corresponds to Pair A, B or C of the Format-A outputs. The unit converts a fourth Dante audio channel to a balanced line-level AUX output.

The RU-BNF is powered from an external 24 Vdc power supply, available separately. The external supply powers the RU-BNF, Format-A senders connected to the Format-A input jack and Format-A receivers connected to all three Format-A outputs. The RU-BNFP is equipped for PoE which powers the RU-BNF, Format-A senders connected to the Format-A input, and Format-A receivers connected to the primary Format-A output jack. Audio is also distributed to the other two output jacks. Remote Format-A receivers connected to those other two output jacks are only powered from the RU-BNFP if an external 24 Vdc power supply is connected. If PoE power and an external 24 Vdc supply are both feeding an RU-BNFP, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external 24 V supply. The power feeding each Format-A RJ45 connector is separately protected by an automatically resetting fuse. A power LED is associated with each connector, facilitating identification of wiring faults.

Radio Design Labs RU-BNF Features:

  • Converts RDL Format-A and Aux Source to Four DanteNetwork Channels
  • Easy Installation with Format-A Connections on RJ45through CATx Cable
  • Format-A Audio Sources from Pairs A, B and CConverted to Dante
  • Fourth Dante Audio Channel Fed from Unbalanced orBalanced Aux Line Input
  • Front-Panel Gain Adjustment with Dual-LED VU Meterfor Aux Input
  • Signal LEDs Indicate Audio for Each of the ThreeAudio Source Format-A Pairs
  • Converts Four Dante Network Audio Signals to RDLFormat-A and Aux
  • Three Dante Audio Signals Feed Format-A Output PairsA, B and C
  • Fourth Dante Audio Signal Feeds Auxiliary Balanced +4dBu Line Output
  • Format-A Pairs are Distributed to Three SeparateFormat-A Output Jacks
  • Signal LEDs Indicate Audio for Each of the FourReceived Dante Audio Signals
  • External 24 Vdc Supply Powers All Connected Format-AModules through RJ45 Jacks
  • PoE (RU-BNFP) Powers Format-A Input and PrimaryFormat-A Output RJ45 Jacks
  • High Resolution 24 Bit Analog to Digital and Digitalto Analog Conversion
  • Legendary RDL Analog Filtering Enhances Superb AudioPerformance
  • LED Indicators Show Network Sync Status
  • Normal or Hot-Standby Operation from PoE (ModelRU-BNFP)'
  • Compatible with Wide Array of RDL Format-A Active andPassive Senders and Receivers
  • Equipped for Rack Mounting or Surface Mounting

Radio Design Labs RU-BNF Specifications:

  • Network Connector: RJ45 with Link and Speed indicators
  • Digital Audio Ethernet Protocol: Dante
  • Transmission Rate: 100 Mbps
  • Sample Rates Supported: 44.1 kHz, 48 kHz (default)
  • Bit Depth Supported: 24 bits
  • Audio Operating Levels: -18 dBFS = +4 dBu
  • Indicators (18): Power In (1); Power Out (4); Audio Signal LEDs (7); AUX Dual-LED VU Meter (2); Network Sys and Sync (2), Ethernet Link and Speed (2)
  • Power Connections (2): Power Jack; Detachable Terminal Block
  • Ambient Operating Environment: 0° C to 40° C
  • Power Requirement: 24 Vdc @ 150 mA plus connected loads, or PoE (RU-BNFP)
  • PoE (RU-BNFP): Class 0, IEEE 802.3af
  • Dimensions: 5.8" (15 cm) W; 1.7" (4.3 cm) H; 5.2" (13.2 cm) D
  • Package Type: Cardboard Box
  • Package Dimensions: 6 x 6 x 2.625 in.
  • Shipping Weight: 1.745 lbs
