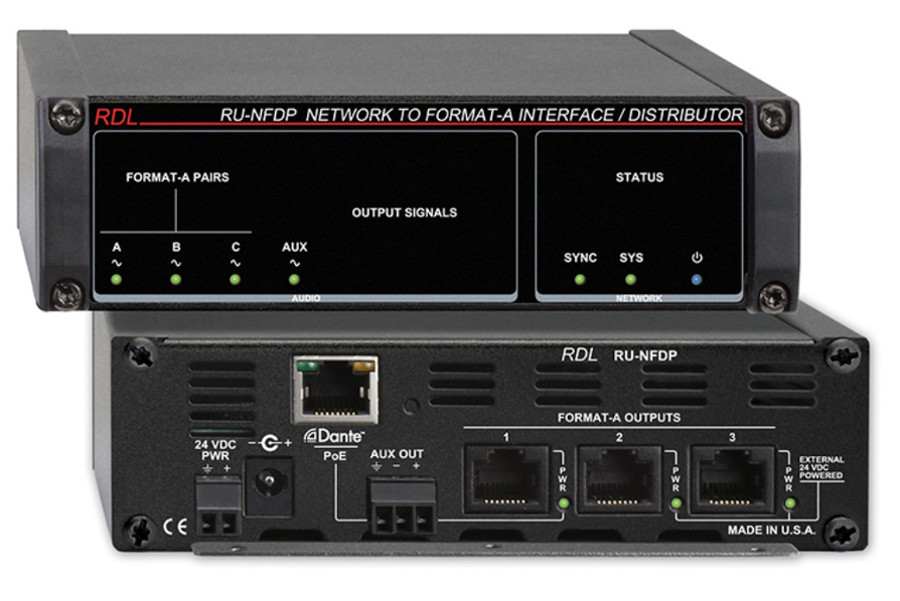

Radio Design Labs RU-NFDP
Network to Format-A Interface/Distributor, With PoE

OUR PART #  RU-NFDP

Our Price: $518.93
List Price: $743.75
You save 30%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Radio Design Labs RU-NFD is an RDL Format-A sender/distributor that connects to a Dante-enabled network. It converts three Dante audio channels to RDL Format-A. Each network channel corresponds to Pair A, B or C of the Format-A outputs. The unit converts a fourth Dante audio channel to a balanced line-level AUX output.

The RU-NFD is powered from an external 24 Vdc power supply, available separately. The external supply powers the RU-NFD and Format-A receivers connected to all three Format-A outputs. The RU-NFDP is equipped for PoE which powers the RU-NFD and Format-A receivers connected to the primary Format-A output jack. Audio is also distributed to the other two output jacks. Remote Format-A receivers connected to those other two output jacks are only powered from the RU-NFDP if an external 24 Vdc power supply is connected. If PoE power and an external 24 Vdc supply are both feeding an RU-NFDP, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external 24 V supply. The power feeding each Format-A RJ45 connector is separately protected by an automatically resetting fuse. A power LED is associated with each connector, facilitating identification of wiring faults.

PoE relies on the use of a PoE enabled network switch. The RU-NFDP will reserve power from the switch even while being powered from an external 24 Vdc supply.

The RU-NFD is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Built to last. Built to outperform.

Radio Design Labs RU-NFDP Features:

  • Converts Four Dante Network Audio Signals to RDLFormat-A and Aux
  • Easy Installation with Format-A Connections on RJ45through CATx Cable
  • Three Dante Audio Signals Feed Format-A Output PairsA, B and C
  • Fourth Dante Audio Signal Feeds Auxiliary Balanced +4dBu Line Output
  • Format-A Pairs are Distributed to Three SeparateFormat-A Output Jacks
  • Signal LEDs Indicate Audio for Each of the FourReceived Network Signal Channels
  • High Resolution 24 Bit Digital to Analog Conversion
  • Legendary RDL Analog Filtering Enhances Superb AudioPerformance
  • Powers Remote Format-A Receivers through PrimaryOutput Jack
  • External 24 Vdc Supply Powers Format-A Receiversthrough All Output Jacks
  • LED Indicators Show Network Sync Status
  • Outputs Mute when Digital Audio Inputs are Inactive
  • Normal or Hot-Standby Operation from PoE (ModelRU-NFDP)
  • Compatible with Wide Array of RDL Format-A Active andPassive Receivers
  • Equipped for Rack Mounting or Surface Mounting

Radio Design Labs RU-NFDP Specifications:

  • Digital Audio Ethernet Protocol: Dante
  • Transmission Rate: 100 Mbps
  • Sample Rates Supported: 44.1 kHz, 48 kHz (default)
  • Bit Depth Supported: 24 bits
  • Audio Operating Levels: -18 dBFS = +4 dBu
  • Format-A Outputs: RDL Format-A RJ45 (3)
  • Format-A Signal Pairs Used (3): A, B, C (each Format-A output)
  • Frequency Response: 20 Hz to 20 kHz (+/- 0.75 dB)
  • THD+N: < 0.1%
  • Noise below +4 dBu: < -85 dB (pair active); < -100 dB (pair muted)
  • Crosstalk: < 80 dB (20 Hz to 20 kHz)
  • Headroom above +4 dBu: > 18 dB
  • Indicators (12): Power In (1); Power Out (3); Audio Signal LEDs (4), Network Sys and Sync (2), Ethernet Link and Speed (2)
  • Power Connections (2): Power Jack; Detachable Terminal Block
  • Ambient Operating Environment: 0° C to 40° C
  • Power Requirement: 24 Vdc @ 120 mA plus connected loads, or PoE (RU-FNP)
  • PoE (RU-NFDP): Class 0, IEEE 802.3af
  • Dimensions: 5.8" (15 cm) W; 1.7" (4.3 cm) H; 5.2" (13.2 cm) D
  • Package Type: Cardboard Box
  • Package Dimensions: 6 x 6 x 2.625 in.
  • Shipping Weight: 1.63 lbs

Radio Design Labs RU-NFDP
Network to Format-A Interface/Distributor, With PoE

OUR PART #  RU-NFDP

Product Information:

The Radio Design Labs RU-NFD is an RDL Format-A sender/distributor that connects to a Dante-enabled network. It converts three Dante audio channels to RDL Format-A. Each network channel corresponds to Pair A, B or C of the Format-A outputs. The unit converts a fourth Dante audio channel to a balanced line-level AUX output.

The RU-NFD is powered from an external 24 Vdc power supply, available separately. The external supply powers the RU-NFD and Format-A receivers connected to all three Format-A outputs. The RU-NFDP is equipped for PoE which powers the RU-NFD and Format-A receivers connected to the primary Format-A output jack. Audio is also distributed to the other two output jacks. Remote Format-A receivers connected to those other two output jacks are only powered from the RU-NFDP if an external 24 Vdc power supply is connected. If PoE power and an external 24 Vdc supply are both feeding an RU-NFDP, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external 24 V supply. The power feeding each Format-A RJ45 connector is separately protected by an automatically resetting fuse. A power LED is associated with each connector, facilitating identification of wiring faults.

PoE relies on the use of a PoE enabled network switch. The RU-NFDP will reserve power from the switch even while being powered from an external 24 Vdc supply.

The RU-NFD is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Built to last. Built to outperform.

Radio Design Labs RU-NFDP Features:

  • Converts Four Dante Network Audio Signals to RDLFormat-A and Aux
  • Easy Installation with Format-A Connections on RJ45through CATx Cable
  • Three Dante Audio Signals Feed Format-A Output PairsA, B and C
  • Fourth Dante Audio Signal Feeds Auxiliary Balanced +4dBu Line Output
  • Format-A Pairs are Distributed to Three SeparateFormat-A Output Jacks
  • Signal LEDs Indicate Audio for Each of the FourReceived Network Signal Channels
  • High Resolution 24 Bit Digital to Analog Conversion
  • Legendary RDL Analog Filtering Enhances Superb AudioPerformance
  • Powers Remote Format-A Receivers through PrimaryOutput Jack
  • External 24 Vdc Supply Powers Format-A Receiversthrough All Output Jacks
  • LED Indicators Show Network Sync Status
  • Outputs Mute when Digital Audio Inputs are Inactive
  • Normal or Hot-Standby Operation from PoE (ModelRU-NFDP)
  • Compatible with Wide Array of RDL Format-A Active andPassive Receivers
  • Equipped for Rack Mounting or Surface Mounting

Radio Design Labs RU-NFDP Specifications:

  • Digital Audio Ethernet Protocol: Dante
  • Transmission Rate: 100 Mbps
  • Sample Rates Supported: 44.1 kHz, 48 kHz (default)
  • Bit Depth Supported: 24 bits
  • Audio Operating Levels: -18 dBFS = +4 dBu
  • Format-A Outputs: RDL Format-A RJ45 (3)
  • Format-A Signal Pairs Used (3): A, B, C (each Format-A output)
  • Frequency Response: 20 Hz to 20 kHz (+/- 0.75 dB)
  • THD+N: < 0.1%
  • Noise below +4 dBu: < -85 dB (pair active); < -100 dB (pair muted)
  • Crosstalk: < 80 dB (20 Hz to 20 kHz)
  • Headroom above +4 dBu: > 18 dB
  • Indicators (12): Power In (1); Power Out (3); Audio Signal LEDs (4), Network Sys and Sync (2), Ethernet Link and Speed (2)
  • Power Connections (2): Power Jack; Detachable Terminal Block
  • Ambient Operating Environment: 0° C to 40° C
  • Power Requirement: 24 Vdc @ 120 mA plus connected loads, or PoE (RU-FNP)
  • PoE (RU-NFDP): Class 0, IEEE 802.3af
  • Dimensions: 5.8" (15 cm) W; 1.7" (4.3 cm) H; 5.2" (13.2 cm) D
  • Package Type: Cardboard Box
  • Package Dimensions: 6 x 6 x 2.625 in.
  • Shipping Weight: 1.63 lbs
