Atlas IED HT600 600-Watt 70.7V Line Transformer

OUR PART #: HT600 MFR #: HT600

Copied to clipboard

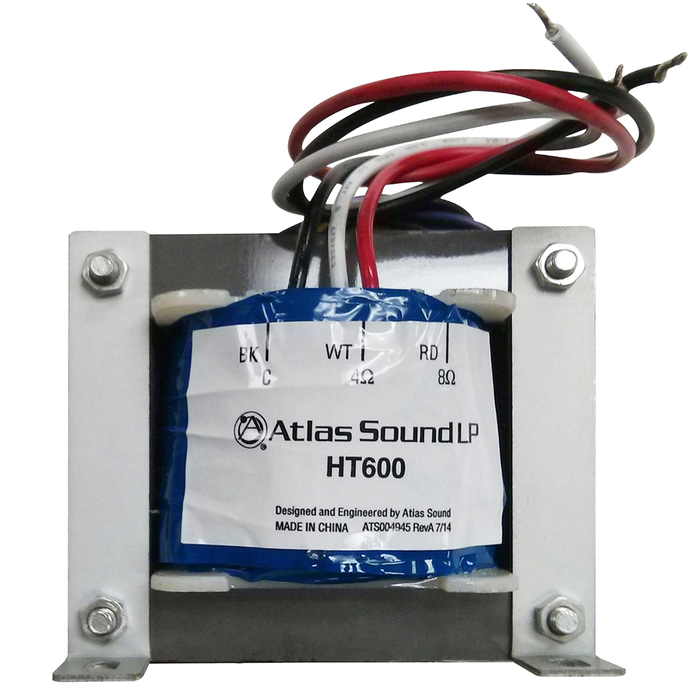

Atlas IED HT600 600-Watt 70.7V Line Transformer Image 1
Atlas IED HT600 600-Watt 70.7V Line Transformer
Our Price: $207.99
List Price: $256.99
You save 19%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$6/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Atlas Sound HT600 is a high power-handling transformer with minimal insertion loss and wide frequency response that provides quality line matching of loudspeakers in high power sound systems.

The unit is constructed using audio grade laminations and offers primary taps at 150, 300, and 600-watts with secondary impedance settings for 4O and 8O. Insertion loss does not exceed 2dB and operates within a frequency range of +1dB from 30Hz – 15kHz.

The transformer is designed for external mounting to surfaces other than the loudspeaker.

Atlas Sound HT600 Features:

  • Constructed Using Audio Grade Laminations
  • Frequency Response is 30Hz - 15KHz
  • High Power Handling
  • High Quality Matching Transformer with Only 2 dB Insertion Loss
  • Primary Taps of 150, 300, and 600-Watts
  • Secondary Outputs Offer Both 4 Ohm and 8 Ohm Impedance

Atlas Sound HT600 Specifications:

  • Frequency Response: 30Hz - 15KHz
  • Power Taps: 150, 300 and 600 Watts
  • Power Rating: 600W
  • Primary Voltage: 70.7V
  • Dimensions (H x W x D): 3.08 x 3.785 x 3.49" (7.82 x9.61 x 8.86 cm)
  • Shipping Weight: 6.218 lbs (2.83 kgs)
