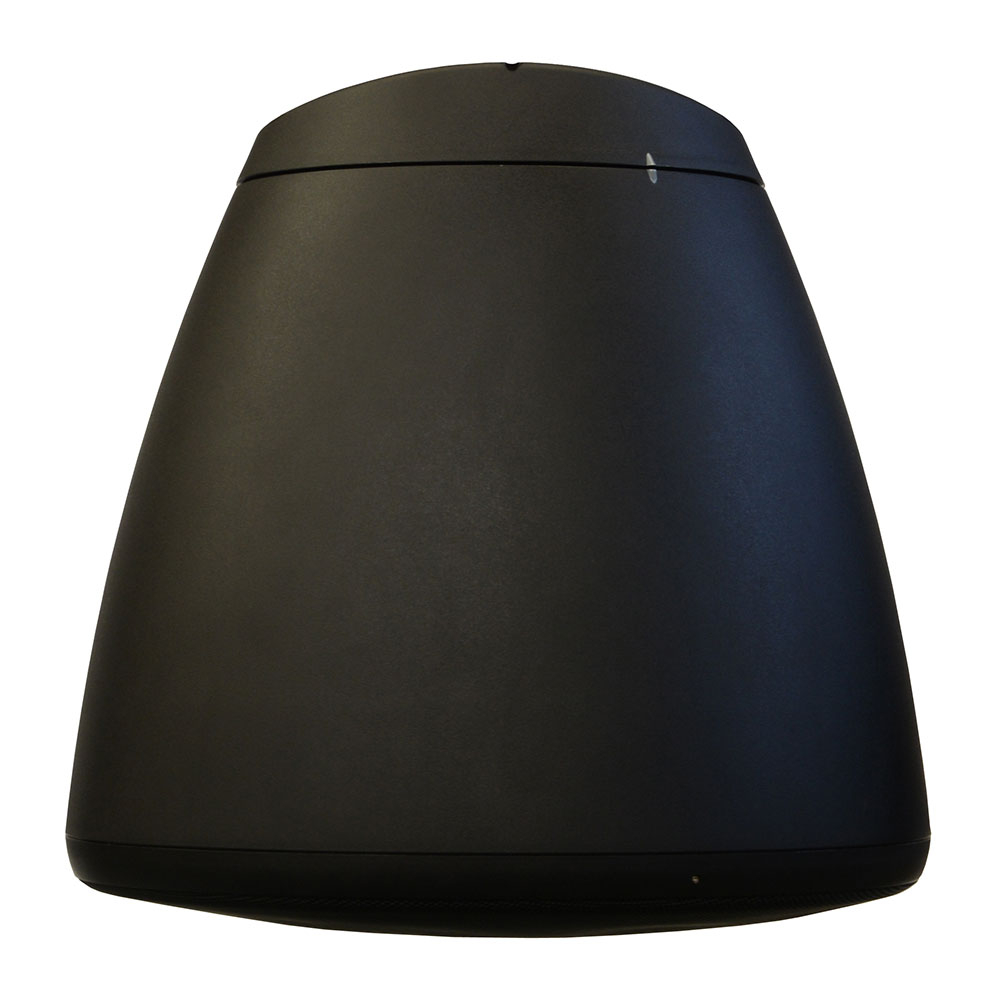

SoundTube HP82-EZ-BK 8” Open-Ceiling Coax Pendant Speaker With BroadBeamHP Ring™

The SoundTube HP82-EZ-BK is an 8” open-ceiling coax pendant speaker with BroadBeamHP Ring™.

The HP82-EZ is a 8.0-inch, coaxial speaker designed for open-ceiling applications. Hanging hardware is included and features built in hanging bracket and screw on cover plate for fast, easy and secure installation. The unit may be mounted direct-to-conduit via the locking cover plate (see installation instructions for additional information). The HP82-EZ speaker incorporates 4 position ceramic terminal block input connector and a 6 position tap switch with transformer bypass position.

SoundTube HP82-EZ Features:

• One 8.0 inch (203 mm) high power coaxial driver with BroadBeamHP™ compression driver technology for long throw and smooth directivity.
• Weatherized components for indoor and outdoor applications.
• Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation.
• Unit may be hung or mounted direct-toconduit via locking cover plate.
• Enclosure constructed of injection molded ABS with glass ber reinforcement for lasting durability in indoor or outdoor applications.
• 16 ohm impedance for easy daisy chaining in low voltage systems.
• Aluminum grille with protective powder coated nish.
• Built-in thermal fuse.
• Unit ships in eco-friendly, recyclable packaging.
• UL 1480 UEAY planned, UL 2239 approved.
• High-quality black or white paint nish. Speaker is paintable.
• Included accessories: hanging hardware, terminal weather boot, coverplate.

SoundTube HP82-EZ Specifications:

• System Type: 8.0” Coax, open-ceiling, high SPL, ported(64 Watt transformer for 25/70.7/100 Volt or voice coil direct)
• Impedance (nominal): 16 ohm
• Tap Selector: 6 Position rotary switch withtransformer bypass
• Enclosure Material: Injection molded ABS, glass fiberreinforced
• Grille: Powder coated aluminum
• Inputs: 4 position ceramic terminal connector
• Dimensions (H x D): 327.7 x 325.9 mm (12.9 x 12.83 in)
• Weight: 6.35 kg (14 lbs)
