Camplex CMX-TACNGO-SDI Tac-N-Go 3G SDI Fiber Optic Converter / Extender & 1000 Foot Tactical Fiber Cable Reel

OUR PART #: CMX-TACNGO-SDI MFR #: CMX-TACNGO-SDI

Copied to clipboard

Convert and extend your SDI signals over 1000 feet of tactical fiber optical cable using the Camplex Tac-N-Go SDI system (part no. CMX-TACNGO-SDI). ...Read more

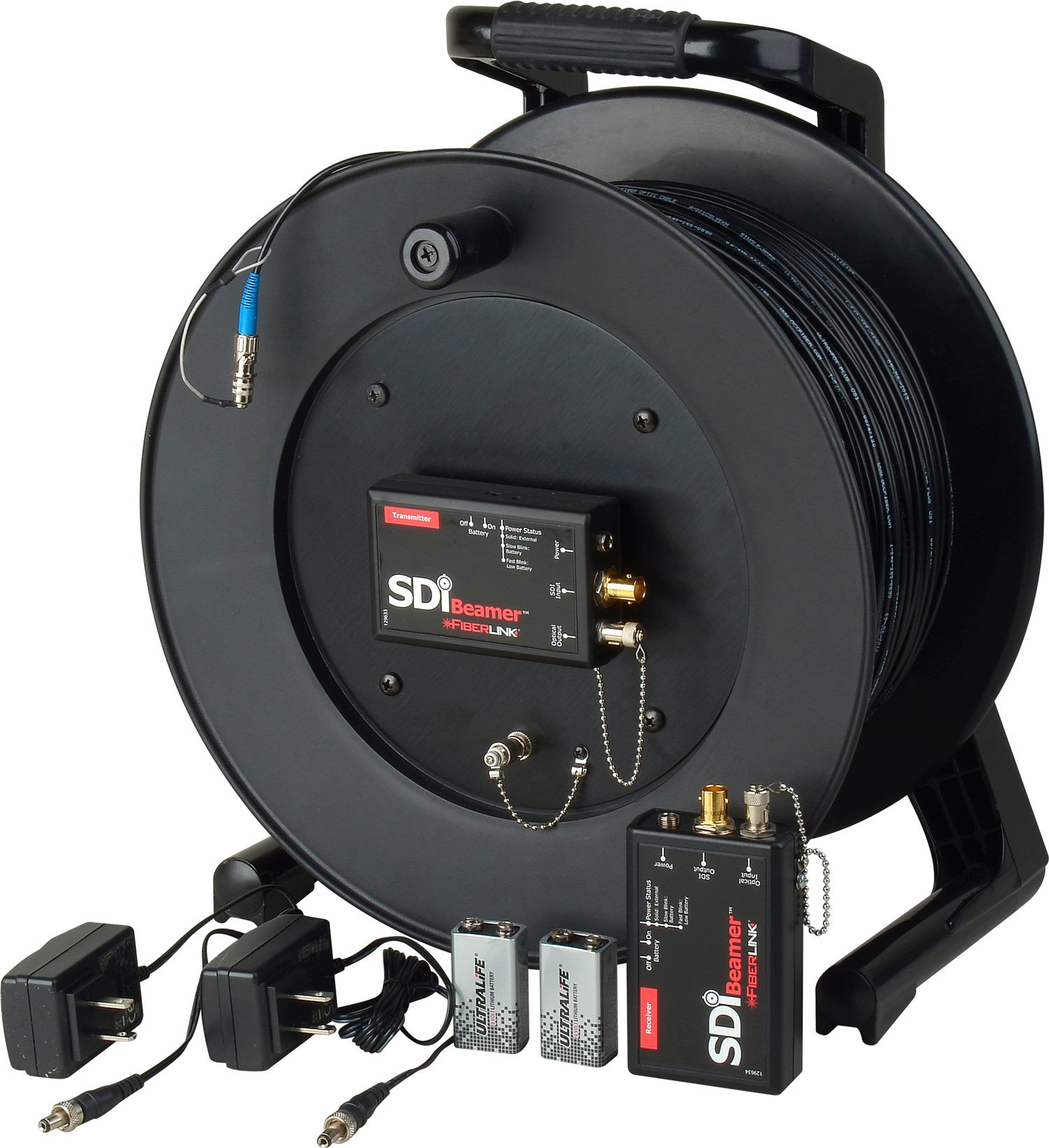

Camplex CMX-TACNGO-SDI Tac-N-Go 3G SDI Fiber Optic Converter / Extender & 1000 Foot Tactical Fiber Cable Reel Image 1
Camplex CMX-TACNGO-SDI Tac-N-Go 3G SDI Fiber Optic Converter / Extender & 1000 Foot Tactical Fiber Cable Reel Image 2
Camplex CMX-TACNGO-SDI Tac-N-Go 3G SDI Fiber Optic Converter / Extender & 1000 Foot Tactical Fiber Cable Reel Image 3
Camplex CMX-TACNGO-SDI Tac-N-Go 3G SDI Fiber Optic Converter / Extender & 1000 Foot Tactical Fiber Cable Reel
Our Price: $1,649.95
List Price: $1,699.95
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Convert and extend your SDI signals over 1000 feet of tactical fiber optical cable using the Camplex Tac-N-Go SDI system (part no. CMX-TACNGO-SDI). Convert any camera or 3G SDI source to a powerful long haul fiber transmission system. The 3G-SDI extender is either battery or AC powered making it suitable for mobile video, stadiums, sports venues, live event arenas, and more. Long life Lithium 9V batteries are included.

This system includes a built-in SDI Beamer for transmitting 3G/HD/SD-SDI, with or without embedded audio, and data over a single fiber core. The SDI Beamer is compliant with other SMPTE 297-2006 devices. Transmitter and receiver units have standard BNC video and ST fiber optic connectors with metal dust cap & chain. The system also includes Camplex MilTac TAC1 single mode tactical built onto a field rugged cable reel. The Tac-N-Go SDI system is guaranteed to deliver noise free performance, regardless of common cable attenuation.

Camplex Tac-N-Go SDI System Includes:

  • 3112 Transmitter
  • 3113 Receiver
  • Two PDPS-4 Power Supplies
  • Two 9V Lithium Batteries
  • JACKREEL-F4 Cable Reel
  • 1000 Foot TAC1 ST Singlemode Cable

Camplex Tac-N-Go SDI System Specifications:

  • 3112 Transmitter Specifications:
    • 3112 Transmitter - Serial Video BNC Input
      • Number of Inputs: 1
      • Data Rate Range: 19.4 Mbps to 2.97 Gbps
      • Supported Standards: SMPTE 259M, 292, 297-2006, 424M-2006, 305M, 310M, 344M, DVB-ASI
      • Re-clocked Data Rates : 270 Mbps (SMPTE 259M, DVB-ASI-270), 1.485 Gbps (SMPTE 292), 2.97 Gbps (SMPTE 424M-2006)
      • Equalization: Automatic up to 100m of Belden 1694A at 3.0 Gbps, 200m at 1.485 Gbps and 350m at 270 Mbps
      • Return Loss: >10dB up to 2.97 Gbps
    • 3112 Transmitter - Optical Output
    • Connector: ST, with chain-attached dust cap
    • Wavelength: 1310nm (nominal)
    • Emitter Type: FP Laser
    • Output Power: -8 dBm Min (Single Mode); -3 dBm Min (Multimode 50u/62.5u)

3113 Receiver Specifications:

  • 3113 Receiver - Fiber Optic Input
    • Connector: ST, with chain-attached dust cap
    • Wavelength: 1100 - 1620 nm
    • Minimum Input Sensitivity: -18 dBm at 2.97 Gbps; -20 dBm at 1.485 Gbps -20 dBm at 270 Mbps
    • Maximum Input Power: 0 dBm
  • 3113 Receiver - Serial Video BNC Input
    • Number of Outputs: 1
    • Signal Level: 800mV ± 10%
    • DC Offset: 0V ± 0.5V
    • Rise/Fall Time: < 135 ps at 2.97 Gbps per SMPTE 424M-2006; < 270 ps at 1.485 Gbps per SMPTE 292; 0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
    • Overshoot: < 10% of amplitude
    • Timing Jitter: < 0.2 UI at 270 Mbps; < 1.0 UI at 1.485 Gbps; < 2.0 UI at 2.97 Gbps with color bar signal
    • Alignment Jitter: < 0.2 UI at 270 Mbps; < 0.2 UI at 1.485 Gbps; < 0.3 UI at 2.97 Gbps with color bar signal
    • Reclocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps

Beamer Series General Specifications

  • Indicator: Power/Battery
  • Switch: Internal Battery On/Off
  • Power: External 9-24 volts DC or user supplied internal 9 volt battery. Internal battery can be used for glitch-free backup to external power source or battery only operation
  • Power Disipation: Transmitter: 1.20 Watts, 4.09 BTU/hr Receiver: 1.20 Watts, 4.09 BTU/hr
  • Power Connector: Coaxial type with locking threads; 5.5mm O.D., 2.1mm I.D.
  • Operating Temperature: -10ºC to +50ºC
  • Dimensions: 2.4" x 4.47" x 1.06" (60.96 x 113.53 x 26.92 mm)
  • Weight: 4.23 oz. with batt., 2.60 oz without batt.
  • Approximate Internal Battery Life: 3 hours, 30 minutes with Lithium battery; 1 hour, 50 minutes with Advanced Alakaline battery; 1 hour, 30 minutes with Alakaline battery
  • MTBF: 175,000 Hours
