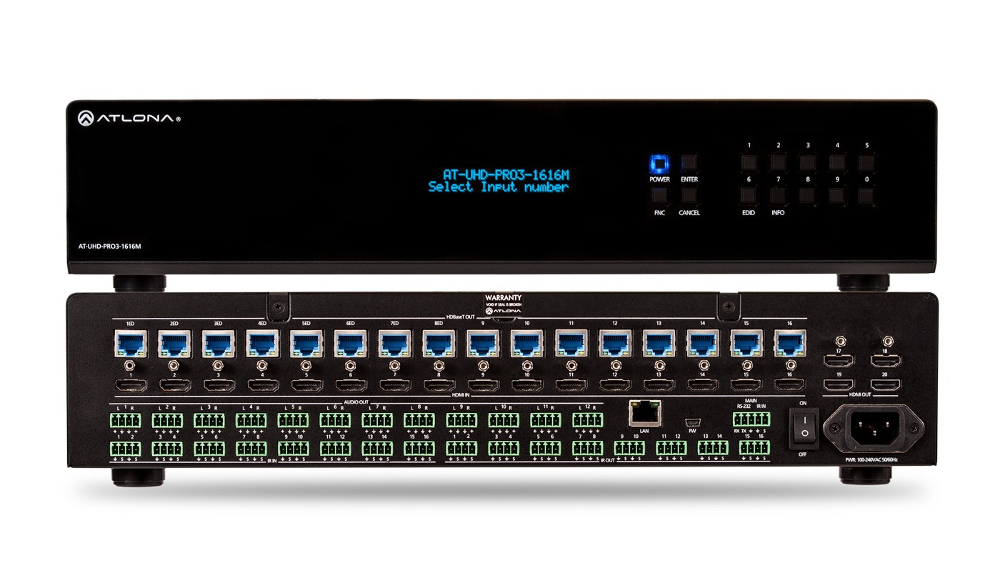

Atlona Technologies AT-UHD-PRO3-1616M
4K/UHD Dual-Distance 16×16 HDMI To HDBaseT Matrix Switcher

OUR PART #:  AT-UHD-PRO3-1616M

Call for price! Not available online.

Similar Products

The Atlona AT-UHD-PRO3-1616M is a 4K/UHD 16×16 HDMI to HDBaseT Matrix Switcher with PoE for 4K/UHD @ 60Hz video signals with Power over Ethernet for receivers and analog audio breakout. The matrix provides both extended distance, 328 foot (100 meter) and long distance, 230 foot (70 meter) HDBaseT transmission over category cable. It also provides convenient bidirectional extension of both RS-232 and IR Control. Four HDMI outputs are provided as mirrored outputs designed for routing HDMI-based audio to an AVR or as additional matrix outputs. The matrix switcher is HDCP 2.2 compliant and supports EDID communication. The matrix is control system-friendly and integrates with any TCP/IP, RS-232, or IR based control signals. Designed for multi-zone residential or commercial distribution applications, the AT-UHD-PRO3-1616M features a 2U, rack-mountable enclosure with an internal, international power supply.

Atlona AT-UHD-PRO3-1616M Features:

  • Eight extended distance, 328 foot (100 meter) outputs and Eight long distance, 230 foot (70 meter) outputs offer bidirectionalextension of both RS-232 and IR control plus remote power
  • Four HDMI output with independently selectable mirror and matrix modes
  • 4K/UHD capability with HDCP 2.2 copy protection
  • Audio de-embedding with volume, mute, and 5-band EQ
  • Power over Ethernet for remote-powered receivers
  • TCP/IP, RS-232, and IR, control

Atlona AT-UHD-PRO3-1616M Specifications:

  • Temperature
    • Operating: 0°C to 40°C (32°F to 104°F)
    • Storage: -40°C to 70°C (-40°F to 158°F)'
    • Humidity: 20 to 90% non-condensing
  • Power
    • Consumption: 350W
    • Idle Consumption: 250W
    • Supply: AC100~240V 50/60Hz
  • Dimensions (H x W x D):
    • With feet: 99.02 x 439.74 x 301.63 mm (3.90 x 17.31 x 11.88 in)
    • With Rack Ears: 88.63 x 482.60 x 301.63 mm (3.49 x 19.00 x 11.88in)
  • Weight: 6.21 kg (13.70 lbs)
