Product Overview

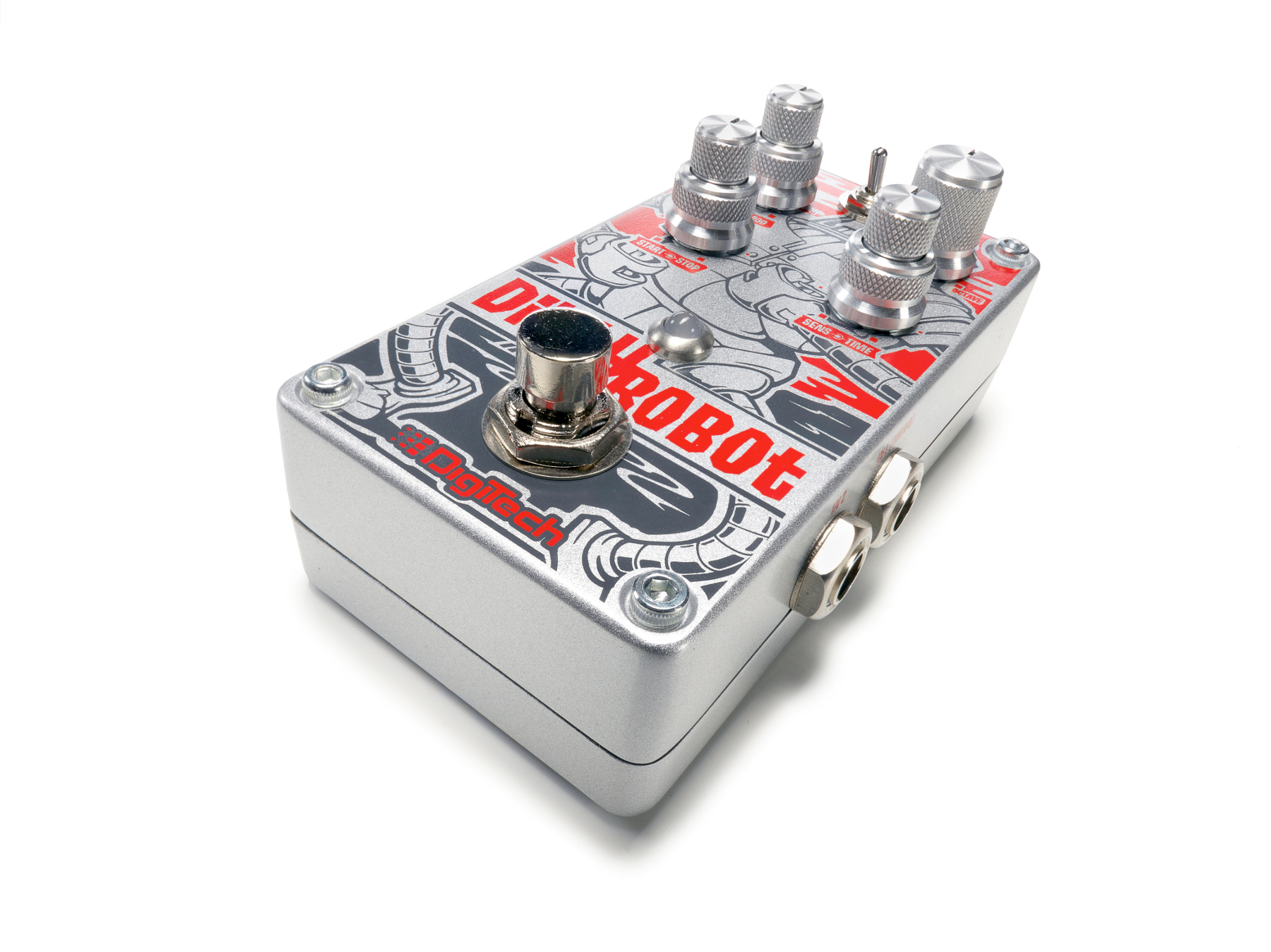

DigiTech's DirtyRobot is a synthesizer emulation pedal for guitar and bass equipped with two different synth voices - V1 for warm analog synthesis with a wide range of sweeps reminiscent of classic synths from the 80s, and V2 for for a vocal formant synthesis effect that can be used for vocoder emulation or talk box style effects. Each voice offers additional adjustment options for sweep frequency start and stop points, sweep speed, trigger sensitivity, and more.

DigiTech DirtyRobot Features:

  • Two voices, Synth and Vocal Formant
  • Drift Knob blends Square Wave with Octave and Sub
  • 3 concentric knobs give you tons of control in a small form factor
  • Momentary switch to access virtual “mod wheel”
  • Stereo inputs and outputs
  • True bypass
  • Stomplock™
  • Custom-cut Hook and Loop Pedalboard Pad

DigiTech DirtyRobot Specifications:

  • Controls: Mix, Modulation, Drift, Start, Stop, Sensitivity, Time, Effect on/off Footswitch
  • Indicators: Effect on/off LED
  • Inputs: 2 x 1/4” instrument
  • Input Impedance: Effect on: >1 MOhm (stereo),>500 kOhm (mono); Effect off: >1 MOhm (stereo), >500 kOhm (mono);Effect off: True hardwire bypass
  • Outputs: 2 x 1/4” instrument
  • Output Impedance: Effect on: 1 kOhm; Effect off:1 kOhm; Effect off: True hardwire bypass
  • Power Requirements: 9 VDC external power supply (required)
  • Power Consumption: 675 mW (< 75 mA @ 9 VDC)
  • Current Draw: 75 mA (typical at 9 VDC)
  • Power Supply Model: PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
  • Power Supply Output: 9 VDC 1.3 A
  • Dimensions (LxWxH): 4.40” x 2.65” x 2.0” (11.18 x 6.73 x 5.08 cm)
  • Weight: 1 lb (0.453 kg)
