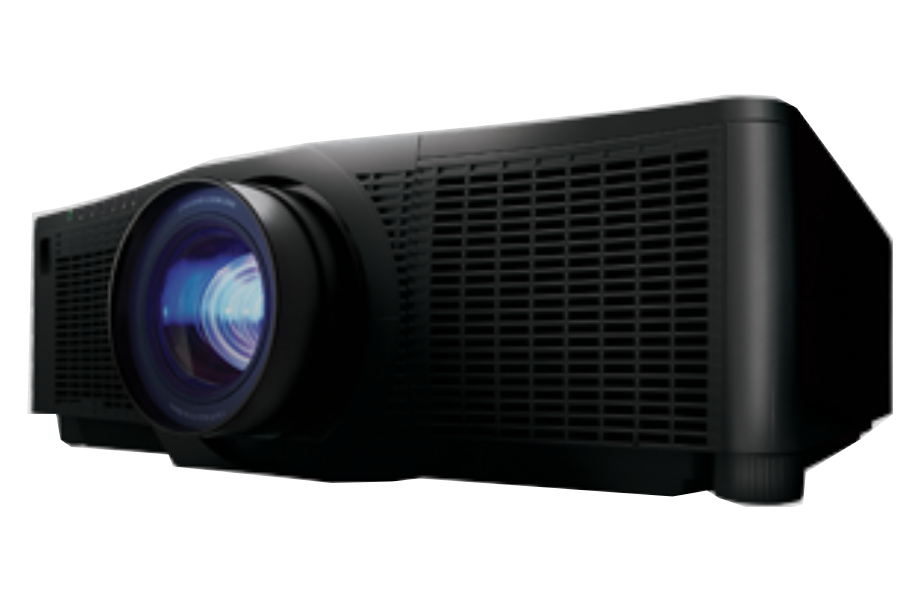

Christie Digital DHD1052-Q
Q Series 1DLP® Projector

OUR PART #:  121-038102-01

The Christie Digital DHD1052-Q delivers presentations and video content clearly.
Learn More
Similar Products

The Christie Digital DHD1052-Q delivers presentations and video content clearly. Christie® Q Series takes 1DLP®?? projection to new levels of brightness and higher resolutions to bring you the industry’s highest-quality projector in its class.

NOTE: Lens NOT  Included

Christie Digital DHD1052-Q Includes:

  • Three 3m Power cord (US , Euro, UK) or China Model: 3m China, two Ferrite core and band, two Cable Ties
  • RGB cable (2m)
  • Adapter cover
  • Wireless remote control / AA batteries x 2
  • User’s manual CD including Safety Guide, Quick setup guide, Network quicksetup guide, Operating guide, Network guide, Instant stack guide, Technicalguide, Software license agreement, User’s manual

Christie Digital DHD1052-Q Features:

  • Proven DLP technology???
  • Excellent image quality
  • Reliability and versatility
  • Energy-saving features
  • Low maintenance costs
  • High-performance features
  • Choice between black or white models
  • Backed by Christie’s industry-leading warranties and support

Christie Digital DHD1052-Q Specifictions:

  • Part No.: 121-038102-01
  • Brightness:
    • 9,500 ISO lumens
    • 9,500 Center lumens
    • 8,450 ANSI lumens
  • Color wheel: Built-in C/W Options: High Brightness C/W: 5 Segment (RGBYW), Rich Color C/W: 5 Segment (RGBYC)
  • Contrast (nominal): 2500:1 Full On/Off; 120:1 ANSI
  • Display type: 1-chip 0.95” DMD
  • Native resolution: 1920 x 1080 (2,073,600 pixels) 16:9
  • Illumination system:
    • Type: Two 430W UHP
    • Typical lifetime:
      • 2000 hrs typical @ Normal Mode
      • 4000 hrs typical @ ECO Mode
      • 1000 hrs typical in Portrait Normal Mode
  • Inputs:
    • Two HDMI
    • 3GSDI (BNC)
    • DVI-D (Digital only)
    • HD15 (RGBHV or component video)
    • Composite Video (BNC)
    • USB (type A) - Optional Wireless or PC-less
    • HDBaseT (RJ45)
  • Signals:
    • HDTV formats VGA through to WUXGA (1920 x 1200)
    • Horizontal and vertical scaling while maintaining aspect ratio, all inputs
  • Pixel clock: 27-150MHz
  • Scan rates: 525i(480i), 525p(480p), 625i(576i), 1125i(1080i @ 50/60), 750p(720p @ 50/60) 1125p(1080p @ 50/60)
  • Signal outputs: HD15
  • Control and networking:
    • RS232 In
    • Control via HDBaseT
    • Ethernet (10/100) RJ45 with ChristieNET connectivity
    • Built-in Backlit Keypad
    • Wired Remote Control (3.5mm stereo) - Loop out available for daisy chaining
  • Lens mount:
    • Tool-free lens insertion system
    • Boresight adjustable
    • Motorized horizontal and vertical lens offset (Memory Available)
    • Motorized zoom and focus adjustment (Memory Available)
  • Lenses:
    • 0.38:1 Ultra Short Throw Fixed Lens
    • 0.8-1.0 extra short throw zoom
    • 1.2-1.8/1.1-1.7 short throw zoom
    • 1.7-2.5 standard zoom
    • 2.5-3.8/2.4-3.6 middle throw zoom
    • 3.6-5.8/3.7-5.9/3.5-5.6 long throw zoom
    • 5.7-9.1/5.8-9.2/5.5-8.8 extra long throw zoom
  • Operating voltage: 110 VAC to 240 VAC @ 50/60 Hz
  • Power consumption:
    • 1070W +/-10% (220V)
    • 1090W +/-10% (110V)
  • Operating current:
    • 5.6A +/-10% (220V)
    • 10.2A +/-10% (110V)
  • Dissipation:
    • 3720 BTU/hr max (110-120V)
    • 3652 BTU/hr (220-240V)
  • Dimensions (LxWxH): 18.2" x 21.1" x 6.9" (463 x 537 x 174mm)
  • Weight (without lens): 38.6 lb (17.5 kg)
  • Shipping dimensions (LxWxH): 22.1" x 29.3" x 12.4" (561 x 743 x 315mm)
  • Shipping weight: 50.7 lb (23.0 kg)
  • Temp: From sea level to 1,600m (5,249feet):
    • Normal: 0 ~ 45 °C
    • Eco: 0 ~ 50 °C
  • Temp: From 1,600m (5,249feet) to 3,048m (10,000feet): Normal/Eco: 0 ~ 40 °C
  • Humidity?: ?10 - 80% non-condensing
  • Regulatory:
    • FCC, Part 15, Subpart B, Class A
    • EN55022/CISPR22 Class A
    • ICES/NMB003 (A)
    • EN55024 / CISPR24
    • IEC 60950-1
    • UL 60950-1
    • EN 60950-1
    • CAN/CSA C22.2 No. 60950-1
    • Directive 2011/65/EU (RoHS)
