Osprey Video Talon G1 Decoder Hardware H.264 Decoder with HDMI Output

OUR PART #: TALON-G1-DECODER MFR #: 96-02020

Copied to clipboard

The Osprey Video Talon G1 Decoder is a small form-factor H.264 video decoder that is designed to be easy to use and portable. ...Read more

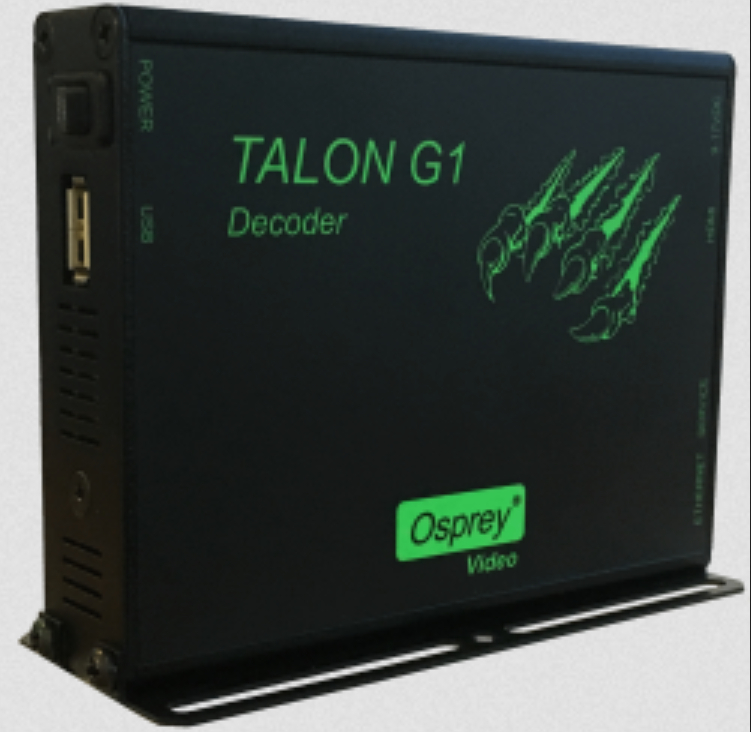

Osprey Video Talon G1 Decoder Hardware H.264 Decoder With HDMI Output Image 1
Osprey Video Talon G1 Decoder Hardware H.264 Decoder With HDMI Output Image 2
Osprey Video Talon G1 Decoder Hardware H.264 Decoder With HDMI Output
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Osprey Video Talon G1 Decoder is a small form-factor H.264 video decoder that is designed to be easy to use and portable. The Talon uses GigE Ethernet port and can decode up to four RTP or UDP streams (Unicast/Multicast) and display them in a resolution of up to 1080p60 via the HDMI output. alon can also play .TS files from an external flash drive via its USB 2.0 port. It features a fanless design with a low power consumption of <6W. The wide input voltage range of 9VDC - 17VDC also make it a perfect candidate for battery operated equipment and installations.

Applications:

  • Multi-Stream Monitor
  • Point-to-Point Source Monitor
  • Digital Signage

Osprey Video Talon G1 Decoder Includes:

  • Talon G1 Hardware Decoder
  • International Power Supply
  • Mounting Brackets

Osprey Video Talon G1 Decoder Features:

  • HTTP Based Configuration: Simple user interface allows the user to configure input streams and set display outputs for multiple different PIP Views
  • LED Indicators: System Status at a glance
  • Mission Critical Design:
    • Auto Start after Power Outage
    • Reliabale, Solid Hardware Based Decoder
    • Silent, Fan-less Operation
    • Low Power Consumption

Osprey Video Talon G1 Decoder Specifications:

  • Description: Hardware Based H.264 Decoder
  • Software Control: HTTP-Based GUI for Configuration and Software Update
  • Ethernet Connector: 1 GigE
  • Video Input:
    • H.264 RTP/UDP multicast and unicast stream
    • H.264 .TS file
  • USB Connector: USB Type A 2.0
  • Video Output Modes:
    • 1080p 30, 50, 59.95, 60
    • 1080i 25,29.97,30
    • 720p 50, 59.94, 60
    • 480p 60
    • 576p 50
  • LED Indicators:
    • Power
    • Unit Ready
    • Unit Decoding
  • Dimensions: 93.1mm X 120.2mm X 24.75mm (Chassis only. Does not include mounting brackets or connectors)
  • Weight: 240g
  • Power Consumption: 6W
  • Warranty: 1 year limited hardware warranty

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download
