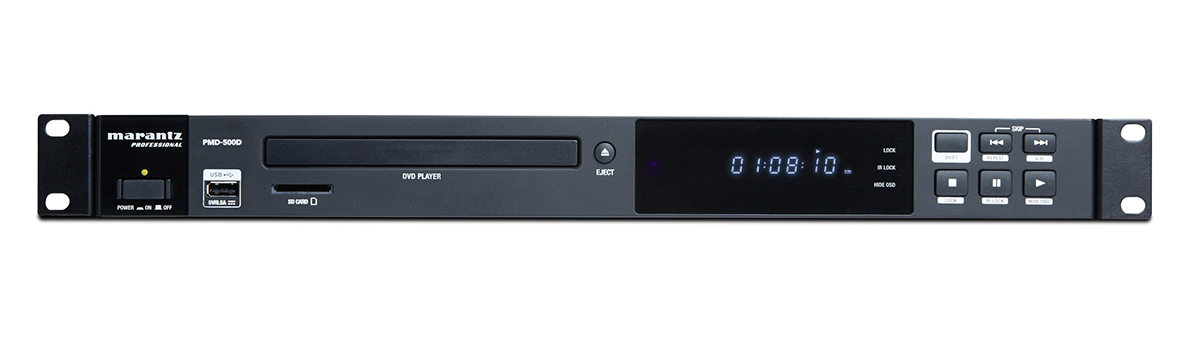

Marantz Professional PMD-500D
DVD Player


The Marantz Professional PMD-500D DVD player and SD/SDHC and USB.
Learn More
Our Price: $199.00
Write the first review.
Marantz Professional PMD-500D
In Stock

Related Products

The Marantz Professional PMD-500D DVD player and SD/SDHC and USB. The ability to play several media formats paired with multiple audio/video output configurations and RS-232C control put this player in a class by itself for versatility. Operational settings are saved even after a power recycle, and settings such as Power-on-Play and front panel/IR remote locks enable automatic operation.

Marantz Professional PMD-500D Features:

  • Component, composite and digital video out
  • Balanced and unbalanced audio outputs
  • HDMI output
  • Playback of files from SD/SDHC and USB
  • OSD hiding mode
  • RS-232C control
  • Panel lock and IR remote lock functions

Marantz Professional PMD-500D Specifications:

  • File: AV:AVI/MPG/3GP/asf/DAT/DivX/MP4/WM Picture: JPG Subtitle: Srt/sub/smi/ssa Audio: MP3/WAV
  • Video Signal: HDMI Output: HDMI 1.3
    • Component Video: Component Y: 1.0V p-p/750 Component Pb/Pr: 0.7V p-p/750
    • Composite Video: 1.0V p-p/75
  • Audio Specifications:
    • Audio Channels: 2-channel stereo Frequency Response: 10–20,000Hz ±1.0dB Dynamic Range: > 106dB (10–20,000 Hz, A-weighted) Signal-to-Noise Ratio: > 100 dB (1 kHz, 0dB, A-weighted) Headroom: 6dB Channel Separation: > 90dB (1kHz, 0dB, A-weighted) Total Harmonic Distortion (THD): < 0.05% (1kHz, 0dB, A-weighted)
  • Analog Outputs: RCA (unbalanced), 2.0 Vrms XLR (balanced), +4dBU
    Digital Output: Coaxial RCA, 0.5Vp-p @ 75O / signal format AES/EBU Optical Toslink, -21dBm to -15dBm (660nm +/-30nm)
  • Hum-to-Noise Ratio: Output (HPF 400 Hz ON/OFF) <1.0 dB noise level In GND-Out GND (HPF 400 Hz ON/OFF) < 10dB noise level byusing the hummer test jig (AC12V/100mA Trans)
    • Pop Noise: Audio output 50mV @ 100kO
  • USB:
    • USB port type A USB 2.0 / FAT32
    • SD:SD/SDHC Ver 2.0 FAT32
  • Playable Decode: Video MPEG1, MPG2, MPG4, DIV X3/4/6,Xvid Audio DD, AAC, WMA
  • Remote Control: IR Remote Infrared protocol, NECformat Transmit output level >200mV p-p
  • Serial Remote: D-sub 9-pin female RS-232C:
    • Mode - full duplex Baud rate 9600/38400 b/s (selectable in the menu) Data 8bits Start bit 1bit Stop bit 1bit Parity - none
    • Flow control - none
    • Power Requirement: 100 - 230 VAC
    • Power consumption: <20W
    • Operating temperature: 40° - 95° F (5° - 35° C )
    • Operating humidity: 25 - 85% non-condensing
  • Dimensions: 19" x 10.75" x 1.7" (483 x 273 x 44mm)
