RapcoHorizon Music DMX-1PR
1 Pair, 24 AWG DMX512 Cable, Sold by the Foot

OUR PART #:  DMX1PR-BY-FOOT

RapcoHorizon's DMX-1PR is a DMX512 cable with 1 pair of 24 AWG stranded bare copper conductors.
Learn More
Our Price: $0.26
List Price: $0.27
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RapcoHorizon Music DMX-1PR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

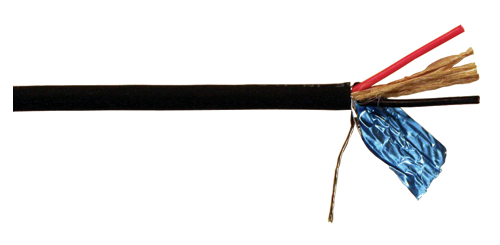

RapcoHorizon's DMX-1PR is a DMX512 cable with 1 pair of 24 AWG stranded bare copper conductors. This unterminated DMX cable is cellular polyethylene insulated, with an overall shield and PVC jacket.

RapcoHorizon DMX-1PR Specifications:

  • Cable: DMX-1PR
  • Conductor Gauge: 24 AWG
  • Shield: Aluminum/polyester tape and tinned copper drain
  • Shield Coverage: 100%
  • Jacket: Matte PVC
  • O.D.: 0.21"
  • Capacitance: 13.5 pF/ft @ 1 kHz
  • Cond.-Shield Capacitance: 25 pF/ft @ 1 kHz
  • Characteristic Impedance: 110 Ohms Nominal
  • D.C. Resistance @ 20┬║C: 25.4 Ohms/1000 ft
