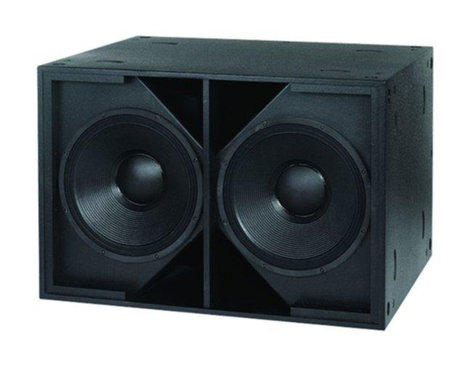

Tannoy VS218DR Dual 18" High Power Direct Radiating Passive Subwoofer

The Tannoy VS 218DR is a versatile, no compromise, all-purpose subwoofer designed for the most demanding professional applications. Extending the frequency response of any system to below 30 Hz makes the VS 218DR ideal for low frequency effects in high energy clubs, large corporate AV systems, stadiums, live concert halls, theatres, movie theatres and cinemas, large houses of worship and open-air venues.

This loudspeaker is capable of delivering deep and powerful bass at high sound pressure levels with extremely low distortion and power compression, while all the time maintaining a uniform frequency response throughout its dynamic range. The large port areas ensure minimal turbulence even at high output levels.

With easy rigging and portability in mind the VS 218DR is equipped with 16 unobtrusive recessed carrying handles whilst 16 x 10 mm flying inserts provide a secure flying system. The cabinet is also fitted with 4 pullback points; and 4 rubber feet are provided to facilitate stacking.

The VS 218DR consists of twin 458 mm (18”) high efficiency drive units producing 106 dB/W, with a 100 mm (4”) voice coil. The twin drivers are mounted in an immensely robust 500 litre cabinet constructed from 18 mm (5/8”) multi-ply birch hardwood and is available in a black or white textured paint finish as standard. The heavy-duty construction ensures it is able to survive the punishment that speaker systems are subjected to on the road and in club installations.

Tannoy VS 218DR Features:

• 2 x 458 mm (18”) bass units with 4" sandwich voice coil
• Triple aluminium demodulating rings for ultra low distortion
• Double treated cone for water protection
• Deep, powerful bass performance
• High power handling
• High efficiency
• Rugged birch plywood construction
• 16 x integral carrying handles
• Integral flying points

Tannoy VS 218DR Specifications:

• Performance
  • System Type: Subwoofer - Direct Radiating
  • Frequency Response (-3 dB) (1): 31 Hz - 600 Hz
  • Frequency Range (-10 dB) (1): 24 Hz - 1.5 kHz
  • System Sensitivity (1 W @ 1 m) (2): 106 dB (1 W = 2 V for 4 Ohms)
  • Power Handling:
    • Average: 2000 W
    • Programme: 4000 W
    • Peak (10 ms): 8000 W
  • Recommended Amplifier Power: 2 x 1200 - 2000 W / 8 Ohms, or 2400 - 4000 W / 4 Ohms
  • Rated Maximum SPL (2)
    • Average: 139 dB
    • Peak: 145 dB
  • Nominal Impedance: 2 x 8 Ohms
  • Driver Complement: 2 x 458 mm (18") Bass drivers
  • Recommended Crossover: 70 Hz - 300 Hz, 24 dB / octave
  • Recommended Crossover: Recommended High-pass filter 25 Hz, 24 dB / octave
• Distortion
  • 10% Full Power (21.9 V)
    • 2nd Harmonic 70 Hz: 1.22%, 100 Hz: 0.38%
    • 3rd Harmonic 70 Hz: 1.90%, 100 Hz: 0.49%
  • 1% Full Power (7.0 V)
    • 2nd Harmonic 40 Hz: 0.41%, 100 Hz: 0.88%
    • 3rd Harmonic 40 Hz: 0.41%, 100 Hz: 1.03%
  • Construction
  • Enclosure: 500 litres, 18 mm (5/8") birch plywood internally braced
  • Finish: Textured black or white paint (custom colours on request)
  • Connectors: 2 x speakON NL4MPR IN/OUT and Barrier strip terminals
  • Fittings
    • 16 x Recessed carrying handles
    • 16 x M10 flying inserts
    • 4 x Pullback points
    • 4 x Rubber Feet
  • Dimensions (H x W x D): 700 x 1050 x 850 mm (27.56 x 41.34 x 33.46")
  • Net Weight (ea): 105 kg (231.3 lbs)
  • Shipping Weight: 120 kg (264.3 lbs)
