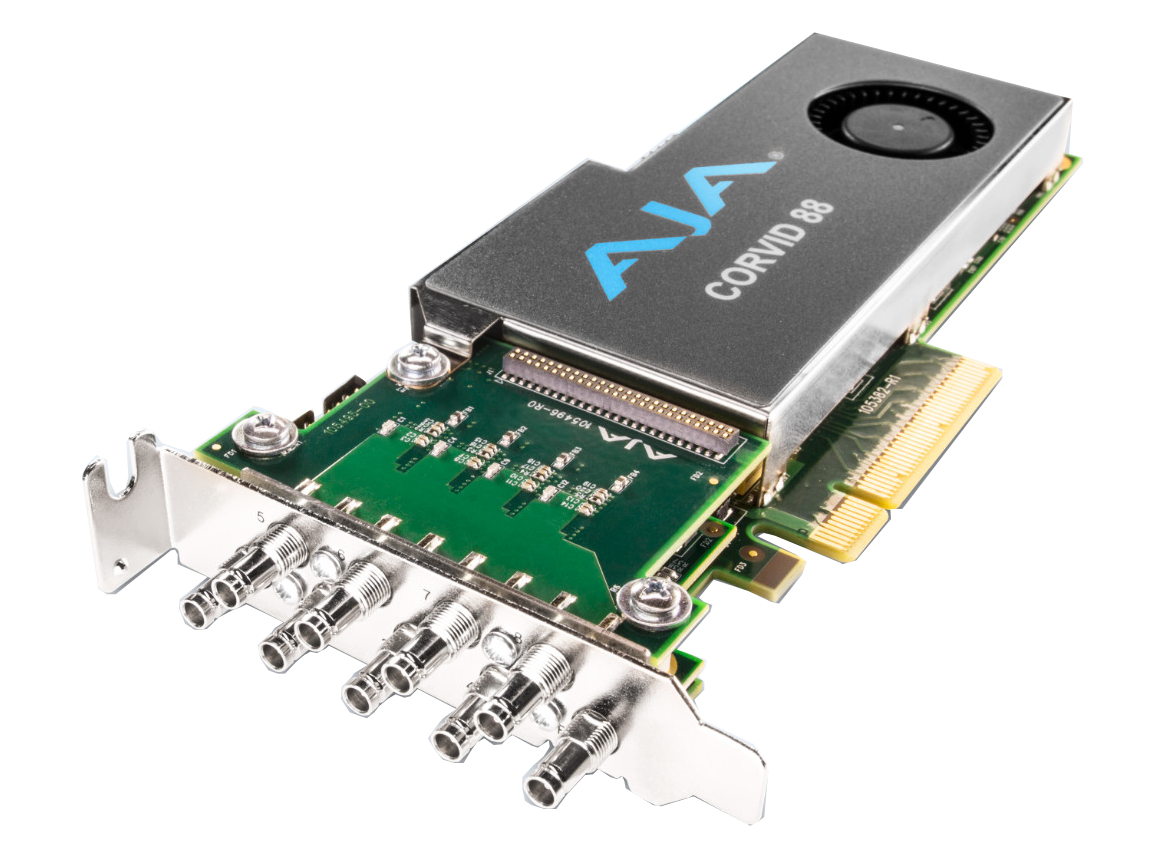

AJA Video Systems Inc CORVID-88-S
Eight Independently Configurable SDI Channels

OUR PART #:  CORVID-88-S

The AJA Video Systems COVID-88-S allows the user to configure each SDI connection individually as input or output and mix formats for up to eight channels on a single card.
Learn More
Our Price: $2,795.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc CORVID-88-S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA Video Systems COVID-88-S allows the user to configure each SDI connection individually as input or output and mix formats for up to eight channels on a single card. As demand rises for higher resolutions, combine SDI connections for multiple 4K/UHD channels allowing incredible flexibility and futureproofing with playout and ingest servers or channel-in-a-box systems.

AJA Video Systems COVID-88-S Features:

  • Multi-stream, multi-format PCLe I/O card
  • High-density ingest and output
  • Hight frame rate support
  • PCIe Express Gen 2.0 8-lane
  • Up to eight independent channels 3G, HD, SD-SDI I/O
  • All SD/HD/2Kx1080/4K video formats
  • 3G input/output for High Frame Rate (HFR) support
  • 8/10-bit YCbCr and 12-bit RGB frame buffer formats
  • Four independent Mixer/Keyer widgets
  • Eight independent 16-ch 48kHz SDI embedded audio I/O engines
  • Analog Color Black or HD Tri-Level Sync
  • 3-year warranty

AJA Video Systems COVID-88-S Specifications:

  • Video Formats:
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (HD) 1080i 25, 29.97, 30
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
    • (HD) 720p 50, 50.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
  • Video Input  Digital: Eight 3G-SDI BNC
  • Video Output Digital: Eight 3G-SDI BNC
  • Audio Input Digital: 16-Channel 24-bit SDI embedded, 48 kHz synchronous
  • Audio Output Digital: 16-Channel 24-bit SDI embedded, 48 kHz synchronous
  • Size (WxDxH): 0.875" x 7.25" x 4.875" (22.23mm × 184.15mm × 123.83mm)
  • Weight: 0.4 lb (0.2 kg)
  • Power: 17 watts typical, 19 watts max
  • Environment:
    • Safe Operating Temperature: 32°-104°F (0°-40°C)
    • Safe Storage Temperature (Power OFF): -40°-140°F (-40°-60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
    • Airflow across the board for fanless models
      • 100LFM at 25° C or lower, computer chassis must have vented opening to exterior, immediately adjacent to PCIe shield (heatsink side), to permit 100LFM across heatsink
