Altinex TNP121S
Tilt 'N Plug Jr. Tabletop Interconnect Box in Silver


The Altinex TNP121S Tilt 'N Plug Jr.
Learn More
Our Price: $277.76
List Price: $310.00
You save 10%!
Write the first review.
Altinex TNP121S
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

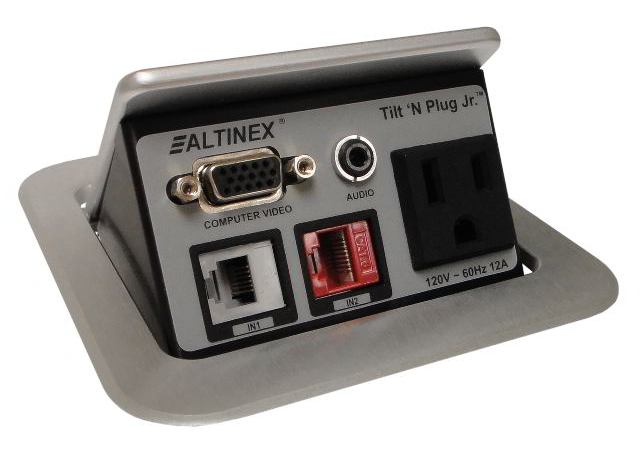

The Altinex TNP121S Tilt 'N Plug Jr. tabletop interconnect box provides a single input plate with VGA computer video (15-pin HD F-M), computer/MP3 audio (3.5 mm F-M), telephone (RJ-11 F-M), and network (RJ-45 F-M) input connections in 6 ft (2m) length. It also provides an AC Power connection in 9-10 ft (2.7-3.0m), suitable for use throughout the U.S. and Canada.

All Altinex Tilt 'N Plug Jr. products belong to a family of compact interconnection solutions designed for installation into a table as part of a presentation system. They are designed for mounting into a table, podium, or other furniture to provide a way of connecting audiovisual equipment on top of the furniture to a presentation system below the furniture.

The input plate of the Tilt 'N Plug Jr. is accessible by pushing down on the top cover. The unit then auto-tilts open with help from an internal pneumatic spring. Once open, the input plate remains securely in place. The input plate is hidden by pressing down on the top cover until the latching mechanism engages. In its closed position, the top panel lies flush with the table’s top, held in place by the latching mechanism.

Altinex TNP121S Tilt 'N Plug Jr. Interconnect Box Features:

  • Clear brushed aluminum finish
  • Single user connection point
  • Gas-spring for smooth operation
  • Ultra-flat surface when closed
  • 12 Amp AC socket with 9-10 ft Power Cable
  • Mounting screws and cable clamps included
  • UL listed
  • Listed for installation in kitchens, bathrooms and countertops (US only)

Altinex TNP121S Tilt 'N Plug Jr. Interconnect Box Specifications:

  • Electrical Specifications:
    • Power Rating (pass-through AC power): 110 VAC, 60 Hz, 12A per connector
  • General Specifications:
    • Computer Video: (1) 15-pin HD F-M
    • Stereo Audio: (1) 1/8" F-M
    • Network: (1) CAT-6 (RJ-45) F-M
    • Telecom: (1) RJ-11 F-M
    • UL Listed: File E254082
  • Mechanical Specifications:
    • Audio, Video, and Communication: 6 ft (2m)
    • Max. Table Thickness: 2.25" (57 mm)
    • Dimensions: 5.5" H x 4.6" W x 4.9" D (140 x 117 x 124 mm)
    • Weight (approx.): 2.8 lbs (1.3 kg)
    • Shipping Weight: 4.5 lbs (2 kg)
    • Finish: Clear Brushed Aluminum Finish
    • T° Operating: 10°C-35°C
    • T° Maximum: 40°C
    • Humidity: 90% non-condensing
  • Warranty:
    • 3 year warranty
    • 1 year warranty on gas-spring
  • Certifications: UL, CE, RoHS, FCC
Altinex AC401-302  Gas Spring for Tilt-N-Plug Jr.
Altinex AC401-302 Gas Spring for Tilt-N-Plug Jr.
The Altinex AC401-302 is a gas spring for the Tilt-N-Plug Jr. It has a soft end damping to assure smooth operation and soft stop. The spring is designed to provide enough force to support all of the cables within the table top unit. Proper ...
