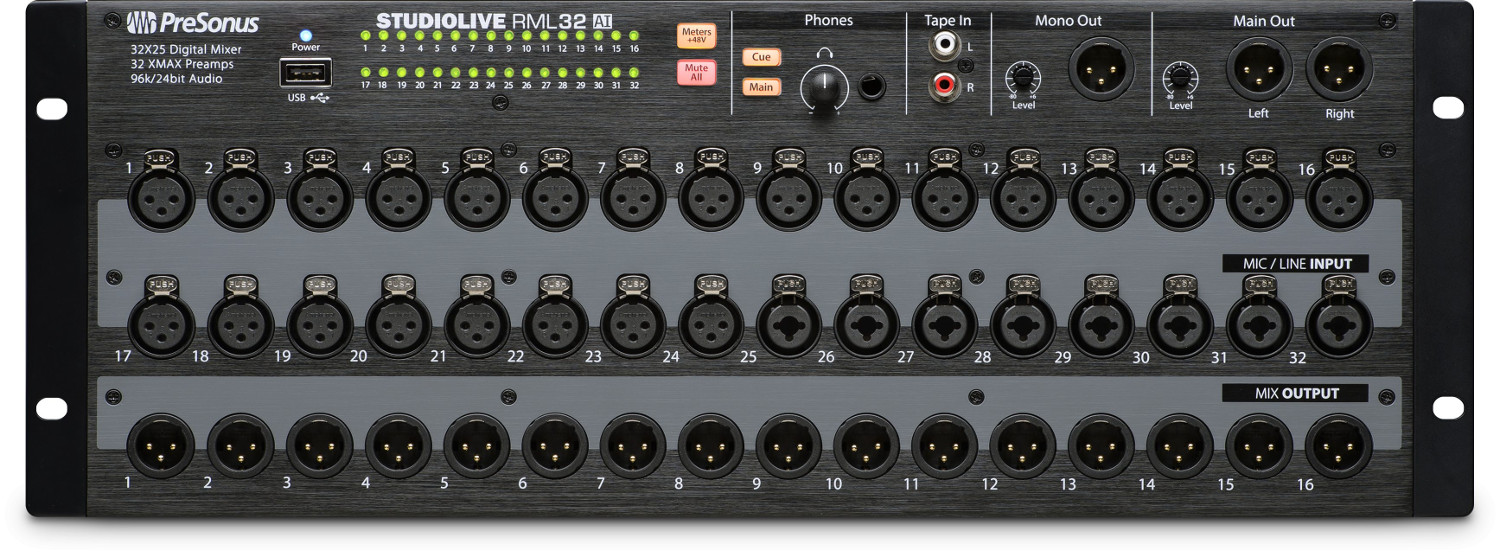

PreSonus StudioLive RML32AI
32-channel, Touch-Software Controlled, Rack-Mount Digital Mixer

OUR PART #  SLRML32AI

Our Price: $1,799.95
List Price: $2,299.95
You save 22%! (Low Price Guarantee)
In Stock

Recommended Accessories

The PreSonus StudioLive RML32AI is a 32-channel, touch-software controlled, rack-mount digital mixer.

Based on the StudioLive® AI-series engine and controlled with powerful, battle-ready UC Surface touch software for Mac®, Windows®, and iOS®, the StudioLive RML32AI rack-mount digital mixer is scalable and compact. It provides 24 XLR mic inputs, 8 combo mic/balanced line inputs, 16 line outs, and 3 main outs (left, right, and mono/center); recallable XMAX Class A mic preamps; 32 internal channels and 25 buses; a 52x34 FireWire 800 recording interface; 96 kHz operation; and extensive signal processing. Designed for live-sound mixing and studio recording, the RML32AI’s Active Integration technology includes direct Wi-Fi and Ethernet networking and tightly integrated Capture™ recording software with true Virtual Soundcheck mode and Studio One® Artist DAW for Mac and Windows, and a Nimbit account for online music promotion and distribution.

PreSonus StudioLive RML32AI Features:

  • Fully recallable, 32-channel digital mixer
  • 24 locking XLR inputs with recallable XMAX Class Amic preamps
  • 8 locking XLR mic/balanced TRS line inputs with recallable XMAX Class A mic preamps
  • 16 XLR line outputs on the front, mirrored on rear-panel DB25 jack
  • 3 XLR main outputs (left, right, mono) with analog trim pots
  • 32 LED meter grid
  • 25 mix buses: 16 aux mix buses, 3 main mix buses (left, right, mono), 4 internal FX buses (2 reverb, 2 delay), stereo solo bus
  • Fat Channel signal processing on all input channels and all buses, with4-band parametric EQ, compressor, gate, limiter, and more
    AVB cascading with a second RM or RML mixer forup to 64 channels
  • 52x34 direct digital FireWire recording interface
  • Complete solution: Includes UC Surface touch-controlsoftware for Mac, Windows and iPad; Capture™ live-recording software andStudio One® Artist DAW for Mac and Windows; compatible with free QMix®-AIpersonal monitoring control for iPhone®/iPod® touch
  • Integrated preamp and Fat Channel control from StudioOne
  • USB jack and included Wi-Fi LAN adapter provides wireless control
  • 2 FireWire S800 ports, 1 AVB Ethernet port (in option card slot), andS/PDIF digital output

PreSonus StudioLive RML32AI Specifications:

  • Microphone Preamp
    • Input Type: 24 locking XLR Female, balanced; 8 combo locking XLR mic-1/4” TRS line
    • Input Impedance: 1 kOhm
    • THD to Main Output (1 kHz at unity gain): 0.005%, +4 dBu, 20-20 kHz, unity gain, unwanted
    • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
    • Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
  • Tape Inputs
    • Type: RCA Female, unbalanced (stereo pair)
    • Maximum Input Level: +12 dBu
  • Main Outputs
    • Type: XLR Male, balanced
    • Rated Output Level: +24 dBu
    • Output Impedance: 100 Ohm
  • Mix Output:
    • Type: ¼” TRS Female, active stereo
    • Maximum Output: 100 mW/ch. @ 60 Ohm load
    • Frequency Response: 20 Hz – 20 kHz (+/- 0.5 dB)
    • THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwanted
    • S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwanted
  • Power/Environmental
    • Connector: IEC
    • Input-Voltage Range: 90 to 240 VAC
    • Power Requirements (continuous): 200 W
    • Recommended Ambient Operating Temperature: 0° to 40° Celsius (32° to 104° Fahrenheit)
  • Physical
    • Dimensions (H x W x D): 7 x 19 x 10.5" (17.78 x 48.26 x 26.67 cm)
    • Weight: 22 lbs (8.62 kg)
