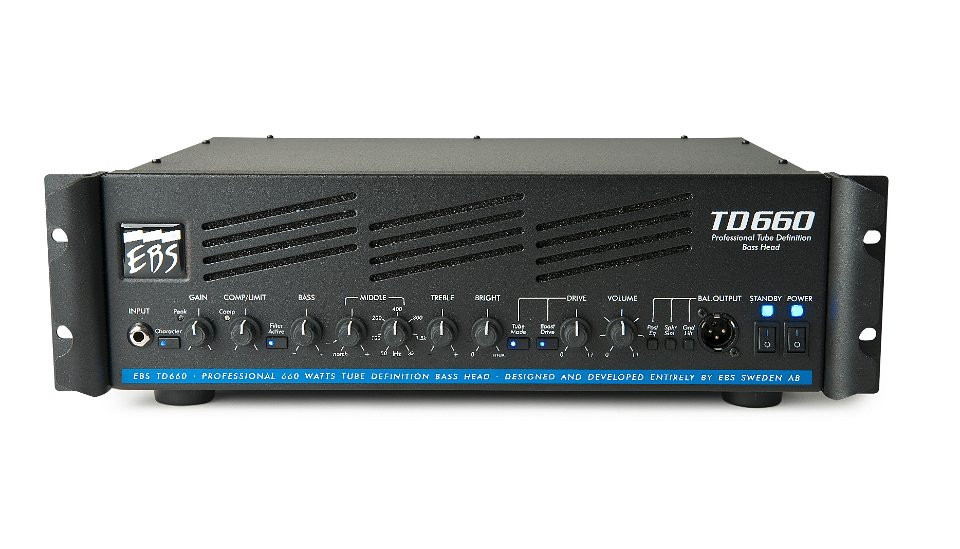

EBS EBS TD660
Bass Amp Head, 650 Watts

OUR PART #:  EBS-TD

The EBS TD660 is a versatile tube/solid state hybrid bass amp powered by 660W RMS making it ideally suited for large venues.
Learn More
Our Price: $1,499.95
List Price: $2,999.95
You save 50%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EBS EBS TD660
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The EBS TD660 is a versatile tube/solid state hybrid bass amp powered by 660W RMS making it ideally suited for large venues. The tube in the Drive section warms up the sound and adds a nice natural compression and character of a tube amp. The tube can be easily bypassed with the Tube Mode-button, which means if the tube breaks suddenly, you can use the amp safely by just disconnecting it. That gives you the option to run the head completely Solid State whenever you want too. The TD heads are very well suited for major tours and are the most common EBS amps with backline rental companies.

EBS TD660 Features:

  • Type: Switchable Solid State/Tube Hybrid
  • Built-in Compressor/Limiter
  • Unique tube suspension system
  • Extremely Powerful 4-band EQ
  • Serial and Parallel Effects loop with mix-level control
  • 9 volt Phantom Power System™
  • Character filter
  • Filter Remote Inputs
  • Balanced XLR-Out with optional speaker simulator and ground lift
  • Line and Tuner Out
  • Output Power: 660 W RMS @ 2 ohms

EBS TD660 Specifications:

  • Input Impedance: 1 Mohms
  • Frequency Response: 35 Hz - 20kHz
  • Maximum Compression Ratio (Compressor): 3:1
  • Tone Controls
    • Bass: +/-15 dB @ 100 Hz
    • Middle: +/- 12dB @ 50 - 3.000 Hz, Q=0.5
    • Treble: +/- 15 dB @ 6 kHz
    • Bright: -0/+12 dB @ 10 kHz
  • Drive Gain Range: 0 - 34 dB
  • Drive Type: Solid State or Tube (ECC 83)
  • Speaker Impedance: 2 - 8 ohms
  • Continuous Output Power
    • Dynamic Output Power: 660 W RMS @ 2 ohms
    • Continuous Output Power: 540 W RMS
  • Dimensions: 19" x 14" x 3U (48 x 36 x 13 cm)
  • Weight: 27 lbs (12 kg)

Click to download
