Product Overview

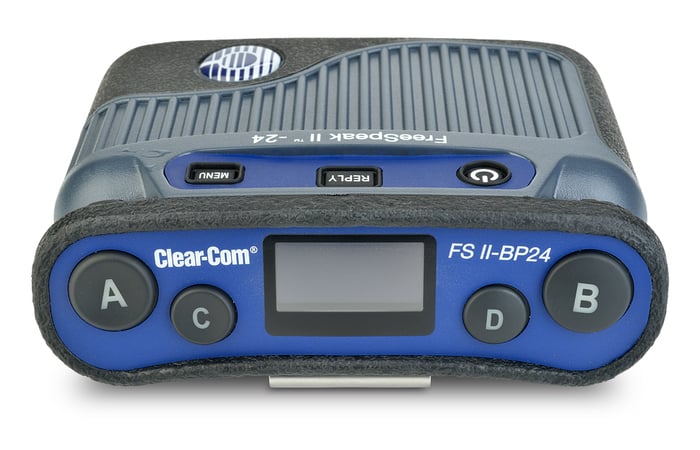

Operating in the ISM license-free 2.4GHz frequency range, Clear-Com's FreeSpeak™ II is a high-performance wireless solution designed for extensive communication in large-scale operations. The rugged water-resistant FreeSpeak II 2.4GHz beltpack (part no. FSII-BP24-X4-US) comes with an XLR-4M headset connector and features high audio bandwidth for superior intelligibility and listening comfort.
The FreeSpeak II 2.4GHz beltpack can connect to the FreeSpeak II base station or to Eclipse HX card frame matrices using the E-QUE-HX interface card. FreeSpeak II users can roam seamlessly between FSII-24-TCVR antennas over wide areas. The “Listen Again” feature allows users to replay earlier commands, eliminating the need to repeat communication or disturb productions.
NOTE: This belt pack is FCC approved for use in the USA and Canada and available for worldwide sales except EU countries.
Includes
- XLR-4M headset connector
- USB cable
- Belt clip
- BAT60 rechargeable Lithium Ion battery
Features
- Up to five communication routes per beltpack, each with a 5 or 10 character label
- Four programmable push buttons, two rotary encoders and a reply button
- Menu driven display, which can be partially or completely restricted
- Secure system – beltpacks are registered to a particular base station or Matrix
- Internal antenna – no antenna breakage or damage
- Long battery usage – typically 18 hours of continuous talk time
- Two battery options – rechargeable Li-Ion cells or disposable Alkaline AA Batteries
- Drop-in charging port with built-in USB battery and beltpack charging capability
- Strong metallic beltclip and shoulder strap points
- Over-the-air beltpack easy registration and regionalization
- Real-time monitoring of battery per beltpack
- “Listen Again” audio memory to replay last 15 seconds of audio
- Technician’s flash light on rear
Specifications
- Audio
- Audio Bandwidth: 200 Hz - 7.5 kHz
- No. of Full-Duplex Audio Paths: Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume
- Mode of Operation: Full duplex on all routes
- Level/Talk Controls: 4 pushbuttons, a reply button and 2 rotary controls
- Enter/Answer-Back Button: 1
- Radio
- Frequency Spectrum: 2.4-2.483 MHz for EU and US cellular auto roaming technology
- Modulation: GFSK, TDMA frame 10ms Full and Long slot
- Output power: (EU) 18-22dBm, (US) 18-20dBm
- Range: Up to 1475ft (450m) in good radio frequency conditions, 800 feet typical
- Battery: Li-Ion or 3 AA alkaline cells
- Battery Charging: Drop-in charger (AC60) or local USB
- Battery Life: 18+ hours with Li-Ion; 9 hours with 3 x Alkaline AA cells
- Headset Connector: 4-pin male, Clear-Com standard, options for 5-pin female and 7-pin male with PTT
- Microphone Type: Electret and Dynamic, selectable in beltpack menu
- Headset Limiter: Selectable from beltpack menu
- Environmental
- IP-65 water and dust resistance
- Operating Temperature Range: -67°F to +158°F (-55°C to +70°C)
- Dimensions
- Tapered design at largest points (DxWxH) : 5" x 1.5" x 3.75" (130 x 45 x 97 mm)
- Weight: 9 oz. (0.4 kg) including batteries
- Part #: FSII-BP24-X4-US
