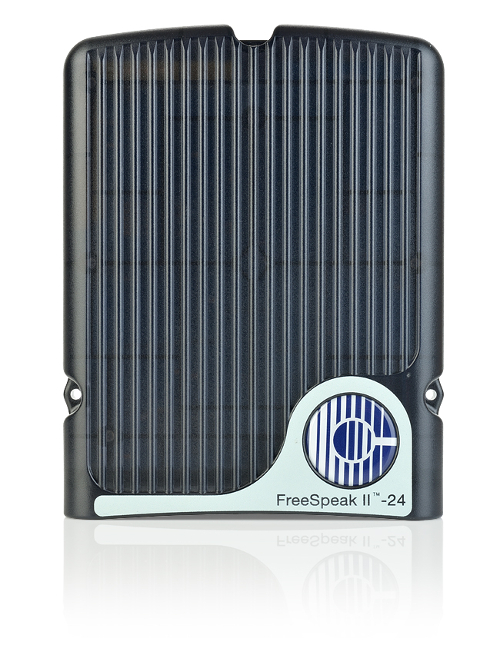

Clear-Com FSII-TCVR-24-US
FreeSpeak II 2.4 GHz Active Antenna

OUR PART #:  FSII-TCVR-24-US

The Clear-Com FreeSpeak II is a high performance wireless solution operating in the 1.9 and 2.4GHz frequency bands designed for extensive communication in large-scale operations.
Learn More
Our Price: $1,489.50
List Price: $1,655.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Clear-Com FSII-TCVR-24-US
Qty:
Please call for availability.

Similar Products

The Clear-Com FreeSpeak II is a high performance wireless solution operating in the 1.9 and 2.4GHz frequency bands designed for extensive communication in large-scale operations.

The Clear-Com FSII-TCVR-24 is an active transceiver antenna for the FSII-BP24 beltpacks. The antenna can be locally powered or powered via the FSII-BASE or matrix on shorter connections (less than 1000ft). The FSII-TCVR-24 has a mount for wall or microphone stand. A blue status light is visible from either mounting orientations. When mixed with FSII-TCVR-19 antennas, a single radio space can support up to 65-90 FreeSpeak II 1.9GHz or 2.4GHz beltpacks.

Clear-Com FSII-TCVR-24 Features:

  • Uses existing FSII base, E-QUE-HX cards, and PD2203splitter hardware
  • Supports 4 FSII-BP24 beltpacks per FSII-TCVR-24transciever
  • Supports systems with up to 65-90 beltpacks whenmixed with FSII-19-TCVRs
  • Blue LED status indicator on top and bottom
  • Mic stand or wall mount orientation (metric andimperial threads)
  • IP-65 rating for wet and dusty conditions

Clear-Com FSII-TCVR-24 Specifications:

  • Frequency Spectrum: 2.400-2.483MHz for EU and US Cellular auto roaming technology
  • Modulation: GFSK, TDMA frame 10ms Full slot
  • Output power: (EU): 18dBm, (RoW): 22dBm
  • Environmental:
    • IP-65 water and dust resistance
    • -67°F to +158°F (-55°C to +70°C)
  • Dimensions (D x W x H): 2 x 5.5 x 6.75" (52 x 134 x173 mm)
  • Weight: 7.0 oz (0.19 kg)
