Product Overview
The MIPRO MA-303BduHT (5A) is a full portable PA system that includes 2 wireless microphones and the PA amplifier/speaker unit. This particular system operates in the 5A frequency band: 506-530MHz; UHF Station range: 20-23.
MA-303 - 60-watt portable wireless dual-receiver PA system with Bluetooth® and a USB player/recorder. It features a 16-channel built-in wireless receiver, and 3.5mm line-in for external sources such as MP3, iPod, or CD player. It features a 1" tweeter and 5" woofer, plus it can be either AC or battery powered.
ACT-32H (5A) - Cardioid Condenser Handheld Transmitter Microphone (LCD) (5A Band).
ACT-32T (5A) - Miniature Body Pack Wireless Transmitter (5A Band).
MU-53HN - 10mm Uni-directional Sweat-resist Cardioid Headworn Microphone (Black). Works with ACT-32T (5A), above.
MIPRO MA-303BduHT (5A) Applications:
- School classrooms and halls
- Places of worship
- Presentations, seminars and meetings
- Day-care activities; playground duty
- Indoor/outdoor gatherings
- Paging
- Shopping center and trade show presentations and promotions
- Street performers
- Aerobic and fitness centers
- Recreational and social activities

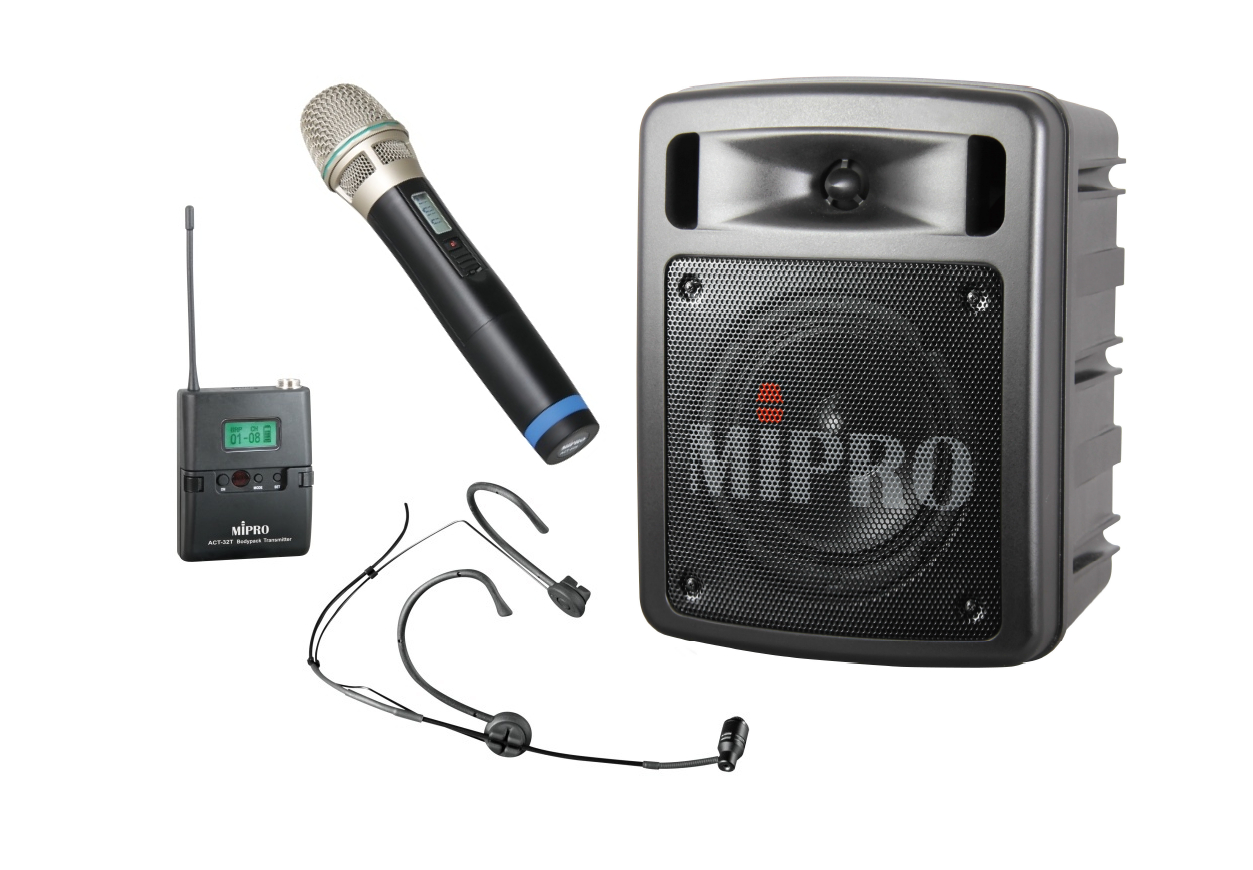

MIPRO MA-303BduHT (5A) Includes:
- MA-303 Portable Wireless PA Unit
- Wireless Handheld Microphone (ACT32H5A)
- Wireless Bodypack Transmitter (ACT32T5A)
- Headworn Microphone (MU53HN)
MIPRO MA-303BduHT (5A) Features:
- Portable PA, MA-303
- Powerful 60-watt output for loud, clear sound
- Ultra light, compact and portable
- Weighs just 6 lbs (2.7 kg)
- Powerful Class-D amplifier
- 2-way design (5" LF & 1" HF drivers)
- 2 power modes: AC & built-in lithium rechargeable battery; 10 hour standby time; 4 hour battery charge time
- Frequency range: 506-530MHz
- Built-in Dual wireless receivers with 16 auto-scannable frequencies
- One-touch Scan/ACT sync button for easy channel set-up
- Built-in Bluetooth music player for wireless audio streaming
- USB music player/recorder with LCD screen & remote control
- 3.5mm line input accepts an external MP3, iPod, or CD player
- Built-in one-button alarm/siren for warning of threats
- 4-level battery meter (25/50/75/100%) for accurate reading
- ACT-32H (5A) Handheld Transmitter
- Robust, lightweight plastic housing.
- The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound.
- Interchangeable capsule module with premium condenser or dynamic options for easy and fast changeovers.
- Premium condenser capsules exhibit high fidelity, wide dynamic range, fast transient responses, good feedback rejection, accurate sound image characteristics, transparent sound quality and withstand maximum SPL.
- Reversible end-cap allows power on/off switch being locked to avoid accidental power-off during performance.
- Impact-resistant battery compartment holds 2 AA batteries.
- Backlit LCD displays various parameters and status.
- Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO's patented ACT™ function.
- Patented "built-in" antenna design.
- Interchangeable colored rings for microphone channel identification on stage.
- High-efficiency circuitry design provides more than 16 hours of operation from 2 AA batteries (depending on the battery quality).
- ACT-32T (5A) Bodypack Transmitter
- Lightweight, compact size with sturdy plastic housing.
- On the top features mute switch, mini-XLR connector and antenna.
- Backlit LCD displays various parameters and status.
- Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
- Mute button with remote-control jack for easy activation of mute function.
- Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO's patented ACT™ function.
- Can directly match to high-low input impedance for microphone or guitar without switching.
- Mini-XLR input with secure screw lock connector for lavaliere / headworn mics and guitar.
- Adjustable belt clip allows wearing transmitter in up or down position.
- High-efficiency circuitry design provides 12~14 hours of operation from 2 AA batteries (depending on the battery quality).
MIPRO MA-303BduHT (5A) Specifications:
- Manufacturer code: MA303BDUHT5A
- Portable PA, MA-303
- Max. Power Output: 60 Watts
- Amplifier: Class D
- Sensitivity: Typical: 92 dB ; Maximum: 102 dB
- T.H.D.: < 1%
- Frequency Response: 50 Hz ~ 18 kHz
- Speaker: 1" Tweeter and 5" Woofer
- Audio Inputs:
- Wired: 6.3mm (1/4")
- Line-In: 3.5mm (1/8")
- Audio Output: 3.5mm (1/8")
- Installation: Microphone stand, tabletop
- Power Supply:
- AC: External 100-240V AC switching power supply
- DC and Battery: 14.8V/2.6AH rechargeable lithium battery
- Charge Time: Up to 4 hours (automatic charging management)
- Standby Time: (MA-303du) Up to 9 hours
- Battery Indicator: 4-level indicator (25/50/75/100%)
- Color: Black or white option
- Dimensions (W x H x D): 8.3" x 11" x 6.5" (210 x 276 x 165mm)
- Weight (battery included): (MA-303du) Approx. 6.2 lbs (2.8 kg)
- Wireless System:
- Receiver Channel: Dual
- Frequency Range: UHF 480 ~ 934 MHz
- Bandwidth: 24 MHz
- Preset Channels: 16
- Channel Set-up: Scan & ACT sync
- Antenna: Built-in
- Audio Player:
- Built-in 2.0 USB Port: Yes
- USB Play and Record: LCD displays track name, number, time, recording status
- Patents and Approvals: Patented. Telecom and safety regulations approved.
Note:
For further information and specifications, please refer to items under the "DOCUMENTATION" tab, above.
