Elite Core EC-PMA-SP Personal Headphone Amplifier with 18' Cable and Stand Adapter

OUR PART #: EC-PMA-SP MFR #: EC-PMA-SP

Copied to clipboard

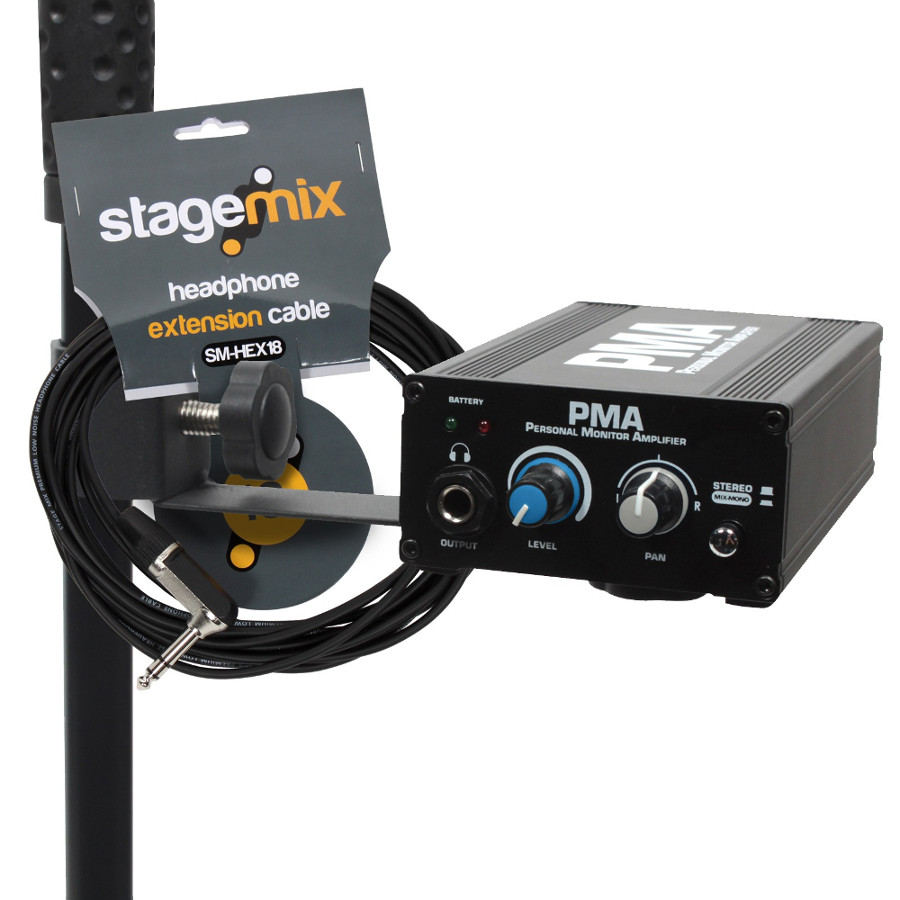

Elite Core EC-PMA-SP Personal Headphone Amplifier With 18' Cable And Stand Adapter Image 1
Elite Core EC-PMA-SP Personal Headphone Amplifier With 18' Cable And Stand Adapter
Our Price: $141.99

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$4/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Delivers loud and clear monitoring through headphones.

The Elite Core PMA is a high-powered stereo or mix-mono personal monitor headphone amp designed to provide loud and clear monitoring through headphones or earphones. Signals from AUX outs are connected to the inputs of the PMA via combo XLR/TRS jacks. Headphones or earphones are powered by a strong 50mW per channel amplifier. The PMA can be conveniently mounted onto standard mic stand threads. Powered by the included 9V adapter, or by a 9V battery.

Includes

  • EC-PMA Headphone Amp
  • SA001 Stand Adapter
  • EC-HEX18 Extension Cable

Features

  • 2 direct symmetric combo XLR/TRS inputs
  • Stereo or mix-mono mode selection
  • Level & Pan controls
  • Sturdy aluminum case
  • Mountable on standard mic stand

Specifications

  • Dimensions: 170 x 93 x 47 mm
  • Net Weight: 0.4 kg
  • Input Jacks: 2 x Combo XLR/TRS
  • Output Jack: 1/4" Stereo
  • Frequency Response: 30 Hz - 20 kHz +/- 2 dB
  • Min Headphone Impedance: 16 ohms per side
  • Input Impedance: 15 Kohm
  • Nominal Input Level: 0 dBv
  • Maximum Input Level: + 4 dBV
  • Limit Input Level: + 5 dBv
  • Maximum Output Power (into 20ohm): 50 mW per channel
  • Maximum Operating Current: 40 mA
  • Power Supply: 9V Battery
  • DC Input Socket: DC 9V (PIN - / RING +)
